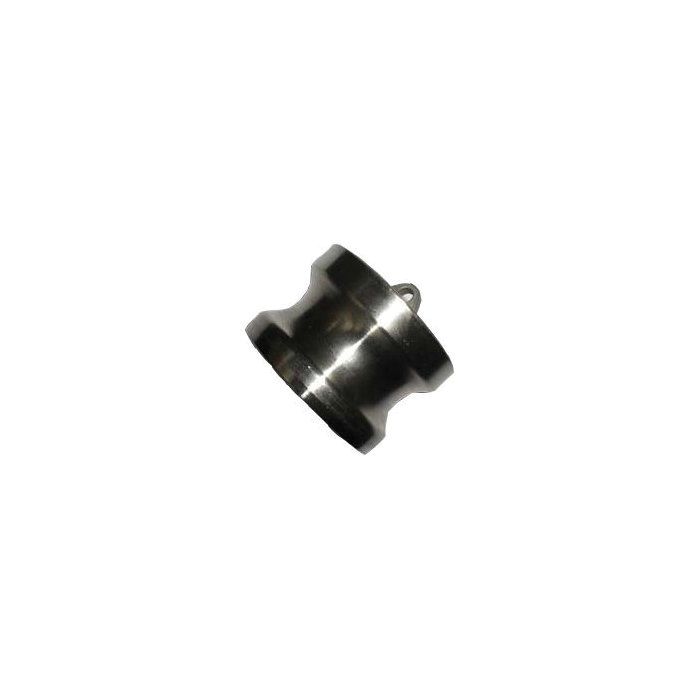

Stainless Steel Cam & Groove Adapter, 2-1/2 Inch Dust Plug

Description & Features

This 2-1/2 inch stainless steel cam and groove adapter is a dust plug designed for use with liquids. It is constructed from 316 stainless steel for the body, stainless steel cam levers, pins, rings, and safety clips, along with Buna-N seals.

To couple, slide the adapter into the coupler and press the cam levers down. To uncouple, lift the cam arms and remove the adapter from the coupler. The Stainless Steel Cam & Groove Adapter, 2-1/2 Inch Dust Plug interchanges with all products produced to standard A-A-59326 or DIN 2828. It has a pressure rating of 150 PSI.

SKU: SSDP-250

Supplier Part Number (MPN): SSDP-250

Alternate Part Numbers: C1MP42

Specifications

Brand Fuzhou Hengsheng Hardware	Connection Size 1 2-1/2 in	Connection Type Type DP	Connection Type 1 Type DP	Dimension Standards AA-59326, DIN 2828	Fitting Type Dust Plug	Material Stainless Steel	Material Construction 316 Stainless Steel	Sg Operation To Couple - Slide the Adapter into the Coupler and with Normal Hand Pressure, Press the Cam Levers Down, to Uncouple - Lift the Cam Arms and Remove the Adapter from the Coupler	Sg Safety Pin Feature Female Couplers with This Feature Have Cast-in Lugs That Allow Safety Pins to be Attached Once the Lugs are Passed Through Slots in the Special Cam Lever Arms, These Pins Prevent the Coupler from Being Uncoupled Until They are Removed	Sg Specifications Interchangeability - Interchanges with All Products Produced to Standard A-A-59326 (Superseding Mil-C-27487F) or DIN 2828

Product Questions & Answers (1)

Question by: Sherry H on Jun 21, 2025, 7:40 PM

What kind of pressure can this plug handle?

Answer by: Customer Support on Jun 23, 2025, 7:14 PM

These 2-1/2 inch plugs are rated to 150 PSI.
