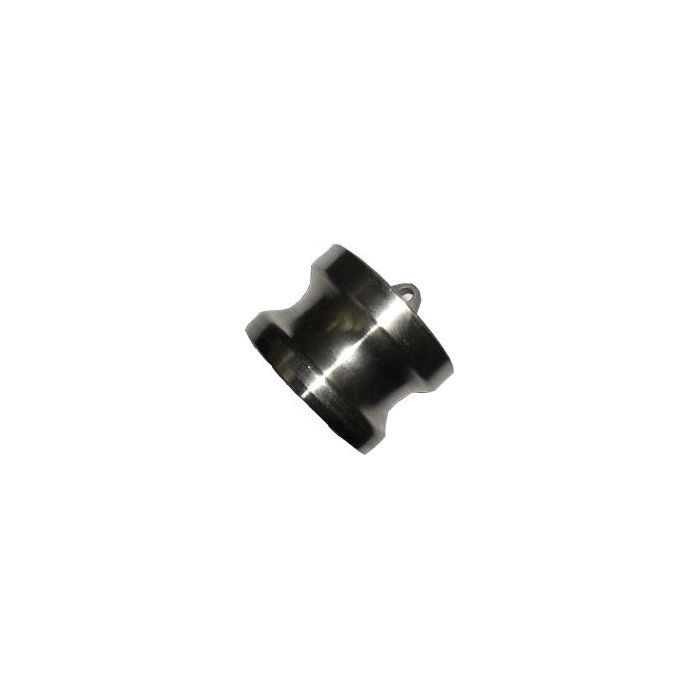

Stainless Steel Cam & Groove Adapter, 4 Inch Dust Plug

Description & Features

Constructed entirely from 316 stainless steel, body, cam levers, pins, rings, and safety clips, this 4-inch dust plug is built for corrosion resistance in demanding liquid transfer environments. Buna-N seals are included as standard. The Stainless Steel Cam & Groove Adapter, 4 Inch Dust Plug is designed to close off the female coupler end when not in use, keeping the connection point protected between uses.

Rated to 150 PSI for the 4-inch size, this fitting conforms to standard A-A-59326 (superseding Mil-C-27487F) and DIN 2828, making it interchangeable with other manufacturers' cam and groove products produced to those standards. Coupling and uncoupling require only hand pressure, slide the adapter into the coupler and press the cam levers down to connect; lift the cam arms to release. Intended for liquid service only; not rated for compressed air or steam.

SKU: SSDP-400

Supplier Part Number (MPN): SSDP-400

Alternate Part Numbers: C1MP44

Specifications

Brand Sunrise	Connection Size 1 4 mm	Connection Type Type DP	Connection Type 1 Type DP	Dimension Standards AA-59326, DIN 2828	Fitting Type Dust Plug	Material Stainless Steel	Material Construction 316 Stainless Steel	Sg Operation To Couple - Slide the Adapter into the Coupler and with Normal Hand Pressure, Press the Cam Levers Down, to Uncouple - Lift the Cam Arms and Remove the Adapter from the Coupler	Sg Safety Pin Feature Female Couplers with This Feature Have Cast-in Lugs That Allow Safety Pins to be Attached Once the Lugs are Passed Through Slots in the Special Cam Lever Arms, These Pins Prevent the Coupler from Being Uncoupled Until They are Removed	Sg Specifications Interchangeability - Interchanges with All Products Produced to Standard A-A-59326 (Superseding Mil-C-27487F) or DIN 2828

Similar Products

Model Number	Size	Price	Action
SSDP-100 Stainless Cam & Groove Plug	1
SSDP-150 Stainless Cam & Groove Plug	1-1/2
SSDP-200 Stainless Cam & Groove Plug	2

Product Questions & Answers (1)

Question by: Travis B on Nov 22, 2025, 10:17 AM

Will this dust plug work with any standard cam and groove fitting, or do I need a specific brand?

Answer by: Customer Support on Nov 23, 2025, 2:13 PM

It interchanges with any cam and groove fitting made to A-A-59326 (superseding MIL-C-27487F) or DIN 2828 standards.
