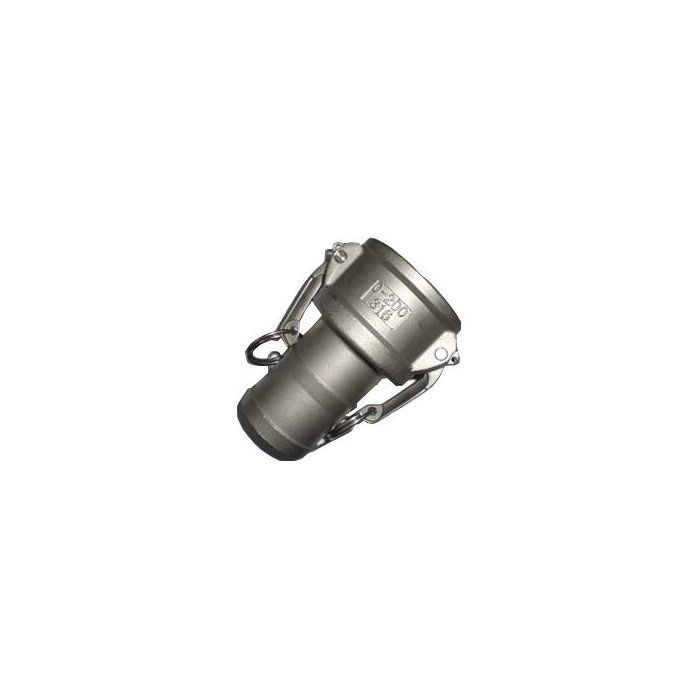

Stainless Steel Cam & Groove Coupler, Female Half, 1 Inch Hose Shank

Description & Features

This robust cam and groove coupler fabricated from 316 stainless steel offers superior corrosion resistance and is designed for liquid applications only. Manufactured by Sunrise Hose it features stainless steel cam levers pins rings and safety clips for enhanced reliability.

With a user-friendly design connect the adapter by sliding it into the coupler and pressing the cam levers down with normal hand pressure. To disconnect simply lift the cam arms and remove the adapter.

The addition of a safety pin feature ensures secure connections by preventing accidental uncoupling. The cast-in lugs allow safety pins to be attached once passed through slots in the special cam lever arms.

Interchangeability is achieved with products adhering to A-A-59326 standards providing flexible versatility in various industrial settings. This model has a pressure rating of 150 PSI for sizes 1/2 to 4 and 75 PSI for sizes 5 to 8.

**Supplier Part Number:** SSC-100

Specifications

Brand Sunrise	Connection Size 1 1 in	Connection Size 2 1 in	Connection Type Female Coupler, Hose Shank	Connection Type 1 Female Coupler	Connection Type 2 Hose Shank	Dimension Standards AA-59326, DIN 2828	Fitting Type Coupler	Material Stainless Steel	Material Construction 316 Stainless Steel	Seal Material Nitrile	Sg Operation To Couple - Slide the Adapter into the Coupler and with Normal Hand Pressure, Press the Cam Levers Down, to Uncouple - Lift the Cam Arms and Remove the Adapter from the Coupler	Sg Safety Pin Feature Female Couplers with This Feature Have Cast-in Lugs That Allow Safety Pins to be Attached Once the Lugs are Passed Through Slots in the Special Cam Lever Arms, These Pins Prevent the Coupler from Being Uncoupled Until They are Removed	Sg Specifications Interchangeability - Interchanges with All Products Produced to Standard A-A-59326 (Superseding Mil-C-27487F) or DIN 2828

Similar Products

Model Number	Size	Features	Seal Material
SSC-150 Stainless Cam & Groove Shank Coupler	1-1/2	Safety Clip	Yes
SSC-200 Stainless Cam & Groove Shank Coupler	2	Safety Clip	Yes
SSC-300 Stainless Cam & Groove Shank Coupler	3	Safety Clip	Yes
SSC-400 Stainless Cam & Groove Shank Coupler	4	Safety Clip	Yes
SSC-600 Stainless Cam & Groove Shank Coupler	6	Safety Clip	Yes

Product Questions & Answers (3)

Question by: Ronnie P on Oct 16, 2025, 12:27 PM

safety pins come standard on this thing, or is that something i gotta add separate?

Answer by: Customer Support on Oct 17, 2025, 9:09 PM

Cast-in lugs are built right into the female coupler body, and the safety pin feature works by passing those lugs through slots in the cam lever arms once the connection is made. The pins themselves are included as part of the fitting. Once in place, the coupler physically cannot be uncoupled until the pins are removed, which adds a real layer of security in applications where accidental disconnection would be a problem.

Question by: Wade A on Jul 4, 2025, 8:42 AM

What size is this camlock?

Answer by: Customer Support on Jul 6, 2025, 6:16 AM

This stainless steel cam and groove coupler has a 1-inch hose shank.

Question by: Curt C on Aug 7, 2025, 8:26 PM

got a 1 inch hose, is this the female camlock end with the hose shank or am i lookin at the wrong piece

Answer by: Customer Support on Aug 9, 2025, 6:28 AM

For a 1 inch hose, you are looking at the female half cam and groove coupler with a 1 inch hose shank. It is the C style coupler, made to accept the matching cam and groove adapter by sliding it in and closing the cam levers.
