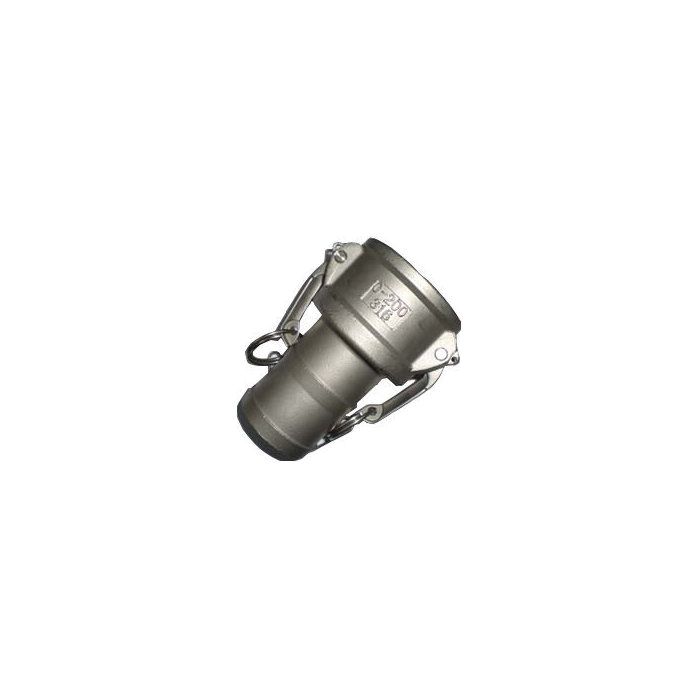

Stainless Steel Cam & Groove Coupler, Female Half, 1-1/2 Inch Hose Shank

Description & Features

Constructed from 316 stainless steel this cam & groove coupler is ideal for industrial environments requiring corrosion resistance. It features a 1-1/2 inch hose shank and is designed specifically for liquid applications.

The coupler includes a safety clip for secure connections and features a female camlock that integrates smoothly with minimal hand pressure. The safety pin system with cast-in lugs ensures that the coupler remains securely fastened preventing accidental disconnections.

Seals made of Buna-N guarantee dependable performance under varying conditions. This coupler interchanges with standard A-A-59326 and DIN 2828 products supporting pressure ratings of up to 150 PSI for sizes 1/2 to 4 and 75 PSI for sizes 5 to 8.

Avoid usage with compressed air or steam service.

MPN: SSC-150

Supplier Part Number: SSC-150

Specifications

Brand Sunrise	Connection Size 1 1-1/2 in	Connection Size 2 1-1/2 in	Connection Type Female Coupler, Hose Shank	Connection Type 1 Female Coupler	Connection Type 2 Hose Shank	Dimension Standards AA-59326, DIN 2828	Fitting Type Coupler	Material Stainless Steel	Material Construction 316 Stainless Steel	Seal Material Nitrile	Sg Operation To Couple - Slide the Adapter into the Coupler and with Normal Hand Pressure, Press the Cam Levers Down, to Uncouple - Lift the Cam Arms and Remove the Adapter from the Coupler	Sg Safety Pin Feature Female Couplers with This Feature Have Cast-in Lugs That Allow Safety Pins to be Attached Once the Lugs are Passed Through Slots in the Special Cam Lever Arms, These Pins Prevent the Coupler from Being Uncoupled Until They are Removed	Sg Specifications Interchangeability - Interchanges with All Products Produced to Standard A-A-59326 (Superseding Mil-C-27487F) or DIN 2828

Similar Products

Model Number	Size	Features	Seal Material
SSC-100 Stainless Cam & Groove Shank Coupler	1	Safety Clip	Yes
SSC-200 Stainless Cam & Groove Shank Coupler	2	Safety Clip	Yes
SSC-300 Stainless Cam & Groove Shank Coupler	3	Safety Clip	Yes
SSC-400 Stainless Cam & Groove Shank Coupler	4	Safety Clip	Yes
SSC-600 Stainless Cam & Groove Shank Coupler	6	Safety Clip	Yes

Product Questions & Answers (2)

Question by: Vince C on Aug 16, 2025, 6:57 AM

Safety pins on female camlocks always confuse me a little -- how exactly do they work on this one to keep it from coming loose?

Answer by: Customer Support on Aug 18, 2025, 6:04 AM

Cast-in lugs on the coupler body are the key. Once you've coupled the adapter and pressed the cam levers down, those lugs line up with slots in the cam lever arms. You slide a safety pin through and that pin physically blocks the levers from lifting. Nothing can uncouple it until you pull the pin out first. Good setup for lines where an accidental disconnect would cause a real mess.

Question by: Kent H on Apr 30, 2025, 10:16 AM

Hey, will this thing actually hold up if I'm runnin' somethin' a little corrosive through it?

Answer by: Customer Support on May 2, 2025, 8:17 AM

This coupler's made from 316 stainless steel, so it's a good choice for situations where you need resistance to corrosion.
