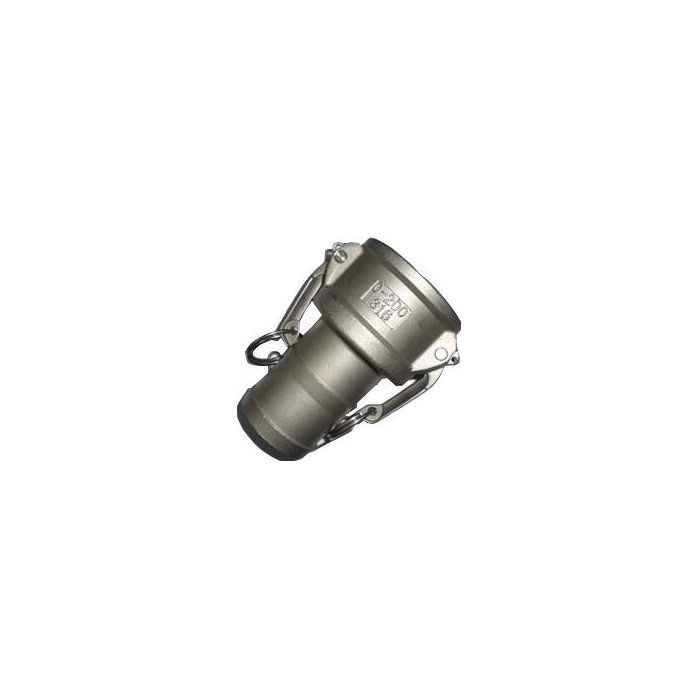

Stainless Steel Cam & Groove Coupler, Female Half, 2 Inch Hose Shank

Description & Features

Engineered for industrial uses this robust coupler is manufactured by Sunrise Hose using 316 stainless steel. It features a 2-inch hose shank and is specifically designed for liquid applications. Crafted for dependability it includes stainless steel cam levers pins rings and a safety clip providing a secure connection. Seals are made from Buna-N for enhanced durability. This coupler interchanges with products meeting A-A-59326 or DIN 2828 standards. Note that it is not suitable for compressed air or steam services. Coupling is user-friendly: insert the adapter into the coupler and lower the cam levers. To disconnect lift the cam arms and remove the adapter.

Supplier Part Number: SSC-200

MPN: C1MP25

Specifications

Brand Sunrise	Connection Size 1 2 in	Connection Size 2 2 in	Connection Type Female Coupler, Hose Shank	Connection Type 1 Female Coupler	Connection Type 2 Hose Shank	Dimension Standards AA-59326, DIN 2828	Fitting Type Coupler	Material Stainless Steel	Material Construction 316 Stainless Steel	Seal Material Nitrile	Sg Operation To Couple - Slide the Adapter into the Coupler and with Normal Hand Pressure, Press the Cam Levers Down, to Uncouple - Lift the Cam Arms and Remove the Adapter from the Coupler	Sg Safety Pin Feature Female Couplers with This Feature Have Cast-in Lugs That Allow Safety Pins to be Attached Once the Lugs are Passed Through Slots in the Special Cam Lever Arms, These Pins Prevent the Coupler from Being Uncoupled Until They are Removed	Sg Specifications Interchangeability - Interchanges with All Products Produced to Standard A-A-59326 (Superseding Mil-C-27487F) or DIN 2828

Similar Products

Model Number	Size	Features	Seal Material
SSC-100 Stainless Cam & Groove Shank Coupler	1	Safety Clip	Yes
SSC-150 Stainless Cam & Groove Shank Coupler	1-1/2	Safety Clip	Yes
SSC-300 Stainless Cam & Groove Shank Coupler	3	Safety Clip	Yes
SSC-400 Stainless Cam & Groove Shank Coupler	4	Safety Clip	Yes
SSC-600 Stainless Cam & Groove Shank Coupler	6	Safety Clip	Yes

Product Questions & Answers (1)

Question by: Scott B on May 15, 2025, 6:02 PM

What kind of liquids can this handle? Just want to make sure it'll work for my application.

Answer by: Customer Support on May 17, 2025, 5:23 PM

It's designed for use with liquids, but it's really important to check with us so we can give you a specific recommendation for what you're planning to use it for. Also, this should never be used with compressed air or steam.
