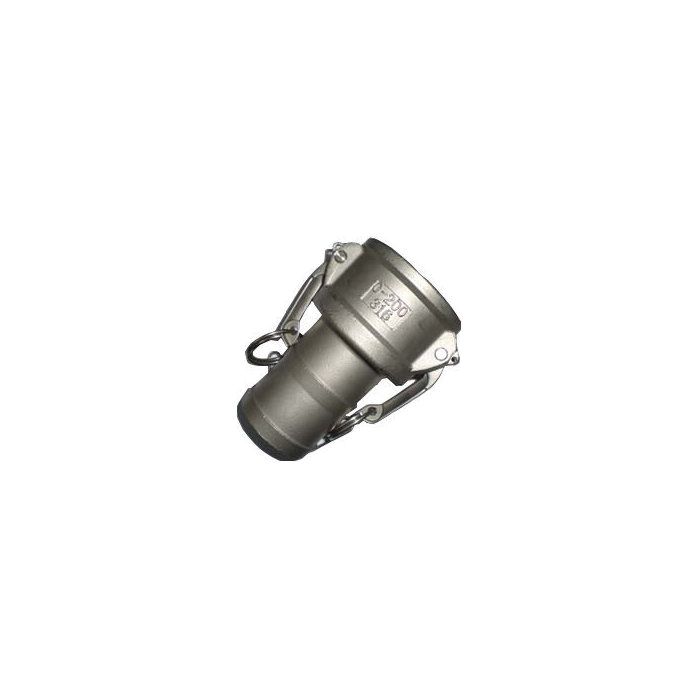

Stainless Steel Cam & Groove Coupler, Female Half, 3 Inch Hose Shank

Description & Features

The Stainless Steel Cam & Groove Coupler Female Half 3 Inch Hose Shank includes a 3-inch hose shank for seamless integration with industrial hoses. Crafted from high-quality 316 stainless steel it ensures resistance to corrosion and wear.

Manufactured by CAN Industrial Inc this coupler meets the A-A-59326 standard ensuring compatibility with similar couplers. Note that sizes 1/2 and 8 may have interchangeability issues with other brands.

Featuring stainless steel cam levers pins rings and safety clips this coupler includes a reliable safety pin feature. These components prevent accidental disconnection ensuring secure liquid transfer.

To couple slide the adapter into the coupler and press the cam levers down. For uncoupling lift the cam arms and remove the adapter.

Pressure ratings support up to 150 PSI for sizes up to 4 inches and 75 PSI for sizes ranging from 5 to 8 inches. The inclusion of Buna-N seals offers enhanced sealing performance for demanding applications.

Manufacturer: Sunrise Hose

Supplier Part Number: SSC-300

Specifications

Brand Sunrise	Connection Size 1 3 in	Connection Size 2 3 in	Connection Type Female Coupler, Hose Shank	Connection Type 1 Female Coupler	Connection Type 2 Hose Shank	Dimension Standards AA-59326, DIN 2828	Fitting Type Coupler	Material Stainless Steel	Material Construction 316 Stainless Steel	Seal Material Nitrile	Sg Operation To Couple - Slide the Adapter into the Coupler and with Normal Hand Pressure, Press the Cam Levers Down, to Uncouple - Lift the Cam Arms and Remove the Adapter from the Coupler	Sg Safety Pin Feature Female Couplers with This Feature Have Cast-in Lugs That Allow Safety Pins to be Attached Once the Lugs are Passed Through Slots in the Special Cam Lever Arms, These Pins Prevent the Coupler from Being Uncoupled Until They are Removed	Sg Specifications Interchangeability - Interchanges with All Products Produced to Standard A-A-59326 (Superseding Mil-C-27487F) or DIN 2828

Similar Products

Model Number	Size	Features	Seal Material
SSC-100 Stainless Cam & Groove Shank Coupler	1	Safety Clip	Yes
SSC-150 Stainless Cam & Groove Shank Coupler	1-1/2	Safety Clip	Yes
SSC-200 Stainless Cam & Groove Shank Coupler	2	Safety Clip	Yes
SSC-400 Stainless Cam & Groove Shank Coupler	4	Safety Clip	Yes
SSC-600 Stainless Cam & Groove Shank Coupler	6	Safety Clip	Yes

Product Questions & Answers (3)

Question by: Hank R on Jan 2, 2026, 5:37 PM

What kind of pressure can this handle, just curious?

Answer by: Customer Support on Jan 4, 2026, 10:46 AM

These couplers can handle up to 150 PSI for the sizes up to 4 inches. For the 5- to 8-inch sizes, they're rated for 75 PSI.

Question by: Hank W on Jun 24, 2025, 6:27 PM

safety pins on these, how do they actually work? do i gotta do something special to get em attached or do they just slide in once its coupled up?

Answer by: Customer Support on Jun 26, 2025, 6:36 AM

Once you've slid the adapter in and pressed the cam levers down, the female coupler has cast-in lugs that line up with slots in the cam lever arms. You just pass the lugs through those slots and drop the safety pins in. After that the coupler won't uncouple until you pull the pins back out. No tools needed, it's all hand operation.

Question by: Lee R on May 28, 2025, 6:44 AM

got a 3 inch hose, does this one just shove on and clamp or is it threaded somehow?

Answer by: Customer Support on May 29, 2025, 9:57 AM

With the 3 inch hose shank, it is meant to slide into a 3 inch industrial hose and be secured using the hose attachment method recommended for that hose. It is not a threaded end, it is a hose shank connection.
