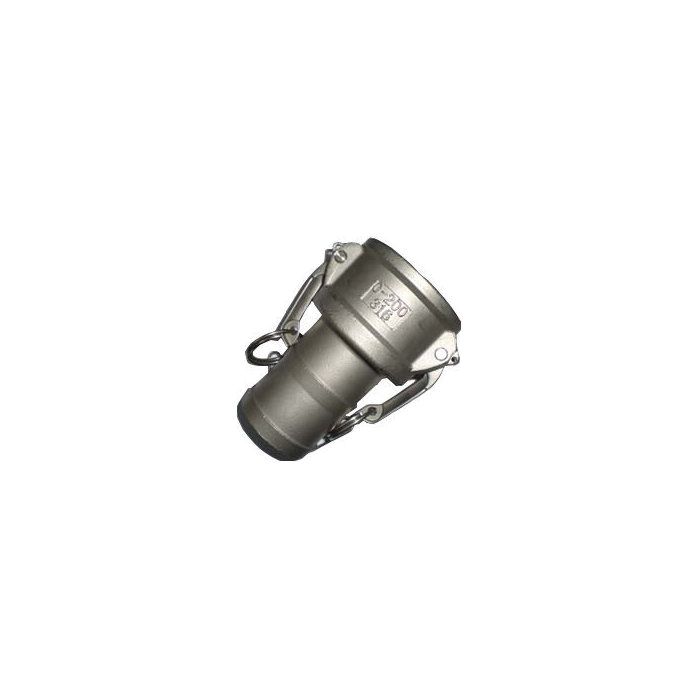

Stainless Steel Cam & Groove Coupler, Female Half, 4 Inch Hose Shank

Description & Features

Engineered from premium 316 stainless steel this coupler guarantees robust performance and extended service life. The unit incorporates stainless steel cam levers pins rings and safety clips ensuring a secure and steadfast connection.

Specially designed for liquid transfer applications this 4-inch hose shank coupler incorporates a safety clip for enhanced security. Equipped with Buna-N seals it provides excellent resistance to a variety of chemicals and fluids.

Complying with standard A-A-59326 this coupler is compatible with other standardized products. The coupling process is straightforwardslide the adapter into the coupler and press the cam levers down using normal hand pressure. Uncoupling is just as easy: lift the cam arms and remove the adapter.

Supplier Part Number: SSC-400

Specifications

Brand Sunrise	Connection Size 1 4 mm	Connection Size 2 4 mm	Connection Type Female Coupler, Hose Shank	Connection Type 1 Female Coupler	Connection Type 2 Hose Shank	Dimension Standards AA-59326, DIN 2828	Fitting Type Coupler	Material Stainless Steel	Material Construction 316 Stainless Steel	Seal Material Nitrile	Sg Operation To Couple - Slide the Adapter into the Coupler and with Normal Hand Pressure, Press the Cam Levers Down, to Uncouple - Lift the Cam Arms and Remove the Adapter from the Coupler	Sg Safety Pin Feature Female Couplers with This Feature Have Cast-in Lugs That Allow Safety Pins to be Attached Once the Lugs are Passed Through Slots in the Special Cam Lever Arms, These Pins Prevent the Coupler from Being Uncoupled Until They are Removed	Sg Specifications Interchangeability - Interchanges with All Products Produced to Standard A-A-59326 (Superseding Mil-C-27487F) or DIN 2828

Similar Products

Model Number	Size	Features	Seal Material
SSC-100 Stainless Cam & Groove Shank Coupler	1	Safety Clip	Yes
SSC-150 Stainless Cam & Groove Shank Coupler	1-1/2	Safety Clip	Yes
SSC-200 Stainless Cam & Groove Shank Coupler	2	Safety Clip	Yes
SSC-300 Stainless Cam & Groove Shank Coupler	3	Safety Clip	Yes
SSC-600 Stainless Cam & Groove Shank Coupler	6	Safety Clip	Yes

Product Questions & Answers (2)

Question by: Eddie W on Nov 15, 2025, 10:23 AM

Can this thing handle chemicals okay? I need it for transferring some pretty nasty stuff.

Answer by: Customer Support on Nov 16, 2025, 8:51 PM

This coupler is equipped with Buna-N seals, which offer excellent resistance to a variety of chemicals and fluids.

Question by: Sheila R on Jan 7, 2026, 6:11 PM

got a 4 inch camlock setup already. will this female shank coupler interchange with other brands or am i askin for trouble

Answer by: Customer Support on Jan 9, 2026, 6:50 AM

As long as your other parts are made to the A-A-59326 standard (also known as the updated spec that replaced MIL-C-27487F) or DIN 2828, this 4 inch female cam and groove coupler is meant to interchange. At 4 inch it falls in the size range where the standard interchange is expected.
