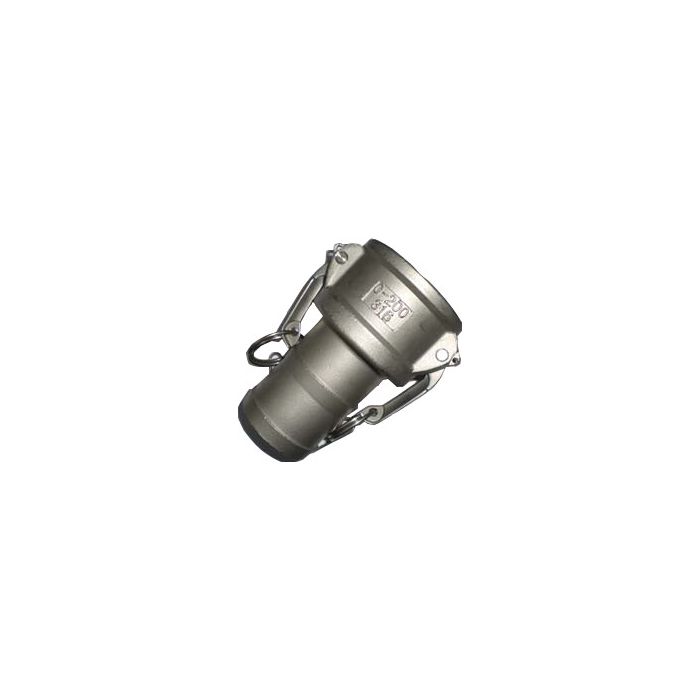

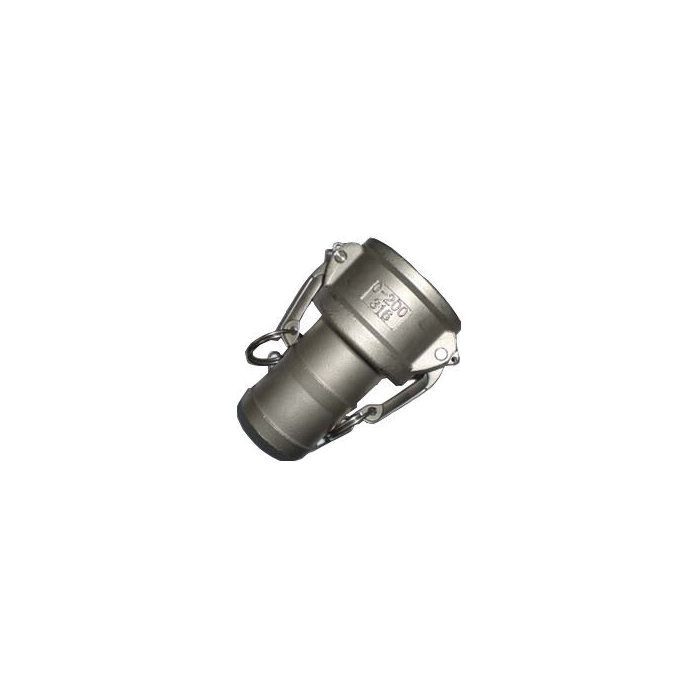

Stainless Steel Cam & Groove Coupler, Female Half, 6 Inch Hose Shank

Description & Features

Constructed entirely from 316 stainless steel, body, cam levers, pins, rings, and safety clips, this 6-inch hose shank coupler delivers corrosion resistance suited to demanding liquid transfer applications. The Stainless Steel Cam & Groove Coupler, Female Half, 6 Inch Hose Shank connects using a simple lever-action mechanism: slide the adapter into the coupler and press the cam levers down to couple; lift the arms to release. No tools required for either action.

Rated at 75 PSI for the 6-inch size, this fitting conforms to standard A-A-59326 (superseding Mil-C-27487F) and DIN 2828, ensuring broad interchangeability with other compliant manufacturers' products. Buna-N seals are included as standard. A safety clip feature is incorporated into the cam lever design, cast-in lugs accept safety pins that lock the coupler in the coupled position until deliberately removed, adding a layer of security in active transfer lines. Designed for liquid service only; not rated for compressed air or steam.

SKU: SSC-600

Supplier Part Number (MPN): SSC-600

Alternate Part Numbers: C1MP29

Specifications

Brand Sunrise	Connection Size 1 6 mm	Connection Size 2 6 mm	Connection Type Female Coupler, Hose Shank	Connection Type 1 Female Coupler	Connection Type 2 Hose Shank	Dimension Standards AA-59326, DIN 2828	Fitting Type Coupler	Material Stainless Steel	Material Construction 316 Stainless Steel	Maximum Operating Pressure 75 psi	Seal Material Nitrile	Sg Operation To Couple - Slide the Adapter into the Coupler and with Normal Hand Pressure, Press the Cam Levers Down, to Uncouple - Lift the Cam Arms and Remove the Adapter from the Coupler	Sg Safety Pin Feature Female Couplers with This Feature Have Cast-in Lugs That Allow Safety Pins to be Attached Once the Lugs are Passed Through Slots in the Special Cam Lever Arms, These Pins Prevent the Coupler from Being Uncoupled Until They are Removed	Sg Specifications Interchangeability - Interchanges with All Products Produced to Standard A-A-59326 (Superseding Mil-C-27487F) or DIN 2828

Similar Products

Model Number	Size	Features	Seal Material
SSC-100 Stainless Cam & Groove Shank Coupler	1	Safety Clip	Yes
SSC-150 Stainless Cam & Groove Shank Coupler	1-1/2	Safety Clip	Yes
SSC-200 Stainless Cam & Groove Shank Coupler	2	Safety Clip	Yes
SSC-300 Stainless Cam & Groove Shank Coupler	3	Safety Clip	Yes
SSC-400 Stainless Cam & Groove Shank Coupler	4	Safety Clip	Yes

Product Questions & Answers (2)

Question by: Rusty G on Oct 19, 2025, 9:12 PM

Got a transfer line running product that'll eat through aluminum fittings something fierce. This thing built to hold up, or is it more of a light-duty piece?

Answer by: Customer Support on Oct 21, 2025, 6:55 PM

All wetted and structural components on this coupler are 316 stainless steel, including the body, cam levers, pins, rings, and safety clips. That grade of stainless handles corrosive liquid environments well, which is exactly what it's built for. Keep in mind it's rated for liquid service only, so compressed air and steam are off the table regardless of the fluid compatibility question. For liquid transfer in corrosive conditions, this is a solid choice.

Question by: Marvin M on Apr 22, 2025, 2:31 PM

got a 6 inch camlock setup already. will this female coupler swap with other brands or am i gonna be fighting fitment

Answer by: Customer Support on Apr 24, 2025, 6:54 AM

Interchangeability is the point on this one. It is built to the A-A-59326 standard (the newer spec that replaced Mil-C-27487F) and also DIN 2828, so it will mate with other cam and groove parts made to those same standards.
