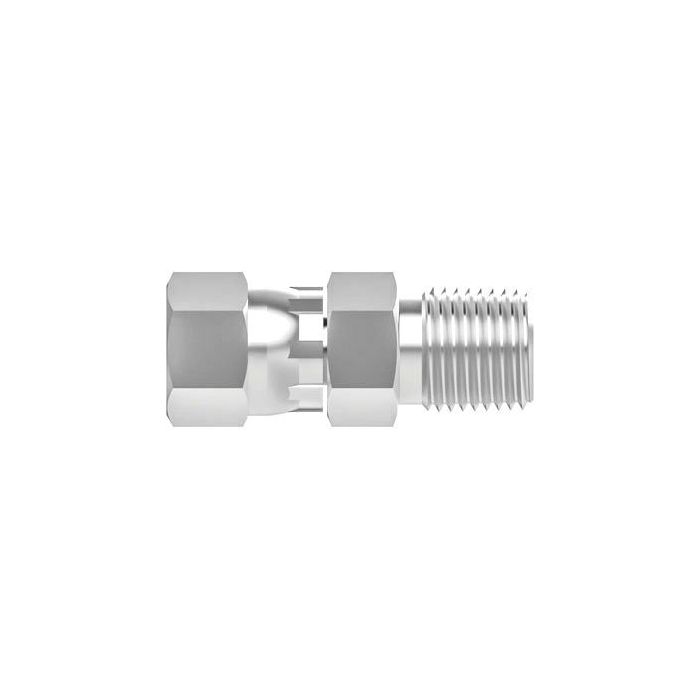

Stainless Steel Adapter, 3/8-18 Female JIC 37 deg Flare To Male NPT, Straight

Ask A Question

Description & Features

This stainless steel adapter features a 3/8-18 female JIC 37 deg Flare to Male NPT connection in a straight configuration.

The adapter, with a 0.5" tube OD, is part of the Pipe To 37° Flare Stainless Steel Adapters product model, ensuring reliable performance in demanding environments.

SKU: JS8C

Supplier Part Number (MPN): JS8C

Alternate Part Numbers: C1FZ99, MI-08750584, MINO-00766X94413

Specifications

Brand
SSP
Connection Size 1
1/2 in
Connection Size 2
3/8 in
Connection Type
Female JIC Swivel, MNPT
Connection Type 1
Female SAE 37 deg JIC Swivel
Connection Type 2
Male NPT
Dimension Standards
ANSI/ASME B1.20.1, ANSI/ASME B1.20.3, ANSI/ASME BS 21, ASME B31.3, DIN 2999, JIS B0203, SAE J514
Dimensions
1.78 in L
Fitting Type
Connector
Hex Size
7/8 in
Material
Stainless Steel
Material Construction
316 Stainless Steel
Series
JS-C Series
Thread Sealant
Without Thread Sealant
Thread Size
3/4-16
Tube OD
1/2 in
Tube Outside Diameter
1/2 in

Similar Products

Model Number Tube O.D. Thread Size L Price Action
Stainless Steel Adapter, 1/4-18 Female JIC 37 deg Flare To Male NPT, Straight

JS6C Stainless Female JIC To Male NPT Adapter

0.38

1/4-18 x 9/16-18

1.54

Product Questions & Answers (2)

Question by: Darryl W on Jan 10, 2026, 11:15 AM
So this here adapter, it's stainless steel right? Good for stuff outside?
Answer by: Customer Support on Jan 12, 2026, 6:53 AM
Yes, being stainless steel, this adapter offers good corrosion resistance, which is beneficial for outdoor and demanding environments.
Question by: Johnny P on Sep 30, 2025, 9:37 AM
got a hose end with a 3/8-18 female JIC swivel, will this adapter let me hook it to a male NPT port?
Answer by: Customer Support on Oct 2, 2025, 6:10 AM
Built for that exact changeover, it goes from a 3/8-18 female JIC 37 degree flare swivel on one side to a male NPT on the other, in a straight body.
