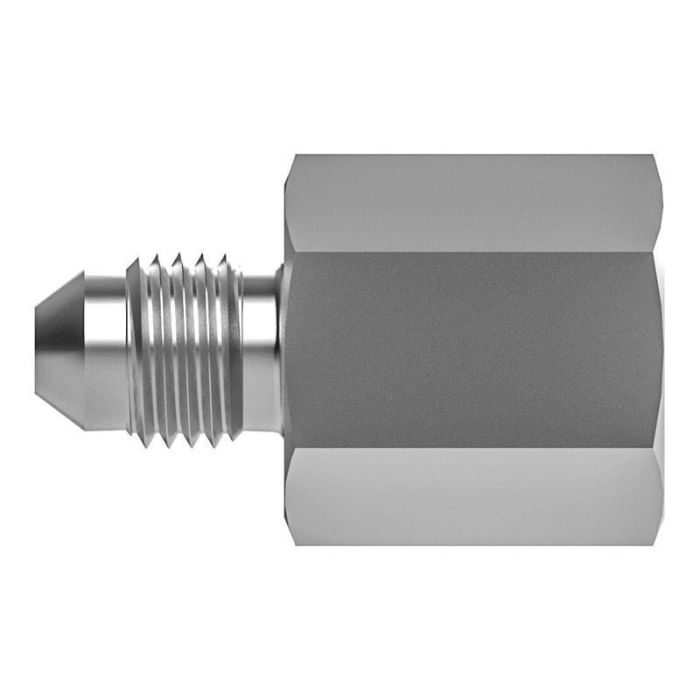

Stainless Steel Adapter, 1/2-14 Female NPT To 7/8-14 Male JIC 37 deg Flare, Straight

Ask A Question

Description & Features

Manufactured by SSP Fittings Corp in stainless steel, this straight adapter connects a 1/2-14 Female NPT thread to a 7/8-14 Male JIC 37° flare, making it a reliable transition fitting for hydraulic lines where pipe thread and flare connections must interface. The stainless steel construction suits environments where corrosion resistance is a priority, including marine, chemical processing, and other demanding industrial fluid systems.

The Stainless Steel Adapter, 1/2-14 Female NPT To 7/8-14 Male JIC 37 deg Flare, Straight has an overall length of 2.54 inches and a tube O.D. of 0.63 inches. It belongs to SSP's Pipe to 37° Flare Stainless Steel Adapter series, catalogued under part number C1CZ12.

SKU: J10FC

Supplier Part Number (MPN): J10FC

Alternate Part Numbers: C1CZ12, MI-08750265, MINO-00766X89756

Specifications

Brand
SSP
Connection Size 1
5/8 in
Connection Size 2
1/2 in
Connection Type
FNPT, Male JIC
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Female NPT
Dimension Standards
ANSI/ASME B1.20.1, ANSI/ASME B1.20.3, ANSI/ASME BS 21, ASME B31.3, DIN 2999, JIS B0203, SAE J514
Dimensions
1.89 in L
Fitting Type
Connector
Hex Size
1-1/8 in
l Dimensions
2.54 in
Material
Stainless Steel
Material Construction
316 Stainless Steel
Maximum Operating Pressure
6000 psi
Series
J-FC Series
Thread Sealant
Without Thread Sealant
Thread Size
1/2-14 x 7/8-14
Tube Outside Diameter
0.63 in

Similar Products

Model Number Tube O.D. Thread Size Thread 2 L Price Action
Stainless Steel Adapter, 1/4-18 Female NPT To 7/16-20 Male JIC 37 deg Flare, Straight

J4-4FC Stainless Female NPT To Male JIC Adapter

0.25

7/16-20, 1/4-18

7/16-20

1.74

Stainless Steel Adapter, 3/4-14 Female NPT To 1-1/16-12 Male JIC 37 deg Flare, Straight

J12FC Stainless Female NPT To Male JIC Adapter

0.75

1-1/16-12 x 3/4-14

1-1/16-12

2.52

Stainless Steel Adapter, 1-11-1/2 Female NPT To 1-5/16-12 Male JIC 37 deg Flare, Straight

J16FC Stainless Female NPT To Male JIC Adapter

1

1-5/16-12 x 1-11-1/2 x 1-5/16-12

1-5/16-12

3.1

Stainless Steel Adapter, 1/8-27 Female NPT To 7/16-20 Male JIC 37 deg Flare, Straight

J4FC Stainless Female NPT To Male JIC Adapter

0.25

1/8-27, 7/16-20

7/16-20

1.55

Stainless Steel Adapter, 3/8-18 Female NPT To 9/16-18 Male JIC 37 deg Flare, Straight

J6-6FC Stainless Female NPT To Male JIC Adapter

0.38

3/8-18, 9/16-18

9/16-18

1.88

Stainless Steel Adapter, 1/4-18 Female NPT To 9/16-18 Male JIC 37 deg Flare, Straight

J6FC Stainless Female NPT To Male JIC Adapter

0.38

1/4-18 x 9/16-18

9/16-18

1.87

Stainless Steel Adapter, 1/2-14 Female NPT To 3/4-16 Male JIC 37 deg Flare, Straight

J8-8FC Stainless Female NPT To Male JIC Adapter

0.5

3/4-16 x 1/2-14

3/4-16

1.75

Stainless Steel Adapter, 3/8-18 Female NPT To 3/4-16 Male JIC 37 deg Flare, Straight

J8FC Stainless Female NPT To Male JIC Adapter

0.5

3/4-16 x 3/8-18

3/4-16

2.06

Product Questions & Answers (1)

Question by: Janet F on Aug 3, 2025, 8:22 PM
got a hose end with a 7/8-14 JIC flare on it. will this adapter let me tie that into a 1/2-14 female NPT port?
Answer by: Customer Support on Aug 5, 2025, 8:54 AM
Use it as a transition from pipe thread to flare. One side is 1/2-14 female NPT and the other side is a 7/8-14 male JIC 37 degree flare, so it bridges a female NPT port to a JIC flare connection.
