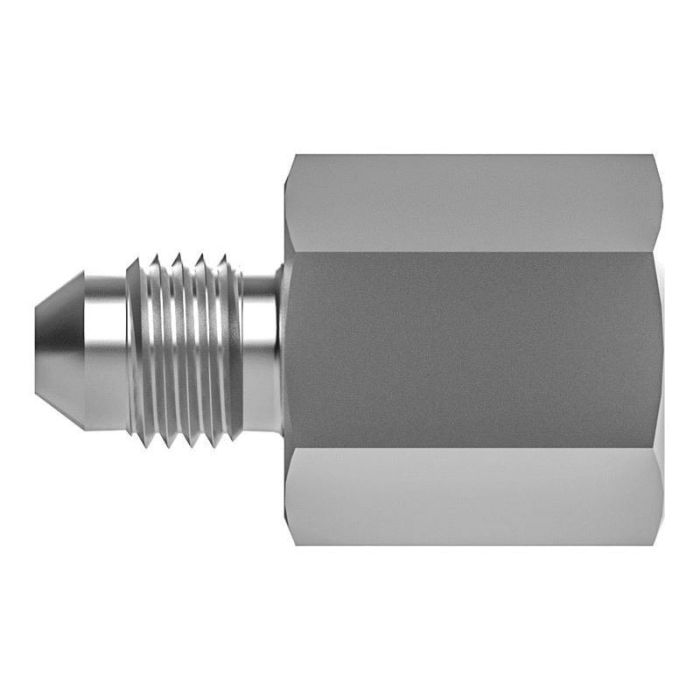

Stainless Steel Adapter, 3/4-14 Female NPT To 1-1/16-12 Male JIC 37 deg Flare, Straight

Description & Features

This straight stainless steel adapter connects dissimilar hydraulic components.

Featuring a 3/4-14 female NPT thread on one end and a 1-1/16-12 male JIC 37 deg Flare on the other, this Stainless Steel Adapter ensures a secure and reliable connection. It is manufactured by SSP Fittings Corp, ensuring quality and durability in demanding hydraulic applications.

SKU: J12FC

Supplier Part Number (MPN): J12FC

Alternate Part Numbers: C1CZ30, MI-08750278, MINO-00766X89769

Specifications

Brand SSP	Connection Size 1 3/4 in	Connection Size 2 3/4 in	Connection Type FNPT, Male JIC	Connection Type 1 Male SAE 37 deg JIC Flare	Connection Type 2 Female NPT	Dimension Standards ANSI/ASME B1.20.1, ANSI/ASME B1.20.3, ANSI/ASME BS 21, ASME B31.3, DIN 2999, JIS B0203, SAE J514	Dimensions 2.06 in L	Fitting Type Connector	Hex Size 1-3/8 in	l Dimensions 2.52 in	Material Stainless Steel	Material Construction 316 Stainless Steel	Series J-FC Series	Thread Sealant Without Thread Sealant	Thread Size 1-1/16-12 x 3/4-14	Tube Outside Diameter 3/4 in

Similar Products

Model Number	Tube O.D.	Thread Size	Thread 2	L
J4-4FC Stainless Female NPT To Male JIC Adapter	0.25	7/16-20, 1/4-18	7/16-20	1.74
J10FC Stainless Female NPT To Male JIC Adapter	0.63	1/2-14 x 7/8-14	7/8-14	2.54
J16FC Stainless Female NPT To Male JIC Adapter	1	1-5/16-12 x 1-11-1/2 x 1-5/16-12	1-5/16-12	3.1
J4FC Stainless Female NPT To Male JIC Adapter	0.25	1/8-27, 7/16-20	7/16-20	1.55
J6-6FC Stainless Female NPT To Male JIC Adapter	0.38	3/8-18, 9/16-18	9/16-18	1.88
J6FC Stainless Female NPT To Male JIC Adapter	0.38	1/4-18 x 9/16-18	9/16-18	1.87
J8-8FC Stainless Female NPT To Male JIC Adapter	0.5	3/4-16 x 1/2-14	3/4-16	1.75
J8FC Stainless Female NPT To Male JIC Adapter	0.5	3/4-16 x 3/8-18	3/4-16	2.06
