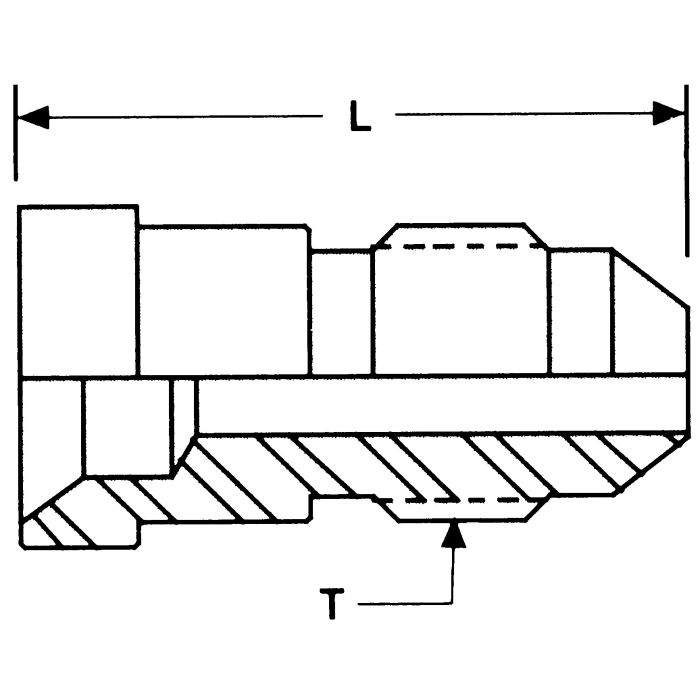

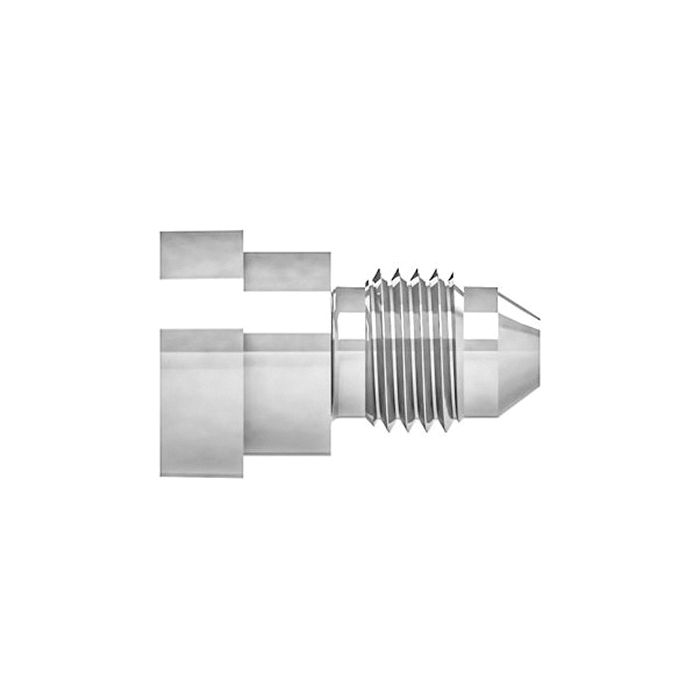

Designed for reducing between two JIC 37° flare connections, this Stainless Steel Adapter, Female JIC 37 deg Flare To 7/16-20 Male JIC 37 deg Flare, Straight Reducer is well suited for hydraulic line assemblies where a straight, compact transition between differing tube sizes is required. The female end accepts a standard JIC flare, while the 7/16-20 male JIC thread on the opposite end accommodates a 0.25-inch tube OD connection.
Manufactured by SSP Fittings Corp, this fitting is constructed from stainless steel, making it appropriate for applications where corrosion resistance is a priority. The straight reducer configuration keeps the assembly inline without angular offset, simplifying routing in tight installations.
SKU: J6-4TER
Supplier Part Number (MPN): J6-4TER
Alternate Part Numbers: C1DA23, MI-06228361, MINO-00766X00112
Loading related products…
Specifications
Alternate Part Numbers
Alternate Part NumberC1DA23, Alternate Part Number MI-06228361, Alternate Part Number MINO-00766X00112
Brand
Ssp Fittings Corp
Brand
SSP Fittings Corp
Pack Size
1.00
UOM
EA
Supplier Part Number
J6-4TER
Thread 2
7/16-20
Thread Sealant
No
Tube O.D.
0.25
Tube O.D.
0.25
Product Weight
0.09 lbs
Similar Products
Model Number
Tube O.D.
Thread 2
L
Price
Action
J10-4TERStainless Female To Male JIC Reducer
0.63
7/16-20
J10-6TERStainless Female To Male JIC Reducer
0.38
9/16-18
J12-8TERStainless Female To Male JIC Reducer
0.5
3/4-16
J16-12TERStainless Female To Male JIC Reducer
0.75
1-1/16-12
J6-4TERStainless Female To Male JIC Reducer
0.25
7/16-20
J8-4TERStainless Female To Male JIC Reducer
0.25
7/16-20
J8-6TERStainless Female To Male JIC Reducer
0.38
9/16-18
Product Questions & Answers (3)
Question by: Dwight T on Oct 17, 2025, 6:41 AM
Can this reducer handle hydraulic systems with stainless steel tubing?
Answer by: Customer Support on Oct 18, 2025, 6:56 AM
Since it's made from stainless steel by SSP Fittings Corp, it's definitely compatible with stainless steel hydraulic lines where you need good corrosion resistance.
Question by: Sheila H on Mar 31, 2026, 7:32 PM
What size tube does the male end of this reducer hook up to?
Answer by: Customer Support on Apr 2, 2026, 6:45 AM
The male JIC end uses a 7/16-20 thread, which corresponds to a quarter-inch tube OD. So if you're stepping down to a 0.25-inch line on one side, that's the end you're connecting to.
Question by: Gene H on Feb 12, 2026, 5:45 PM
i’ve got a 1/4 inch tube line with a 7/16-20 JIC male on it, will this reducer hook up to that?
Answer by: Customer Support on Feb 13, 2026, 8:53 PM
For a 1/4 inch tube OD JIC connection, the male side on this adapter is 7/16-20 JIC 37 degree flare, so it matches that size. The other end is a female JIC 37 degree flare, meant to accept a standard JIC flare coming from the larger side you are reducing from.
