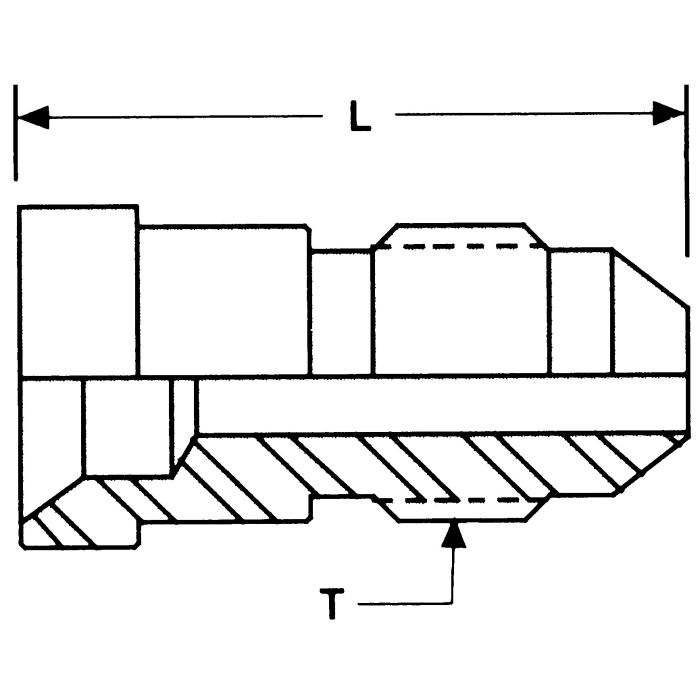

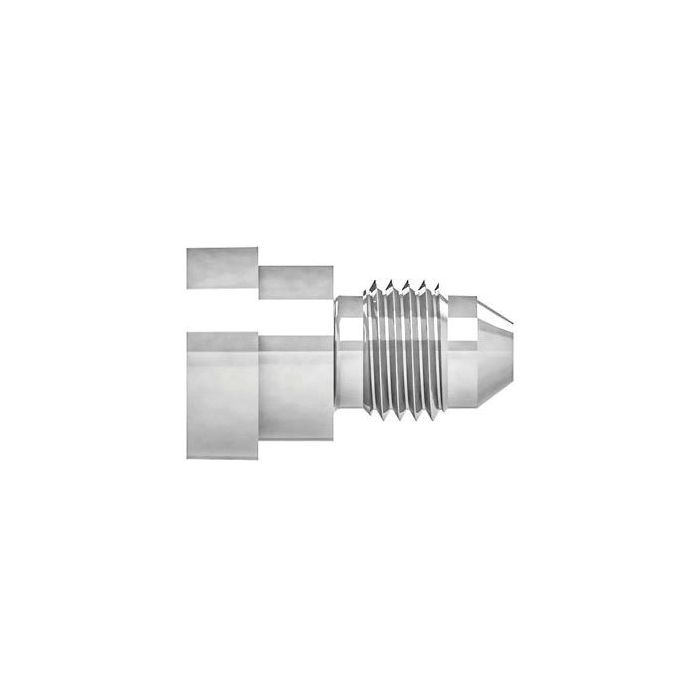

Stainless Steel Adapter, Female JIC 37 deg Flare To 7/16-20 Male JIC 37 deg Flare, Straight Reducer

Ask A Question

Description & Features

This Stainless Steel Adapter features a female JIC 37 deg Flare to 7/16-20 male JIC 37 deg Flare, with a straight reducer design. It is made by SSP Fittings Corp and conforms to industry standards.

The Stainless Steel Adapter, Female JIC 37 deg Flare To 7/16-20 Male JIC 37 deg Flare, Straight Reducer is suitable for various applications.

SKU: J8-4TER

Supplier Part Number (MPN): J8-4TER

Alternate Part Numbers: C1DA57, MI-08750347, MINO-00766X89837

Specifications

Brand
SSP
Connection Size 1
1/2 in
Connection Size 2
1/4 in
Connection Type
Female JIC, Male JIC
Connection Type 1
Female SAE 37 deg JIC Flare
Connection Type 2
Male SAE 37 deg JIC Flare
Dimension Standards
ANSI/ASME B1.1, ANSI/ASME B1.20.1, SAE J514
Dimensions
0.68 in Dia x 1 in L
Fitting Type
Reducer
Material
Stainless Steel
Material Construction
316 Stainless Steel
Maximum Operating Pressure
6000 psi
Series
J-TER Series
Thread Sealant
Without Thread Sealant
Thread Size
7/16-20
Tube OD
1/4 in
Tube Outside Diameter
1/4 in

Similar Products

Model Number Tube O.D. Thread Size L Price Action
Stainless Steel Adapter, Female JIC 37 deg Flare To 7/16-20 Male JIC 37 deg Flare, Straight Reducer

J10-4TER Stainless Female To Male JIC Reducer

0.63

5/8-1/4 x 7/16-20

Stainless Steel Adapter, Female JIC 37 deg Flare To 9/16-18 Male JIC 37 deg Flare, Straight Reducer

J10-6TER Stainless Female To Male JIC Reducer

0.38

9/16-18

Stainless Steel Adapter, Female JIC 37 deg Flare To 3/4-16 Male JIC 37 deg Flare, Straight Reducer

J12-8TER Stainless Female To Male JIC Reducer

0.5

3/4-1/2 x 3/4-16

Stainless Steel Adapter, Female JIC 37 deg Flare To 1-1/16-12 Male JIC 37 deg Flare, Straight Reducer

J16-12TER Stainless Female To Male JIC Reducer

0.75

1-1/16-12

Stainless Steel Adapter, Female JIC 37 deg Flare To 7/16-20 Male JIC 37 deg Flare, Straight Reducer

J6-4TER Stainless Female To Male JIC Reducer

0.25

3/8-1/4 x 7/16-20

Stainless Steel Adapter, Female JIC 37 deg Flare To 9/16-18 Male JIC 37 deg Flare, Straight Reducer

J8-6TER Stainless Female To Male JIC Reducer

0.38

1/2-3/8 x 9/16-18

Product Questions & Answers (2)

Question by: Dale H on Apr 1, 2026, 6:23 PM
this fitting got a female JIC on one end and male JIC on the other, is that right, or am I reading the size wrong?
Answer by: Customer Support on Apr 3, 2026, 6:14 AM
Female JIC 37 degree flare on the larger end, 7/16-20 male JIC 37 degree flare on the smaller end. Both ends use the same flare angle, so it's a straight reducer keeping you in the JIC system while stepping down the connection size. Stainless steel construction from SSP Fittings Corp.
Question by: Dwayne W on Jun 17, 2025, 6:00 PM
trying to hook a 1/4 inch tube line into a 7/16-20 JIC port. is this the right reducer for that?
Answer by: Customer Support on Jun 19, 2025, 6:12 AM
For that kind of step-down, this adapter is set up as a straight reducer with a female JIC 37 degree flare on one side and a 7/16-20 male JIC 37 degree flare on the other. The tube OD called out for it is 0.25 inch.
