Stainless M.Metric X Fem. Npt

Description & Features

Constructed from stainless steel, this straight-configuration adapter connects a male M14 x 1.5 metric thread on one end to a female 1/4-18 NPTF port on the other, making it a reliable choice for joining metric and NPT-threaded components in hydraulic and fluid systems. The stainless material provides resistance to corrosion and is well suited for demanding service environments where carbon steel fittings would be inadequate.

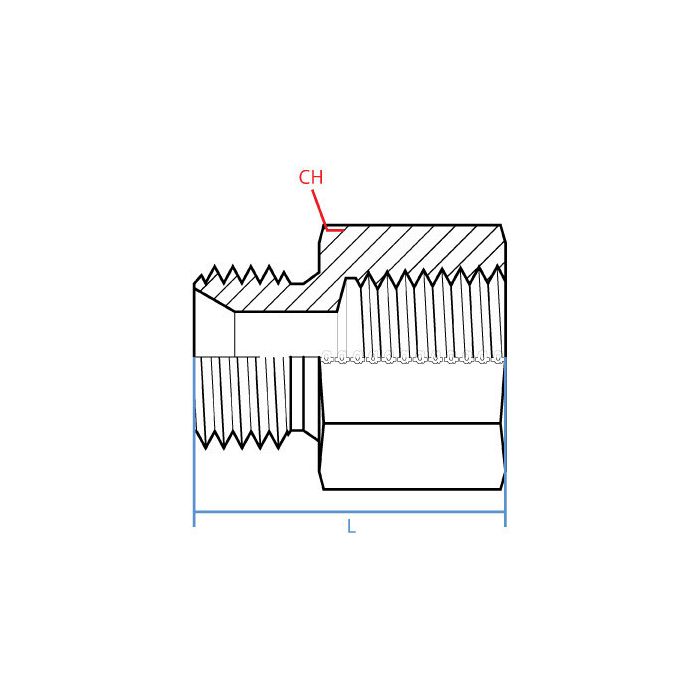

The Adaptall Stainless M.Metric X Fem. Npt measures 33.1mm in overall length with a 19mm wrench flat, offering a compact, easy-to-install adapter where space may be limited. Manufactured by Adaptall, this fitting supports cross-standard compatibility between metric and inch-based NPT connections without requiring additional adapters or custom fabrication.

SKU: SS9235-14-04

Supplier Part Number (MPN): SS9235-14-04

Specifications

Connection Size 1 14 mm	Connection Size 2 1/4 in	Connection Type FNPT, Male Metric	Connection Type 1 Male Metric	Connection Type 2 FNPT	Dimensions 33.1 mm L	Fitting Type Adapter	Hex Size 19 mm	Material Stainless Steel	Material Construction Stainless Steel	Series SS9235 Series	Thread Size 1/4-18, M14x1.5

Product Questions & Answers (1)

Question by: Todd G on Sep 18, 2025, 6:12 PM

Got a metric port on my pump housing and need to tie into some NPT fittings downstream, will this adapter handle that kind of crossover without needing anything extra in between?

Answer by: Customer Support on Sep 20, 2025, 6:29 AM

Straight shot, one fitting. The M14 x 1.5 male end threads into your metric port and the 1/4-18 NPTF female end accepts a standard NPT male fitting, so you're bridging those two thread standards in a single piece. No additional adapters or custom fab work needed to make that connection.
