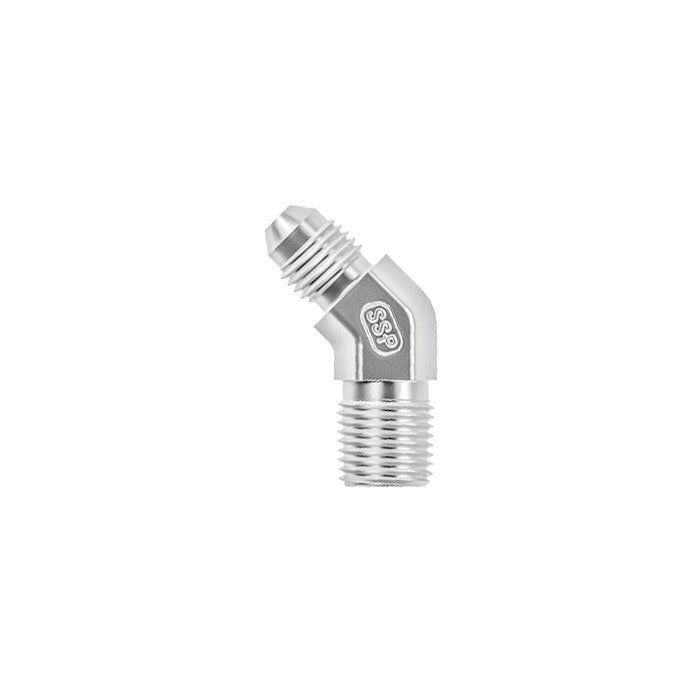

main product photo

Stainless Steel Adapter, 1/8-27 Male NPT To 7/16-20 Male JIC 37 deg Flare, 45 deg Elbow

Ask A Question

Description & Features

Constructed from 316 stainless steel, this 45-degree elbow adapter connects a 1/8-27 male NPT thread to a 7/16-20 male JIC 37° flare, making it well-suited for hydraulic and fluid system assemblies where corrosion resistance and directional routing are required. The 45° elbow configuration allows lines to be redirected where space constraints or routing geometry would make a straight fitting impractical.

The Stainless Steel Adapter, 1/8-27 Male NPT To 7/16-20 Male JIC 37 deg Flare, 45 deg Elbow is manufactured by SSP Fittings Corp and carries catalog number C1CZ91. With a tube OD of 0.25 in. and compact overall dimensions, it is a practical choice for tight installations requiring a reliable transition between NPT and JIC connection standards. 316 stainless steel construction provides strong resistance to corrosion in demanding industrial environments.

SKU: J4ME-45

Supplier Part Number (MPN): J4ME-45

Alternate Part Numbers: C1CZ91, MI-08750316, MINO-00766X89807

Specifications

Brand
SSP
Connection Size 1
1/4 in
Connection Size 2
1/8 in
Connection Type
Male JIC, MNPT
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Male NPT
Dimension Standards
ANSI/ASME B1.20.1, ANSI/ASME B1.20.3, ANSI/ASME BS 21, ASME B31.3, DIN 2999, JIS B0203, SAE J514
Fitting Type
45 deg Elbow
Hex Size
7/16 in
m Dimensions
0.72 in
Material
Stainless Steel
Material Construction
316 Stainless Steel
Maximum Operating Pressure
5000 psi
n Dimensions
0.64 in
Series
J-ME-45 Series
Thread Sealant
Without Thread Sealant
Thread Size
1/8-27, 7/16-20
Tube OD
1/4 in
Tube Outside Diameter
1/4 in

Similar Products

Model Number Tube O.D. Thread Size Thread 2 M N Price Action
Stainless Steel Adapter, 3/4-14 Male NPT To 1-1/16-12 Male JIC 37 deg Flare, 45 deg Elbow

J12ME-45 Stainless Male NPT To JIC 45 Elbow

0.75

1-1/16-12 x 3/4-14

1-1/16-12

1.28

1.2

Stainless Steel Adapter, 1/8-18 Male NPT To 7/16-20 Male JIC 37 deg Flare, 45 deg Elbow

J4-4ME-45 Stainless Male NPT To JIC 45 Elbow

0.25

7/16-20, 1/4-18

7/16-20

0.82

0.86

Stainless Steel Adapter, 1/4-18 Male NPT To 9/16-18 Male JIC 37 deg Flare, 45 deg Elbow

J6ME-45 Stainless Male NPT To JIC 45 Elbow

0.38

1/4-18 x 9/16-18

9/16-18

0.83

0.86

Stainless Steel Adapter, 3/8-18 Male NPT To 3/4-16 Male JIC 37 deg Flare, 45 deg Elbow

J8ME-45 Stainless Male NPT To JIC 45 Elbow

0.5

3/4-16 x 3/8-18

3/4-16

0.98

0.95

Product Questions & Answers (1)

Question by: Dale C on Apr 13, 2025, 1:37 PM
Got a fitting spot on a small hydraulic line that runs at a real awkward angle, would this 45-degree elbow help redirect it without having to reroute the whole line?
Answer by: Customer Support on Apr 14, 2025, 7:57 PM
A 45-degree elbow is exactly the kind of fitting that saves you from tearing apart a whole assembly. Where a straight adapter would force the line to bend sharply or conflict with nearby hardware, the angled body lets the connection exit at a gentler offset. The NPT side threads into a port and the JIC 37-degree flare end connects to the line, so you get the thread transition and the directional change handled by one fitting instead of two.
