main product photo

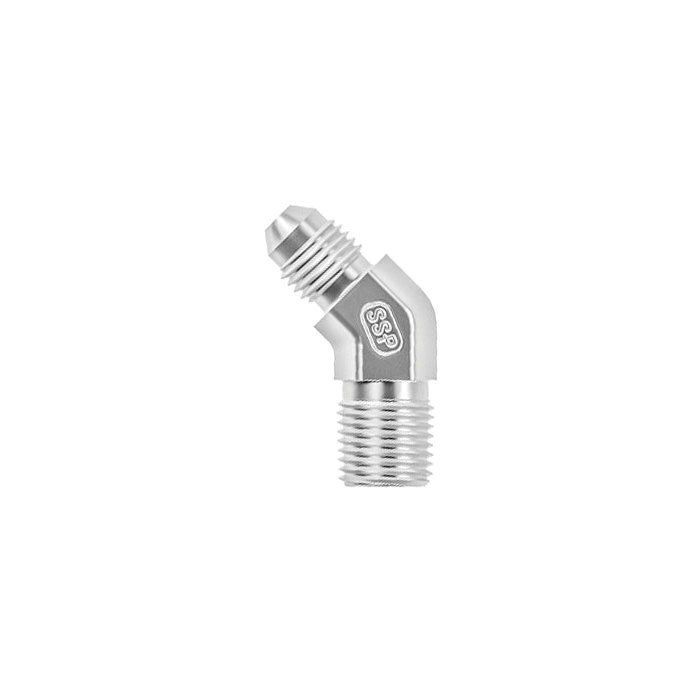

Stainless Steel Adapter, 1/4-18 Male NPT To 9/16-18 Male JIC 37 deg Flare, 45 deg Elbow

Ask A Question

Description & Features

Constructed from stainless steel, this 45-degree elbow adapter connects a 1/4-18 Male NPT thread to a 9/16-18 Male JIC 37° flare, making it well suited for hydraulic lines and fluid systems where a directional change is needed at the fitting junction. The angled configuration helps route tubing in tight spaces without requiring additional bends in the line.

The Stainless Steel Adapter, 1/4-18 Male NPT To 9/16-18 Male JIC 37 Deg Flare, 45 Deg Elbow is manufactured by SSP Fittings Corp and carries catalog number C1DA42. Stainless steel construction provides corrosion resistance in demanding industrial environments. With a tube O.D. of 0.38 in., this fitting is compatible with standard 3/8 in. tube lines on the JIC side.

SKU: J6ME-45

Supplier Part Number (MPN): J6ME-45

Alternate Part Numbers: C1DA42, MI-08750338, MINO-00766X89828

Specifications

Brand
SSP
Connection Size 1
3/8 in
Connection Size 2
1/4 in
Connection Type
Male JIC, MNPT
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Male NPT
Dimension Standards
ANSI/ASME B1.20.1, ANSI/ASME B1.20.3, ANSI/ASME BS 21, ASME B31.3, DIN 2999, JIS B0203, SAE J514
Fitting Type
45 deg Elbow
Hex Size
0.563 in
m Dimensions
0.83 in
Material
Stainless Steel
Material Construction
316 Stainless Steel
Maximum Operating Pressure
5000 psi
n Dimensions
0.86 in
Series
J-ME-45 Series
Thread Sealant
Without Thread Sealant
Thread Size
1/4-18 x 9/16-18
Tube OD
3/8 in
Tube Outside Diameter
0.38 in

Similar Products

Model Number Tube O.D. Thread Size Thread 2 M N Price Action
Stainless Steel Adapter, 3/4-14 Male NPT To 1-1/16-12 Male JIC 37 deg Flare, 45 deg Elbow

J12ME-45 Stainless Male NPT To JIC 45 Elbow

0.75

1-1/16-12 x 3/4-14

1-1/16-12

1.28

1.2

Stainless Steel Adapter, 1/8-18 Male NPT To 7/16-20 Male JIC 37 deg Flare, 45 deg Elbow

J4-4ME-45 Stainless Male NPT To JIC 45 Elbow

0.25

7/16-20, 1/4-18

7/16-20

0.82

0.86

Stainless Steel Adapter, 1/8-27 Male NPT To 7/16-20 Male JIC 37 deg Flare, 45 deg Elbow

J4ME-45 Stainless Male NPT To JIC 45 Elbow

0.25

1/8-27, 7/16-20

7/16-20

0.72

0.64

Stainless Steel Adapter, 3/8-18 Male NPT To 3/4-16 Male JIC 37 deg Flare, 45 deg Elbow

J8ME-45 Stainless Male NPT To JIC 45 Elbow

0.5

3/4-16 x 3/8-18

3/4-16

0.98

0.95

Product Questions & Answers (2)

Question by: Vince H on Jan 12, 2026, 9:34 PM
Got a hydraulic line that needs to make a turn coming off a 1/4 NPT port and I don't have room for extra bends. This the kind of fitting that'd handle that?
Answer by: Customer Support on Jan 14, 2026, 6:25 AM
Yeah, that's exactly what this one's built for. The 45-degree angle lets you redirect the line right at the fitting itself, so you're not fighting the tubing to make a turn downstream. One side threads into a 1/4-18 male NPT port, and the JIC end connects to 3/8 in. tube on a standard 9/16-18 male JIC 37-degree flare. Stainless steel construction holds up well in environments where corrosion is a concern, so it's a solid pick for tight-space routing on hydraulic and fluid systems.
Question by: Howard R on Apr 29, 2025, 9:13 PM
Will this fitting hold up if it's constantly exposed to hydraulic fluid?
Answer by: Customer Support on May 1, 2025, 11:13 AM
Stainless steel construction provides corrosion resistance, which makes it suitable for demanding industrial environments where it will be exposed to hydraulic fluids.
