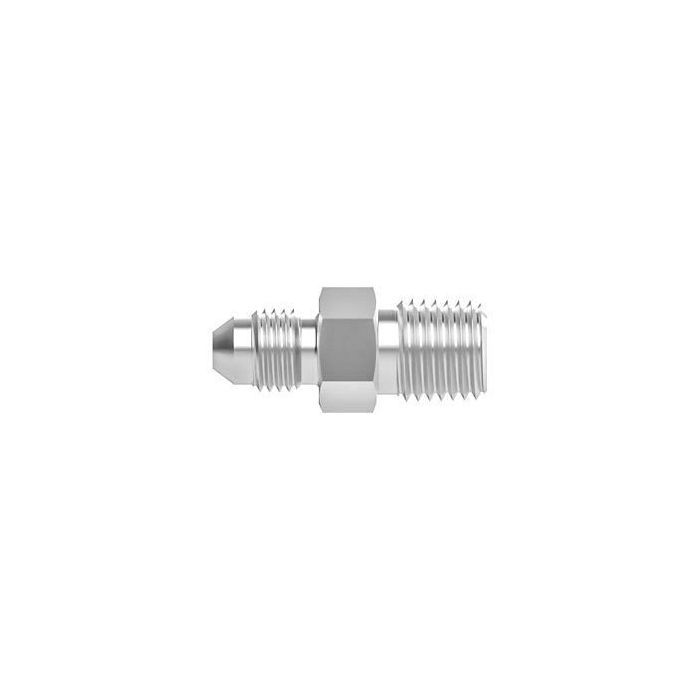

Manufactured from stainless steel for corrosion resistance in demanding hydraulic and fluid system environments, this straight adapter transitions between a 3/4-14 Male NPT thread and a 1-1/16-12 Male JIC 37° flare connection. The Stainless Steel Adapter, 3/4-14 Male NPT To 1-1/16-12 Male JIC 37 deg Flare, Straight is part of Ssp Fittings Corp's pipe-to-flare adapter series, catalog number C1CZ28, with an overall length of 2.67 inches.
Suited for applications where NPT-threaded ports must connect to JIC flare lines, this adapter is a practical solution in hydraulic circuits, instrumentation, and high-pressure fluid transfer assemblies. The 37° flare seat conforms to standard JIC specifications, ensuring a reliable metal-to-metal seal at the flare end.
SKU: J12C
Supplier Part Number (MPN): J12C
Alternate Part Numbers: C1CZ28, MI-06009672, MINO-00766X00086
Loading related products…
Specifications
Alternate Part Numbers
Alternate Part NumberC1CZ28, Alternate Part Number MI-06009672, Alternate Part Number MINO-00766X00086
Brand
Ssp Fittings Corp
Brand
SSP Fittings Corp
Pack Size
1.00
UOM
EA
L
2.67
Supplier Part Number
J12C
Thread 1
3/4-14
Thread 2
1-1/16-12
Thread Sealant
No
Tube O.D.
0.75
Tube O.D.
0.75
Product Weight
0.33 lbs
Similar Products
Model Number
Tube O.D.
Thread 1
Thread 2
L
Price
Action
J10CStainless Male NPT To JIC Adapter
0.63
1/2-14
7/8-14
2.54
J12CStainless Male NPT To JIC Adapter
0.75
3/4-14
1-1/16-12
2.67
J4-4CStainless Male NPT To JIC Adapter
0.25
1/4-18
7/16-20
1.78
J8-8CStainless Male NPT To JIC Adapter
0.5
1/2-14
3/4-16
2.28
J12-8CStainless Male NPT To JIC Adapter
0.75
1/2-14
1-1/16-12
2.06
J16-12CStainless Male NPT To JIC Adapter
1
3/4-14
1-5/16-12
2.11
J16CStainless Male NPT To JIC Adapter
1
1-11-1/2
1-5/16-12
3.05
J20CStainless Male NPT To JIC Adapter
1.25
1-1/4-11-1/2
1-5/8-12
2.45
J3CStainless Male NPT To JIC Adapter
0.19
1/8-27
3/8-24
1.14
J4-6CStainless Male NPT To JIC Adapter
0.25
3/8-18
7/16-20
1.44
J4-8CStainless Male NPT To JIC Adapter
0.25
1/2-14
7/16-20
1.69
J4CStainless Male NPT To JIC Adapter
0.25
1/8-27
7/16-20
1.58
J6-2CStainless Male NPT To JIC Adapter
0.38
1/8-27
9/16-18
1.24
J6-6CStainless Male NPT To JIC Adapter
0.38
3/8-18
9/16-18
1.91
J6-8CStainless Male NPT To JIC Adapter
0.38
1/2-14
9/16-18
1.69
J6CStainless Male NPT To JIC Adapter
0.38
1/4-18
9/16-18
1.9
J8-12CStainless Male NPT To JIC Adapter
0.5
3/4-14
3/4-16
1.85
J8-4CStainless Male NPT To JIC Adapter
0.5
1/4-18
3/4-16
1.53
J8CStainless Male NPT To JIC Adapter
0.5
3/8-18
3/4-16
2.03
Product Questions & Answers (4)
Question by: Lyle B on Mar 15, 2026, 8:41 AM
got a 3/4 NPT male port on a hydraulic block and need to tie into a JIC line, this the right adapter for that?
Answer by: Customer Support on Mar 16, 2026, 8:35 PM
Yeah, that's exactly the crossover this fitting handles. One end is 3/4-14 male NPT, the other is 1-1/16-12 male JIC with a 37 degree flare seat. If your hose end or tube fitting is a female JIC 37 degree, you're set. Just make sure you're threading the NPT side into a female NPT port and your JIC connection is the mating female end, since both threads on this adapter are male.
Question by: Jean J on Oct 30, 2025, 9:38 AM
Will this here fitting work to connect a 3/4 NPT pipe to a 1 1/16 JIC hydraulic hose?
Answer by: Customer Support on Nov 1, 2025, 8:06 AM
It's designed to adapt a 3/4-14 male NPT (pipe thread) to a 1-1/16-12 male JIC 37-degree flare fitting.
Question by: Steve P on Sep 28, 2025, 6:07 AM
trying to replace an old fitting, is this the straight adapter that goes from 3/4-14 male NPT over to 1-1/16-12 male JIC 37 flare?
Answer by: Customer Support on Sep 29, 2025, 7:19 PM
For a straight male-to-male adapter, this one matches those thread callouts: 3/4-14 male NPT on one end and 1-1/16-12 male JIC with a 37 degree flare on the other.
Question by: Shane P on Jan 22, 2026, 8:42 PM
got a 3/4 NPT male fitting on a hydraulic line and need to connect it to a JIC 37 degree flare port, will this adapter get that done in a straight run?
Answer by: Customer Support on Jan 24, 2026, 9:21 AM
Yeah, that's exactly what this fitting handles. One end is 3/4-14 male NPT and the other is 1-1/16-12 male JIC 37 degree flare, so it bridges those two thread types in a straight inline configuration. No angled routing needed, just a direct connection between the two.
