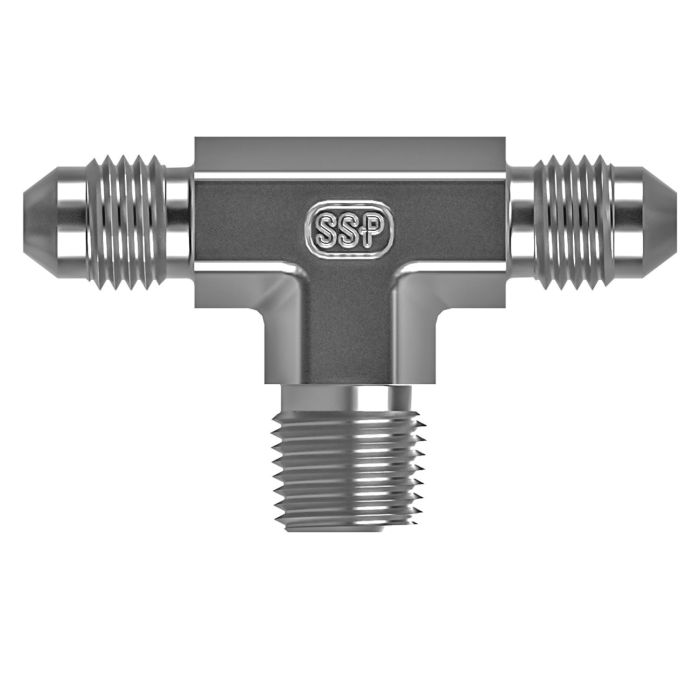

Stainless Steel Adapter, 1-11-1/2 Male NPT Branch To 1-5/16-12 Male JIC 37 deg Flare Run, Tee

Ask A Question

Description & Features

This Stainless Steel Adapter features a 1-11/2 Male NPT branch and a 1-5/16-12 Male JIC 37 deg Flare run, configured as a tee.

This SSP fitting, catalog number C1KG26, falls under the Pipe To 37° Flare Stainless Steel Adapters product model. It is manufactured by SSP Fittings Corp.

SKU: J16TTM

Supplier Part Number (MPN): J16TTM

Alternate Part Numbers: C1KG26

Specifications

Brand
SSP
Connection Size 1
1 in
Connection Size 2
1 in
Connection Type
Male SAE Flared, MNPT
Connection Type 1
Male SAE 37 deg Flare Tube
Connection Type 2
Male SAE 37 deg Flare Tube
Connection Type 3
Male NPT
Dimension Standards
ANSI/ASME B1.20.1, ANSI/ASME B1.20.3, ANSI/ASME BS 21, ASME B31.3, DIN 2999, JIS B0203, SAE J514
Dimensions
3.62 in L
Fitting Type
Tee
m Dimensions
1.81 in
Material
Stainless Steel
Material Construction
316 Stainless Steel
Maximum Operating Pressure
3000 psi
n Dimensions
1.97 in
Series
J-TTM Series
Thread Sealant
Without Thread Sealant
Thread Size
1-5/16-12 x 1-11-1/2 x 1-5/16-12
Tube Outside Diameter
1 in

Similar Products

Model Number Tube O.D. Thread Size Thread 2 M N Price Action
Stainless Steel Adapter, 3/4-14 Male NPT Branch To 1-1/16-12 Male JIC 37 deg Flare Run, Tee

J12TTM Stainless Male NPT To JIC Tee

0.75

1-1/16-12 x 3/4-14

1-1/16-12

1.66

1.59

Stainless Steel Adapter, 1/4-18 Male NPT Branch To 7/16-20 Male JIC 37 deg Flare Run, Tee

J4-4-4TTM Stainless Male NPT To JIC Tee

0.25

7/16-20, 1/4-18

7/16-20

1.05

1.09

Stainless Steel Adapter, 1/2-14 Male NPT Branch To 3/4-16 Male JIC 37 deg Flare Run, Tee

J8-8-8TTM Stainless Male NPT To JIC Tee

0.5

3/4-16 x 1/2-14

3/4-16

1.33

1.47

Product Questions & Answers (2)

Question by: Keith H on Jun 19, 2025, 4:16 PM
Got a hydraulic line running 1-5/16-12 JIC on the main run and need to branch off with a 1 inch NPT male connection. this the right fitting for that setup?
Answer by: Customer Support on Jun 21, 2025, 7:59 AM
Yeah, that's exactly what this tee is built for. The run side carries the 1-5/16-12 male JIC 37 degree flare connection, and the branch comes off as 1-11-1/2 male NPT. So if your main line is JIC and you're branching to an NPT port, this fits that configuration. Just make sure your NPT port is female and your JIC connection is the swivel or female end, since both sides of this fitting are male.
Question by: Billy C on Jun 22, 2025, 11:46 AM
trying to swap out a tee on my line, is this the one with a 1-11-1/2 male NPT on the branch and 1-5/16-12 male JIC on the run?
Answer by: Customer Support on Jun 24, 2025, 6:30 AM
It matches that combo: the branch side is 1-11-1/2 male NPT, and the run is 1-5/16-12 male JIC with a 37 degree flare, built as a tee.
