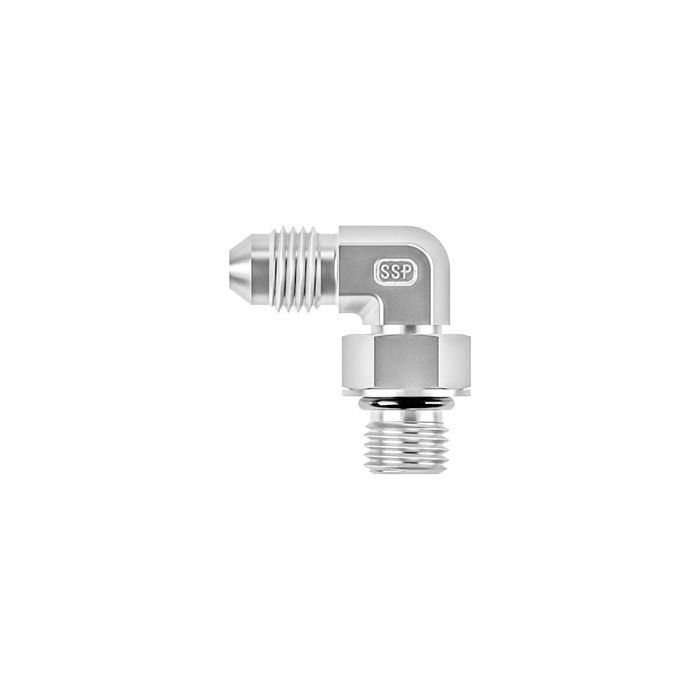

Constructed from stainless steel for corrosion resistance in demanding hydraulic environments, this 90-degree elbow adapter transitions a 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring) connection to a 1-1/16-12 Male JIC 37° Flare connection. The Stainless Steel Adapter, 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 1-1/16-12 Male JIC 37 deg Flare, 90 deg Elbow is designed for hydraulic lines where routing requires a directional change between ORB and JIC-style fittings of the same thread size.
Both ports share a 1-1/16-12 thread specification, with the O-Ring Boss end providing a reliable static seal and the JIC 37° flare end offering a metal-to-metal seating surface. Compatible with 3/4-inch OD tubing on the JIC side, this adapter suits medium to high-pressure hydraulic circuit assemblies. Manufactured by Ssp Fittings Corp under catalog number C1CZ32.
SKU: J12GE
Supplier Part Number (MPN): J12GE
Alternate Part Numbers: C1CZ32, MI-08750281, MINO-00766X89772
Loading related products…
Specifications
Alternate Part Numbers
Alternate Part NumberC1CZ32, Alternate Part Number MI-08750281, Alternate Part Number MINO-00766X89772
Brand
Ssp Fittings Corp
Brand
SSP Fittings Corp
Pack Size
1.00
UOM
EA
G
1.94
M
1.66
Supplier Part Number
J12GE
Thread 1
1-1/16-12
Thread 2
1-1/16-12
Thread Sealant
No
Tube O.D.
0.75
Tube O.D.
0.75
Product Weight
0.99 lbs
Similar Products
Model Number
Tube O.D.
Thread 2
Thread 1
G
M
Price
Action
J4-6GEStainless Male ORB To JIC 90 Elbow
0.25
7/16-20
9/16-18
1.25
0.89
J4GEStainless Male ORB To JIC 90 Elbow
0.25
7/16-20
7/16-20
1.03
0.89
J6GEStainless Male ORB To JIC 90 Elbow
0.38
9/16-18
9/16-18
1.25
1.06
J8GEStainless Male ORB To JIC 90 Elbow
0.5
3/4-16
3/4-16
1.45
1.25
Product Questions & Answers (3)
Question by: Rod G on Nov 2, 2025, 11:33 AM
got a hose end that’s 1-1/16-12 JIC for 3/4 tube, will this elbow mate up and give me an ORB male on the other side?
Answer by: Customer Support on Nov 3, 2025, 9:15 PM
It converts between the two styles at the same 1-1/16-12 thread size. One end is a 1-1/16-12 male JIC 37 degree flare that matches 3/4 inch OD tubing on the JIC side, and the other end is a 1-1/16-12 male SAE O-ring boss for an ORB port.
Question by: Kurt D on Dec 17, 2025, 8:26 PM
Will this fitting work with regular ol' 3/4 inch tubing?
Answer by: Customer Support on Dec 19, 2025, 10:37 AM
it's made to work with 3/4-inch OD tubing on the JIC side.
Question by: Steve C on Dec 8, 2025, 5:45 PM
Got a hydraulic line that needs to make a 90-degree turn where the ORB port meets up with a JIC fitting, both running 1-1/16-12 threads. This the right piece for that?
Answer by: Customer Support on Dec 10, 2025, 6:53 AM
For that exact situation, yeah, this adapter is what you want. One end is a Male SAE O-Ring Boss using a straight thread O-ring seal, and the other end is a Male JIC 37-degree flare. Both ends run 1-1/16-12 thread, so the sizing lines up on both sides. The 90-degree elbow handles the direction change right at the connection point, which keeps you from having to force a bent tube into a straight fitting. The JIC side seats metal-to-metal at the 37-degree flare and is sized for 3/4-inch OD tubing. Whole thing is stainless steel, so it holds up where corrosion is a concern.
