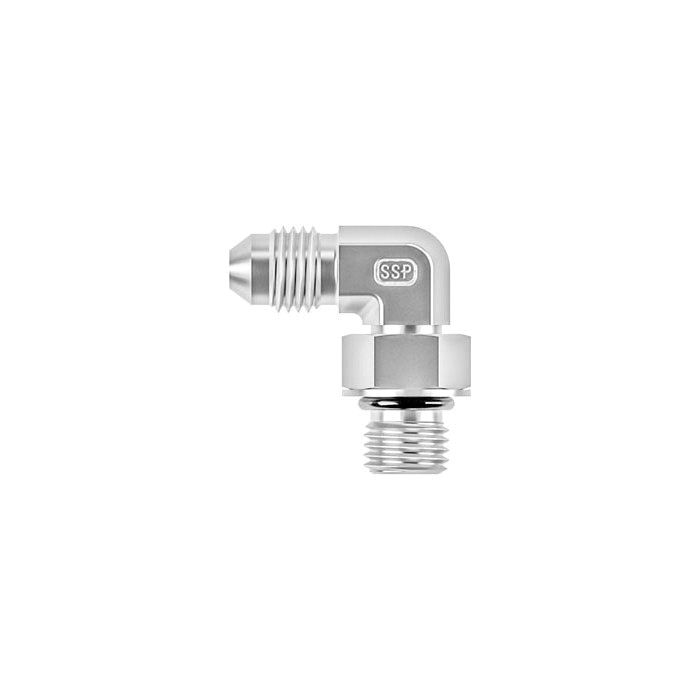

Stainless Steel Adapter, 9/16-18 Male SAE O-Ring Boss (Straight Thread O-Ring) To 7/16-20 Male JIC 37 deg Flare, 90 deg Elbow

Ask A Question

Description & Features

This stainless steel adapter features a 9/16-18 male SAE O-Ring Boss (Straight Thread O-Ring) connection on one end and a 7/16-20 male JIC 37-degree flare on the other. The adapter is a 90-degree elbow, useful for connecting components at right angles.

The Stainless Steel Adapter, 9/16-18 Male SAE O-Ring Boss (Straight Thread O-Ring) To 7/16-20 Male JIC 37 deg Flare, 90 deg Elbow is manufactured by SSP Fittings Corp and has a catalog number of C1CZ78. The G dimension is 1.25, and the M dimension is 0.89.

SKU: J4-6GE

Supplier Part Number (MPN): J4-6GE

Alternate Part Numbers: C1CZ78, MI-08750310, MINO-00766X89801

Specifications

Brand
SSP
Connection Size 1
1/4 in
Connection Size 2
3/8 in
Connection Type
Male SAE Flared, Male SAE Threaded
Connection Type 1
Male SAE 37 deg Flare Tube
Connection Type 2
Male SAE Threaded
Fitting Type
90 deg Elbow
g Dimensions
1-1/4 in
Hex Size
11/16 in
m Dimensions
0.89 in
Material
Stainless Steel
Material Construction
316 Stainless Steel
Maximum Operating Pressure
5000 psi
Thread Sealant
Without Thread Sealant
Thread Size
9/16-18, 7/16-20
Tube Outside Diameter
1/4 in

Similar Products

Model Number Tube O.D. Thread 2 Thread Size G M Price Action
Stainless Steel Adapter, 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 1-1/16-12 Male JIC 37 deg Flare, 90 deg Elbow

J12GE Stainless Male ORB To JIC 90 Elbow

0.75

1-1/16-12

1-1/16-12

1.94

1.66

Stainless Steel Adapter, 7/16-20 Male SAE O-Ring Boss (Straight Thread O-Ring) To 7/16-20 Male JIC 37 deg Flare, 90 deg Elbow

J4GE Stainless Male ORB To JIC 90 Elbow

0.25

7/16-20

7/16-20

1.03

0.89

Stainless Steel Adapter, 9/16-18 Male SAE O-Ring Boss (Straight Thread O-Ring) To 9/16-18 Male JIC 37 deg Flare, 90 deg Elbow

J6GE Stainless Male ORB To JIC 90 Elbow

0.38

9/16-18

9/16-18

1.25

1.06

Stainless Steel Adapter, 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring) To 3/4-16 Male JIC 37 deg Flare, 90 deg Elbow

J8GE Stainless Male ORB To JIC 90 Elbow

0.5

3/4-16

3/4-16

1.45

1.25

Product Questions & Answers (3)

Question by: Dwayne C on May 18, 2025, 8:52 PM
Is this elbow adapter made entirely of stainless?
Answer by: Customer Support on May 20, 2025, 6:29 AM
Yes, this adapter is made of stainless steel.
Question by: Dwight E on Sep 6, 2025, 9:15 PM
9/16-18 on one end and 7/16-20 on the other, that right there matches what I need to go from an ORB port to a JIC line. Just wanna make sure this thing is a true 90 before I order a handful of em.
Answer by: Customer Support on Sep 8, 2025, 9:47 AM
it's a full 90-degree elbow. One end is a 9/16-18 male SAE O-Ring Boss and the other is a 7/16-20 male JIC 37-degree flare, so it'll bridge those two thread types right at a right angle. The G dimension runs 1.25 and the M dimension is 0.89 if you need to check clearance before committing to a quantity.
Question by: Gary F on Dec 7, 2025, 6:59 AM
trying to hook an ORB port over to a JIC line, is this the elbow that does 9/16-18 to 7/16-20?
Answer by: Customer Support on Dec 8, 2025, 6:19 PM
For that kind of hookup, it matches a 9/16-18 male SAE O-Ring Boss on one end and a 7/16-20 male JIC 37 degree flare on the other, built as a 90 degree elbow.
