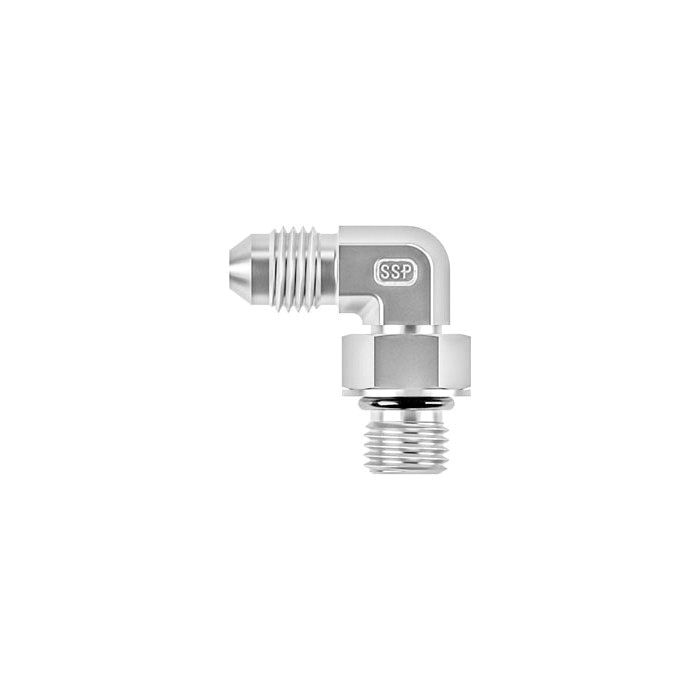

Stainless Steel Adapter, 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring) To 3/4-16 Male JIC 37 deg Flare, 90 deg Elbow

Ask A Question

Description & Features

This 90-degree elbow adapter features 3/4-16 Male SAE O-Ring Boss (Straight Thread O-Ring) to 3/4-16 Male JIC 37 deg Flare connections.

Constructed from durable 316 stainless steel, this Stainless Steel Adapter ensures reliable performance in demanding hydraulic applications. It is manufactured by SSP Fittings Corp.

SKU: J8GE

Supplier Part Number (MPN): J8GE

Alternate Part Numbers: C1DA73, MI-08750356, MINO-00766X89846

Specifications

Brand
SSP
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
Male SAE Flared, Male SAE Threaded
Connection Type 1
Male SAE 37 deg Flare Tube
Connection Type 2
Male SAE Threaded
Fitting Type
90 deg Elbow
g Dimensions
1.45 in
Hex Size
7/8 in
m Dimensions
1-1/4 in
Material
Stainless Steel
Material Construction
316 Stainless Steel
Maximum Operating Pressure
5000 psi
Thread Sealant
Without Thread Sealant
Thread Size
3/4-16
Tube Outside Diameter
1/2 in

Similar Products

Model Number Tube O.D. Thread 2 Thread Size G M Price Action
Stainless Steel Adapter, 1-1/16-12 Male SAE O-Ring Boss (Straight Thread O-Ring) To 1-1/16-12 Male JIC 37 deg Flare, 90 deg Elbow

J12GE Stainless Male ORB To JIC 90 Elbow

0.75

1-1/16-12

1-1/16-12

1.94

1.66

Stainless Steel Adapter, 9/16-18 Male SAE O-Ring Boss (Straight Thread O-Ring) To 7/16-20 Male JIC 37 deg Flare, 90 deg Elbow

J4-6GE Stainless Male ORB To JIC 90 Elbow

0.25

7/16-20

9/16-18, 7/16-20

1.25

0.89

Stainless Steel Adapter, 7/16-20 Male SAE O-Ring Boss (Straight Thread O-Ring) To 7/16-20 Male JIC 37 deg Flare, 90 deg Elbow

J4GE Stainless Male ORB To JIC 90 Elbow

0.25

7/16-20

7/16-20

1.03

0.89

Stainless Steel Adapter, 9/16-18 Male SAE O-Ring Boss (Straight Thread O-Ring) To 9/16-18 Male JIC 37 deg Flare, 90 deg Elbow

J6GE Stainless Male ORB To JIC 90 Elbow

0.38

9/16-18

9/16-18

1.25

1.06

Product Questions & Answers (3)

Question by: Keith K on Oct 4, 2025, 6:41 AM
got a hose end with a 3/4-16 JIC flare, is this the elbow that’ll mate up to it and still seal on an ORB port?
Answer by: Customer Support on Oct 6, 2025, 6:23 AM
For a 3/4-16 JIC 37 degree flare connection on one side and a 3/4-16 SAE O-Ring Boss straight thread port on the other, this adapter matches that setup. It is a 90 degree elbow, so it turns the line while transitioning between JIC flare and ORB.
Question by: Clint C on Jun 8, 2025, 7:01 PM
Just want to make sure this elbow fitting is stainless and not somethin' else.
Answer by: Customer Support on Jun 10, 2025, 3:54 PM
Yes, this adapter is made from 316 stainless steel.
Question by: Brett R on Jan 30, 2026, 11:40 AM
Does the ORB side thread on this thing match up with a 3/4-16 straight thread port, or is that a different spec than what I'm thinking of?
Answer by: Customer Support on Feb 1, 2026, 11:03 AM
Both ends on this adapter run 3/4-16 threads. The SAE O-Ring Boss side is a straight thread connection, so it seals against the port face with an O-ring rather than relying on a tapered thread for the seal. That's the standard 3/4-16 ORB spec, and it'll fit a 3/4 ORB port just fine.
