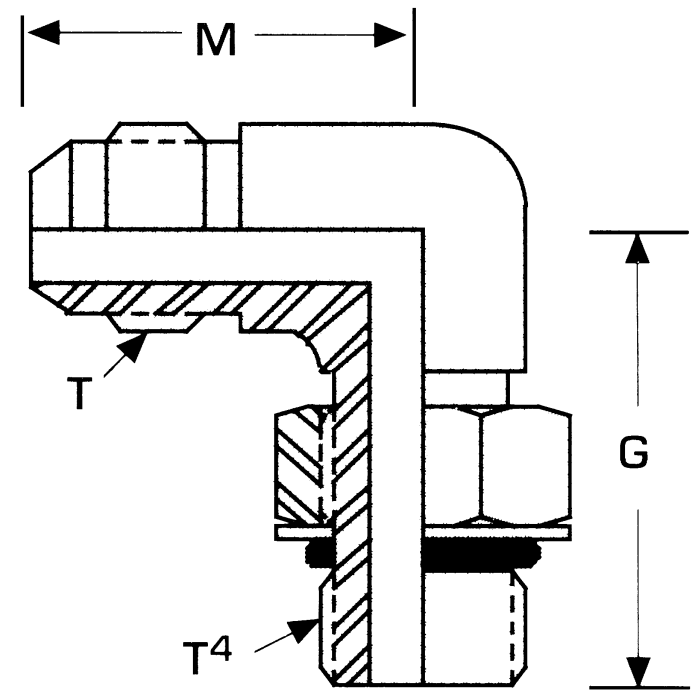

Stainless Steel Adapters, Male SAE O-Ring Boss (Straight Thread O-Ring) To Male JIC 37 deg Flare, 90 deg Elbow

Description & Features

Products

Model Number	Tube O.D.	Thread 2	Thread 1	G	M
J12GE Stainless Male ORB To JIC 90 Elbow	0.75	1-1/16-12	1-1/16-12	1.94	1.66
J4-6GE Stainless Male ORB To JIC 90 Elbow	0.25	7/16-20	9/16-18	1.25	0.89
J4GE Stainless Male ORB To JIC 90 Elbow	0.25	7/16-20	7/16-20	1.03	0.89
J6GE Stainless Male ORB To JIC 90 Elbow	0.38	9/16-18	9/16-18	1.25	1.06
J8GE Stainless Male ORB To JIC 90 Elbow	0.5	3/4-16	3/4-16	1.45	1.25

Product Questions & Answers (1)

Question by: Neil K on Oct 12, 2025, 3:52 PM

Will this fitting work to connect a JIC flare to a SAE O-ring boss at a 90-degree angle?

Answer by: Customer Support on Oct 14, 2025, 9:28 AM

Absolutely, this adapter is designed to connect a male JIC 37-degree flare fitting to a male SAE O-ring boss port, with a 90-degree elbow to change the direction of the connection.
