Stainless Mjic X Male Din2353S

Description & Features

This straight Adaptall fitting connects JIC and DIN ends in hydraulic systems, with a 3/4" JIC male end to a S20 DIN tube male end.

The Stainless Mjic X Male Din2353S is constructed of stainless steel for durability and corrosion resistance. The JIC side features a 1-1/16 - 12 UN thread callout, while the DIN side uses a M30 X 2.0 thread.

SKU: SS9606-12-S20-30

Supplier Part Number (MPN): SS9606-12-S20-30

Specifications

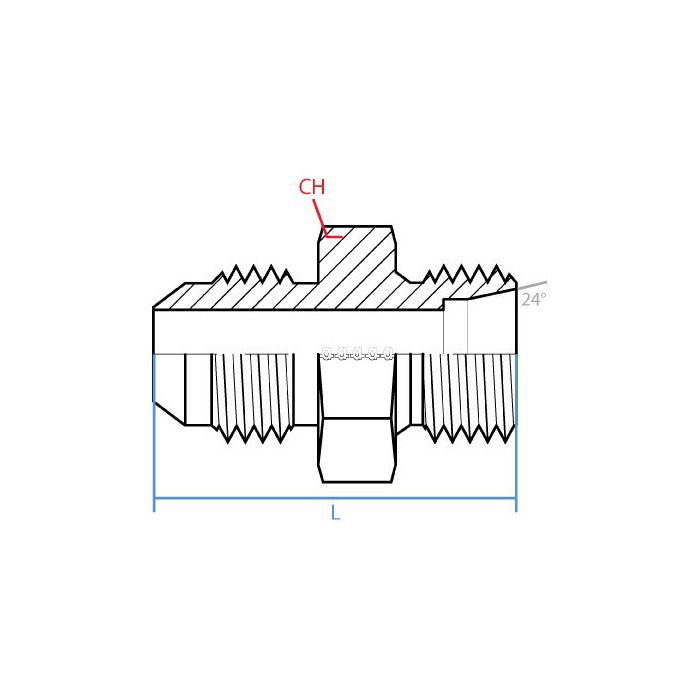

CH Width 33mm	L Length 51.7mm	Adaptall Material Stainless	Adaptall Shape Straight	Side 1 Callout 1-1/16 - 12 UN	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Jic	Side 2 Callout M30 X 2.0	Side 2 Gender M	Side 2 Size S20	Side 2 Type Din Tube	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS9606-12-S20-30	Product Weight 0.45 lbs

Product Questions & Answers (2)

Question by: Gary P on Mar 25, 2026, 10:41 AM

fitting's got a 3/4 JIC on one end and I need to hook into a DIN tube port on the other, this the right part for that?

Answer by: Customer Support on Mar 26, 2026, 12:02 PM

That's what this one does. One end is a 3/4" JIC male with a 1-1/16 - 12 UN thread, and the other is an S20 DIN tube male running M30 X 2.0. Straight configuration, so no angle to account for during installation. If your JIC and DIN sizes line up with those callouts, you're looking at the right fitting.

Question by: Danny R on Aug 8, 2025, 7:48 AM

Reckon this fitting would hold up alright in a hydraulic setup that sees a fair bit of vibration?

Answer by: Customer Support on Aug 9, 2025, 9:18 PM

Constructed from stainless steel, this fitting is made for durability and corrosion resistance, so it should handle typical hydraulic system vibration without issue.
