Stainless Mjic X Mbspp

Description & Features

This straight Adaptall fitting is a stainless MJIC to MBSPP adapter.

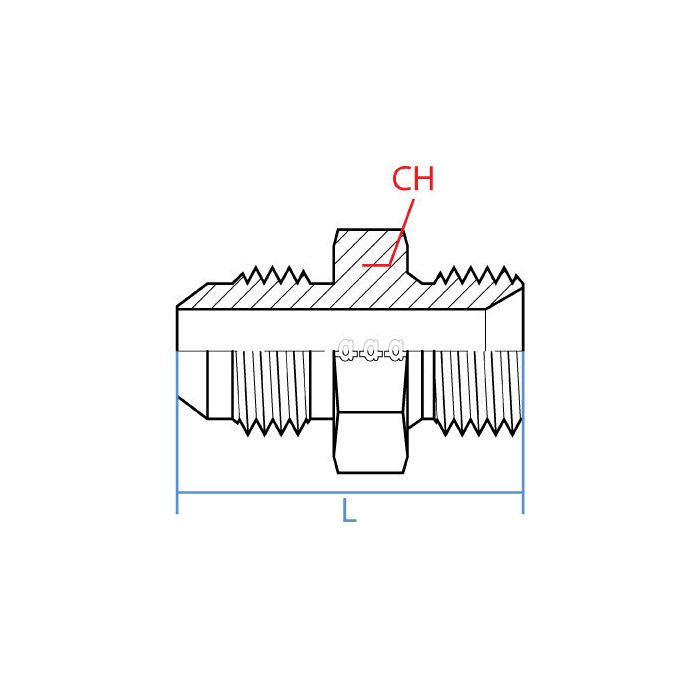

It features a 1/2" male JIC end with a 3/4 - 16 UNF thread and a 3/8" male BSPP end with a G 3/8 - 19 thread. The Stainless Mjic X Mbspp adapter has a 22mm wrench flat and an overall length of 41.6mm.

SKU: SS9005-08-06

Supplier Part Number (MPN): SS9005-08-06

Specifications

CH Width 22mm	L Length 41.6mm	Adaptall Material Stainless	Adaptall Shape Straight	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout G 3/8 - 19	Side 2 Gender M	Side 2 Size 3/8"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number SS9005-08-06	Product Weight 0.15 lbs

Product Questions & Answers (1)

Question by: Wade L on May 15, 2025, 10:46 AM

Got a piece of equipment running metric BSPP fittings on one end and JIC on the other, does this adapter go between them without needing any extra pieces?

Answer by: Customer Support on May 16, 2025, 12:37 PM

That's what this one's built for. One end is a 3/8" male BSPP with a G 3/8-19 thread, and the other is a 1/2" male JIC running 3/4-16 UNF. Both ends are male, so you'd be threading this directly into female JIC and female BSPP ports on each side. No additional fittings needed to bridge those two thread standards.
