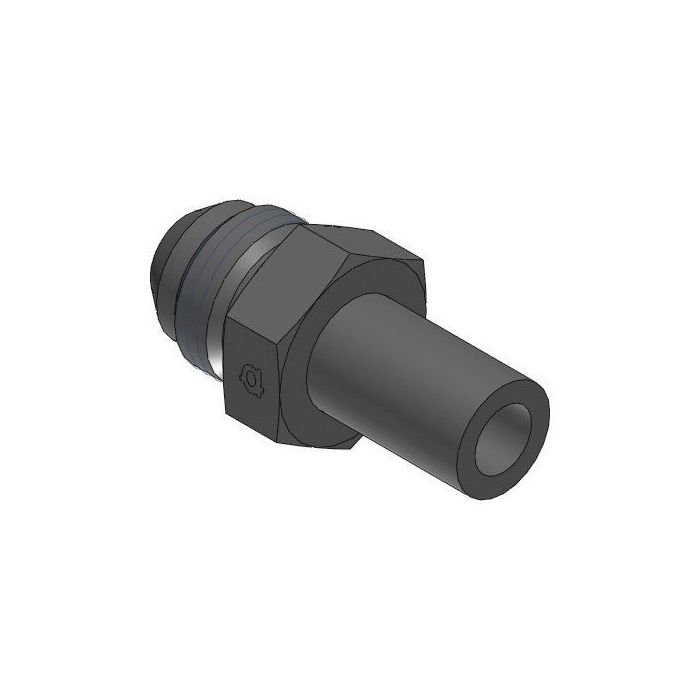

main product photo

Stainless Mjic X Mm Standpipe

Ask A Question

Description & Features

The Stainless Mjic X Mm Standpipe is engineered for durability and reliability in demanding industrial environments. Crafted from high-quality stainless steel, this standpipe offers exceptional corrosion resistance, making it ideal for use in harsh conditions. The straight design facilitates straightforward installation and integration into existing systems.

This standpipe features a male JIC connection on one end, measuring 1-1/16 - 12 UN with a 3/4" size, and a female DIN standpipe connection on the other end, precisely dimensioned at 20mm. With an overall length of 63.7mm and a width of 32mm, it is designed to fit seamlessly into various hydraulic applications, ensuring optimal performance and compatibility with standard fittings.

SKU: SS9200-12-20

Supplier Part Number (MPN): SS9200-12-20

Specifications

Brand
adapt-all
Connection Size 1
3/4 in
Connection Size 2
20 mm
Connection Type
Female Standpipe, Male JIC
Connection Type 1
Male JIC
Connection Type 2
Female DIN Standpipe
Dimension Standards
DIN 2353, ISO 8434-1, ISO 8434-2, SAE J514
Dimensions
64 mm L
Fitting Type
Adapter
Hex Size
32 mm
Material
Stainless Steel
Material Construction
316 Stainless Steel
Series
SS9200 Series
Thread Size
1-1/16-12

Product Questions & Answers (1)

Question by: Melvin R on Apr 20, 2025, 6:57 AM
Got a fitting that's 20mm DIN standpipe on one end, will this adapter hook up to a 3/4" JIC male line on the other side?
Answer by: Customer Support on Apr 21, 2025, 8:08 AM
That's what this piece is built for. One end is a male JIC connection, 1-1/16-12 UN thread, 3/4" size, and the other end is a female 20mm DIN standpipe. So if you've got a JIC male line and a DIN standpipe port, this bridges the two without any extra fittings in between.
