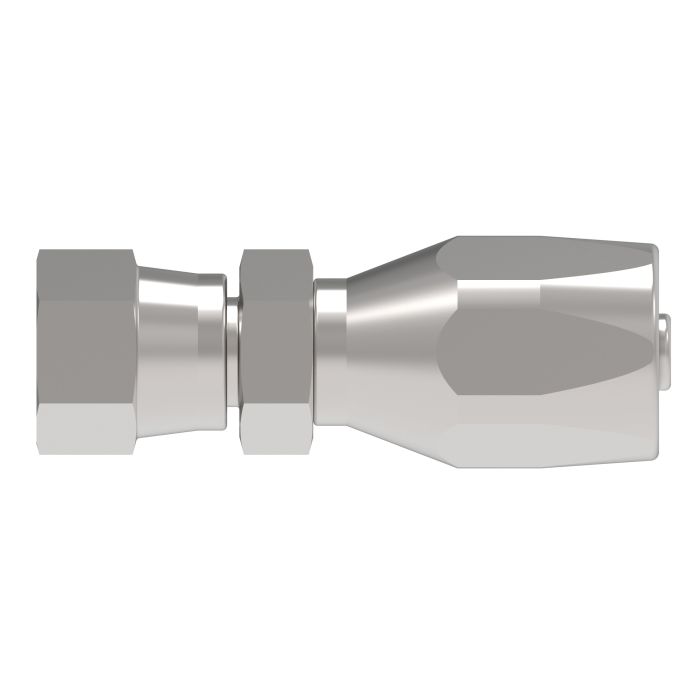

Stainless Steel Reusable 1 Wire Braid Reduced Bore Two-Piece Fitting, 7/8-14 Female JIC 37 deg Flare Swivel, -10 Hose, Straight

Ask A Question

Description & Features

Crafted by Danfoss Power Solutions, this fitting is designed for high-performance industrial applications. With a female JIC 37-degree flare swivel end and compatibility with -10 hoses, it ensures secure and efficient connections. The fitting boasts a 7/8-14 threading, minimizing the risk of leaks and ensuring reliable operation.

Constructed from durable 316 stainless steel, it resists corrosion and delivers long-lasting performance. Ideal for use with one-wire braid hoses, this two-piece fitting is reusable, allowing for easy maintenance and cost efficiency over time.

Engineered with precision to meet high standards, the fitting reduces bore size for better control of flow rates. The hex size of 1.12 inches allows for easy installation and adjustment.

MPN: C1BH45

Supplier Part Number: 259-4411-10

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
3.1 in
Compatible Hose ID
0.63 in
Compatible Tube OD
0.63 in
Connection Size 1
5/8 in
Connection Size 2
5/8 in
Connection Type
Female JIC Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female SAE 37 deg JIC Swivel
Construction Style
Reusable
Cut-Off Factor
1.812 in
d Dimensions
1.81 in
Dimensions
3.1 in L
End Connection Torque
54 to 67 lb-ft
End Gender 1
Female
End Size 1
7/8 in
Finish
Zinc-Plated
Fitting Type
Hose Fitting
For Use With
1503, 2580, 2651, FC234, FC300, FC321, FC350, FC355 and FC802 Series A/C and Refrigeration Hoses
Hex Size
1-1/8 in, 1 in
Hose Dash Size
10
Inside Diameter
0.46 in
Material
Stainless Steel
Material Construction
316 Stainless Steel
Series
4411 Series
Thread Sealant
Without Thread Sealant
Thread Size
7/8-14
Thread Type
UNF
Tube Outside Diameter 1
0.63 in

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Lynn P on Jun 26, 2025, 6:19 AM
trying to swap out an old hose end, is this the straight female JIC swivel with 7/8-14 threads for a -10 hose
Answer by: Customer Support on Jun 27, 2025, 4:25 PM
You’re looking at a straight, two-piece reusable stainless fitting with a 7/8-14 female JIC 37 degree flare swivel on one end and a -10 hose connection on the other.
Question by: Darryl W on Apr 24, 2025, 9:42 PM
got a -10 one-wire braid hose on the bench. is this the right reusable end for it, or am i gonna be fighting it
Answer by: Customer Support on Apr 26, 2025, 1:39 PM
For a -10 hose in a one wire braid construction, this is the matching reusable two-piece fitting. The hose side is sized for -10, and the fitting style is specifically called out as reusable for 1 wire braid hoses.
