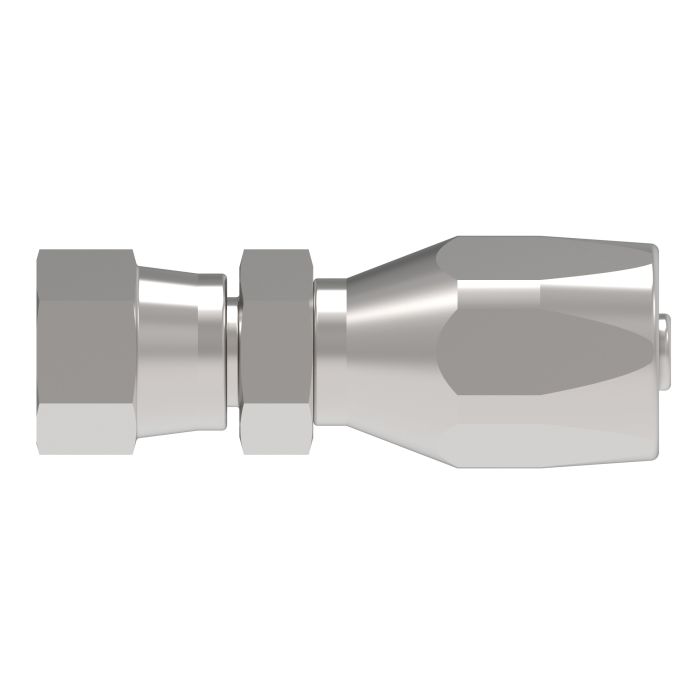

Stainless Steel Reusable 1 Wire Braid Reduced Bore Two-Piece Fitting, 1-1/16-12 Female JIC 37 deg Flare Swivel, -12 Hose, Straight

Ask A Question

Description & Features

The Eaton Aeroquip Stainless Steel Reusable fitting is engineered to meet demanding industrial applications. This robust fitting features a 1-1/16-12 Female JIC 37-degree Flare Swivel and supports a -12 hose size, ensuring secure connections in high-pressure environments.

Constructed from premium stainless steel, it offers superior durability and resistance to corrosion. The two-piece design simplifies installation, allowing for convenient reuse without compromising performance. With a reduced bore, it maintains optimal fluid flow and system efficiency.

Compatible with SAE 37 standards, this fitting is ideal for a wide range of industrial systems where reliable hose connections are critical.

MPN: C1BH46

Supplier Part Number: 259-4411-12

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
3.49 in
Connection Size 1
3/4 in
Connection Size 2
3/4 in
Connection Type
Female JIC Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female SAE 37 deg JIC Swivel
Construction Style
Reusable
Cut-Off Factor
1.92 in
d Dimensions
1.92 in
Dimensions
3.49 in L x 1.25 in W x 1.25 in H
End Gender 1
Female
End Size 1
12
End Size 2
3/4 in
Finish
Zinc-Plated
Fitting Type
Hose Fitting
For Use With
1503, 2580, 2651, FC234, FC300, FC321, FC350, FC355 and FC802 Series A/C and Refrigeration Hoses
Hex Size
1.26 in
Hose Dash Size
12
Inside Diameter
1/2 in
Material
Stainless Steel
Material Construction
316 Stainless Steel
Reusable Socket Hex Size
32 mm
Series
4411 Series
Thread Sealant
Without Thread Sealant
Thread Size
1-1/16-12
Thread Type
UN

Product Questions & Answers (4)

Sign In Hover me Please sign in to submit a question
Question by: Dwayne T on Apr 1, 2025, 2:34 PM
got a -12 hose and need a straight female JIC swivel, is this the right one or am i off a size
Answer by: Customer Support on Apr 2, 2025, 3:12 PM
The hose side is sized for -12 hose, and the threaded end is a 1-1/16-12 female JIC 37 degree flare swivel. If your mating connection is a male JIC 37 degree flare with 1-1/16-12 threads, and your hose is -12, this matches those sizes in a straight configuration.
Question by: Bobby S on Oct 4, 2025, 3:39 PM
What kind of fluid is this stainless steel fitting good for?
Answer by: Customer Support on Oct 6, 2025, 6:30 AM
DocumentLink_Fluid_Compatibility_1
http://eaton.com/ecm/groups/public/@pub/@eaton/@hyd/documents/content/pct_3249345.pdf has fluid compatibility information.
Question by: Cody C on Aug 12, 2025, 8:31 AM
got a -12 hose with a one wire braid, is this the kind of reusable end that’ll match up?
Answer by: Customer Support on Aug 14, 2025, 6:24 AM
For a -12 one wire braid hose, this fitting is the reusable two-piece style made for that setup, with a reduced bore design. The connection end is a 1-1/16-12 female JIC 37 degree flare swivel.
Question by: Hugh R on Mar 22, 2026, 4:48 PM
fitting says two-piece reusable -- does that mean I can pull it apart and put it back on a different hose if I need to swap things around?
Answer by: Customer Support on Mar 24, 2026, 6:11 AM
Reusable two-piece fittings are built exactly for that kind of flexibility. The socket and nipple separate, so you can remove the fitting from one hose end and reinstall it on a replacement hose without needing a new fitting each time. That makes them a practical choice when downtime has to stay short and you want to keep spare parts costs down.
