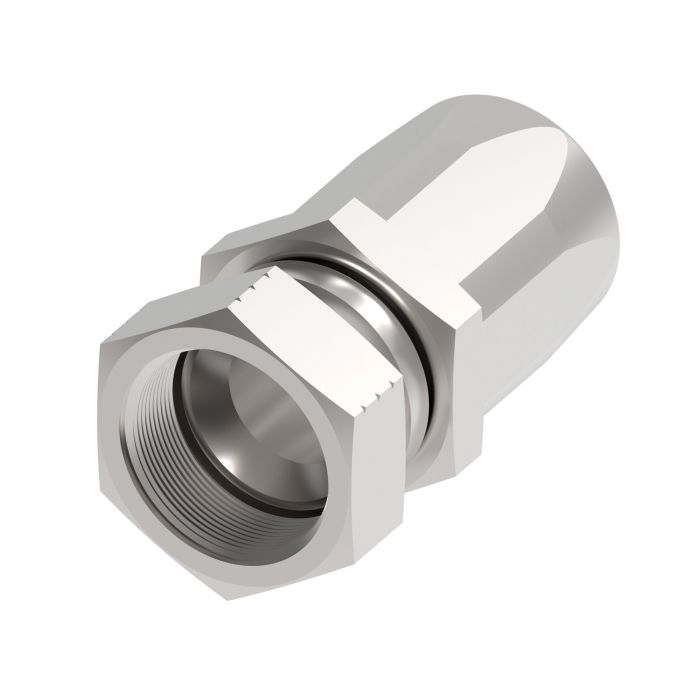

Stainless Steel Reusable 1 Wire Braid Reduced Bore Two-Piece Fitting, 1-5/16-12 Female JIC 37 deg Flare Swivel, -16 Hose, Straight

Description & Features

This high-quality fitting from Danfoss Power Solutions provides a robust and reliable connection for various industrial applications. It features a one-wire braid reduced bore construction and a two-piece design ensuring durability and secure fitment.

The female JIC 37-degree flare swivel connection and -16 hose size offers seamless integration with your existing systems. Constructed from stainless steel this fitting resists corrosion and enhances longevity even in demanding environments.

Engineered to precise specifications the fitting boasts a 1-5/16-12 thread ensuring compatibility and ease of installation without the need for additional sealants. The hex size of 1.44 allows for straightforward handling and installation.

Supplier Part Number: 259-4411-16

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 3.19 in	Connection Size 1 1 in	Connection Size 2 1 in	Connection Type Female JIC Swivel, Hose	Connection Type 1 Hose	Connection Type 2 Female SAE 37 deg JIC Swivel	Construction Style Reusable	Cut-Off Factor 1.92 in	d Dimensions 1.93 in	Dimensions 3.19 in L x 1.5 in W x 1.5 in H	End Gender 1 Female	End Size 1 16	End Size 2 1 in	Finish Zinc-Plated	Fitting Type Hose Fitting	For Use With 1503, 2580, 2651, FC234, FC300, FC321, FC350, FC355 and FC802 Series A/C and Refrigeration Hoses	Hex Size 1-1/2 in	Hose Dash Size 16	Inside Diameter 0.82 in	Material Stainless Steel	Material Construction 316 Stainless Steel	Reusable Socket Hex Size 37 mm	Series 4411 Series	Thread Sealant Without Thread Sealant	Thread Size 1-5/16-12	Thread Type UN

Product Questions & Answers (2)

Question by: Neal B on Oct 3, 2025, 3:41 PM

got a -16 hose with one wire braid, is this the right reusable end for it?

Answer by: Customer Support on Oct 4, 2025, 4:50 PM

For a -16 hose in a one wire braid style, this fitting matches that setup since it is a reusable, two piece, reduced bore fitting built for 1 wire braid and sized for -16 hose.

Question by: Phil M on Feb 5, 2026, 9:24 AM

stainless steel on this one -- does that mean it holds up decent when moisture or chemicals are around it?

Answer by: Customer Support on Feb 7, 2026, 6:23 AM

Stainless steel was the right call for exactly that kind of environment. Corrosion resistance is built into the material itself, so exposure to moisture, humidity, or a fair number of industrial fluids won't eat away at it the way carbon steel fittings tend to degrade over time. For use running in wash-down areas or anywhere condensation is a regular issue, it makes a noticeable difference in how long the fitting stays in service.
