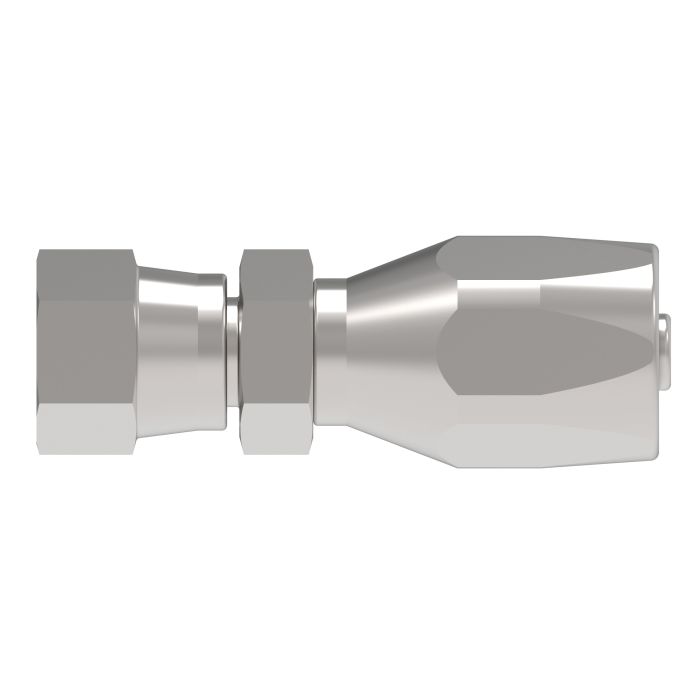

main product photo

Stainless Steel Reusable 1 Wire Braid Reduced Bore Two-Piece Fitting, 9/16-18 Female JIC 37 deg Flare Swivel, -06 Hose, Straight

Ask A Question

Description & Features

The Aeroquip Reusable Fit 6 F JIC Swivel provides a reliable solution for industrial hose applications. Its robust construction featuring stainless steel ensures durability and longevity even in demanding environments.

This fitting designed for a 9/16-18 Female JIC 37-degree flare swivel is compatible with -06 hoses and supports high-pressure operations. The two-piece reduced bore design facilitates ease of installation while maintaining optimal flow characteristics.

Mate with a 1 wire braid for superior performance and enhanced strength. Engineered to be reusable this fitting reduces waste and minimizes downtime making it an economical choice for various industrial needs.

With a hex size of 0.81 inches and threads of 9/16-18 it fits securely and maintains a leak-proof connection. No mandrel is required for assembly simplifying the installation process.

MPN: C1BH48

Supplier Part Number: 259-4411-6

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
2.33 in
Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Type
Female JIC Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female SAE 37 deg JIC Swivel
Construction Style
Reusable
Cut-Off Factor
1.43 in
d Dimensions
1.43 in
Dimensions
2.33 in L x 0.81 in W x 0.81 in H
End Gender 1
Female
End Size 1
9/16 in
End Size 2
3/8 in
Finish
Zinc-Plated
Fitting Type
Hose Fitting
For Use With
1503, 2580, 2651, FC234, FC300, FC321, FC350, FC355 and FC802 Series A/C and Refrigeration Hoses
Hex Size
0.67 in
Hose Dash Size
06
Inside Diameter
0.24 in
Material
Stainless Steel
Material Construction
316 Stainless Steel
Reusable Socket Hex Size
21 mm
Series
4411 Series
Thread Sealant
Without Thread Sealant
Thread Size
9/16-18
Thread Type
UNF

Product Questions & Answers (3)

Sign In Hover me Please sign in to submit a question
Question by: Dean G on Mar 18, 2026, 3:48 PM
trying to swap out a fitting on a -06 hose, is this one the straight female JIC swivel with 9/16-18 threads?
Answer by: Customer Support on Mar 20, 2026, 6:28 AM
For a fit check, the key callouts on this part are 9/16-18 female JIC 37 degree flare swivel on one end and -06 hose size on the other, in a straight configuration. It’s also a two-piece reusable fitting with a reduced bore.
Question by: Shane W on May 17, 2025, 8:32 AM
Will this fitting hold up if I'm running hydraulics pretty much all day long?
Answer by: Customer Support on May 19, 2025, 7:08 AM
This Aeroquip fitting's made with stainless steel, so it’s durable enough for demanding industrial applications where you're pushing it hard consistently.
Question by: Eddie B on May 5, 2025, 2:49 PM
fitting says reusable -- does that mean I can pull it apart and put it back on a different hose if I need to swap things around?
Answer by: Customer Support on May 7, 2025, 6:55 AM
that's the whole point of the reusable design. You can disassemble it and reinstall it on a new -06 hose without needing a press or any special tooling. No mandrel required either, so the swap-out process is pretty straightforward. Just make sure the hose you're moving it to is a 1 wire braid type and the right dash size, and you're good to go.
