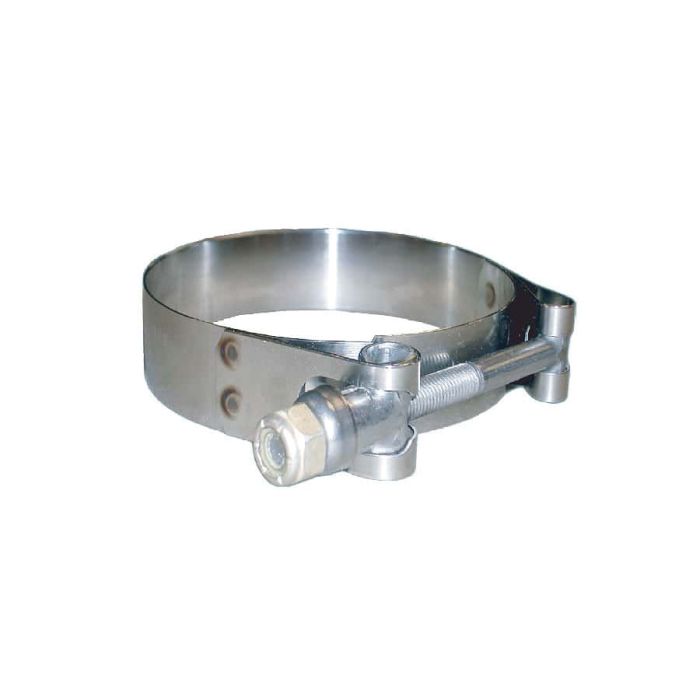

All Stainless Steel T-Bolt Clamp For 1-5/8 to 1-3/4 Inch Hose ID, 2.03 - 2.34 Inch Hose OD Range

Description & Features

Designed for critical applications this T-Bolt clamp is constructed from high-quality 316 stainless steel for the band and 18-8 stainless steel for the T-bolt and lock nut ensuring exceptional strength and reliability.

Suitable for hose IDs ranging from 1-5/8 to 1-3/4 inches and hose ODs from 2.03 to 2.34 inches this clamp offers superior clamping tension compared to standard worm gear clamps while requiring less installation torque.

The 3/4 inch wide band design with rounded edges protects soft rubber or silicone hose materials preventing any extrusion or damage during use.

The robust construction of this T-Bolt clamp makes it the perfect choice for demanding environments where security and durability are paramount.

Supplier Part Number: 720-1341

Specifications

Brand Trident Rubber LLC	Brand Trident Rubber	Pack Size 1.00	UOM EA	Hose O.D. Range (in) 2.03 - 2.34	Supplier Part Number 720-1341	Use With Hose I.D.'s (in) 1-5/8 to 1-3/4	Product Weight 0.13 lbs	Alternate Part Numbers Alternate Part Number C1FT84

Similar Products

Model Number	Use With Hose I.D.'s (in)	Hose O.D. Range (in)
720-1000 Stainless Steel T-Bolt Clamp	1	1.28 - 1.59
720-10000 Stainless Steel T-Bolt Clamp	10	10.25 - 10.69
720-1120 Stainless Steel T-Bolt Clamp	1-3/8 to 1-1/2	1.78 - 2.09
720-1140 Stainless Steel T-Bolt Clamp	1-1/8 to 1-1/4	1.53 - 1.84
720-2000 Stainless Steel T-Bolt Clamp	1-7/8 to 2	2.28 - 2.59
720-2120 Stainless Steel T-Bolt Clamp	2-3/8 to 2-1/2	2.75 - 3.625
720-2140 Stainless Steel T-Bolt Clamp	2-1/8 to 2-1/4	2.53 - 2.84
720-2340 Stainless Steel T-Bolt Clamp	2-5/8 to 2-3/4	3.03 - 3.34
720-3000 Stainless Steel T-Bolt Clamp	2-7/8 to 3-1/4	3.28 - 3.59
720-3000L Stainless Steel T-Bolt Clamp	2-7/8 to 3-1/4	3.37 - 3.94
720-3120L Stainless Steel T-Bolt Clamp	3-1/2	3.87 - 4.44
720-4000 Stainless Steel T-Bolt Clamp	4	4.28 - 4.59
720-4000L Stainless Steel T-Bolt Clamp	4	4.37 - 4.94
720-5000L Stainless Steel T-Bolt Clamp	5	5.37 - 5.94
720-6000 Stainless Steel T-Bolt Clamp	6	6.30 - 6.74
720-6000L Stainless Steel T-Bolt Clamp	6	6.53 - 7.10
720-8000 Stainless Steel T-Bolt Clamp	8	8.30 - 8.87

Product Questions & Answers (1)

Question by: Norm C on Oct 23, 2025, 4:27 PM

clamp says it works for 1-5/8 to 1-3/4 inch hose ID -- does that mean it'll fit both sizes or just one end of that range?

Answer by: Customer Support on Oct 24, 2025, 6:46 PM

It covers the full range between those two sizes, not just the endpoints. Any hose with an ID from 1-5/8 inch up to 1-3/4 inch falls within what this clamp is built for. The OD range it handles runs from 2.03 to 2.34 inches, so as long as your hose OD lands in there, you're good to go.
