All Stainless Steel T-Bolt Clamps

Description & Features

Features

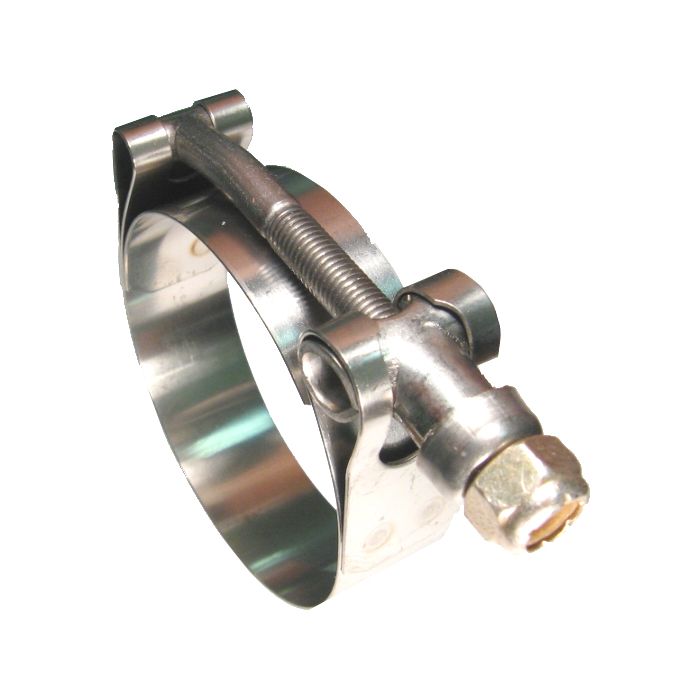

3/4 inch wide 316 stainless steel band. 18-8 stainless steel T-bolt and lock nut (with nylon insert). Very strong and secure for critical applications. Rounded band edges protect soft rubber or silicone hose materials. T-Bolt clamps provide greater clamping tension than worm gear clamps with less installation torque. Wide band prevents hose extrusions.

Products

Model Number	Use With Hose I.D.'s (in)	Hose O.D. Range (in)
720-1000 Stainless Steel T-Bolt Clamp	1	1.28 - 1.59
720-10000 Stainless Steel T-Bolt Clamp	10	10.25 - 10.69
720-1120 Stainless Steel T-Bolt Clamp	1-3/8 to 1-1/2	1.78 - 2.09
720-1140 Stainless Steel T-Bolt Clamp	1-1/8 to 1-1/4	1.53 - 1.84
720-1340 Stainless Steel T-Bolt Clamp	1-5/8 to 1-3/4	2.03 - 2.34
720-2000 Stainless Steel T-Bolt Clamp	1-7/8 to 2	2.28 - 2.59
720-2120 Stainless Steel T-Bolt Clamp	2-3/8 to 2-1/2	2.75 - 3.625
720-2140 Stainless Steel T-Bolt Clamp	2-1/8 to 2-1/4	2.53 - 2.84
720-2340 Stainless Steel T-Bolt Clamp	2-5/8 to 2-3/4	3.03 - 3.34
720-3000 Stainless Steel T-Bolt Clamp	2-7/8 to 3-1/4	3.28 - 3.59
720-3000L Stainless Steel T-Bolt Clamp	2-7/8 to 3-1/4	3.37 - 3.94
720-3120L Stainless Steel T-Bolt Clamp	3-1/2	3.87 - 4.44
720-4000 Stainless Steel T-Bolt Clamp	4	4.28 - 4.59
720-4000L Stainless Steel T-Bolt Clamp	4	4.37 - 4.94
720-5000L Stainless Steel T-Bolt Clamp	5	5.37 - 5.94
720-6000 Stainless Steel T-Bolt Clamp	6	6.30 - 6.74
720-6000L Stainless Steel T-Bolt Clamp	6	6.53 - 7.10
720-8000 Stainless Steel T-Bolt Clamp	8	8.30 - 8.87

Product Questions & Answers (1)

Question by: Terry M on Apr 26, 2025, 10:36 AM

Would these clamps work okay on silicone hoses without cutting into them?

Answer by: Customer Support on Apr 27, 2025, 5:27 PM

These T-bolt clamps have rounded band edges specifically to prevent damage to soft hoses like silicone. The wider band also helps prevent the hose from squeezing out.
