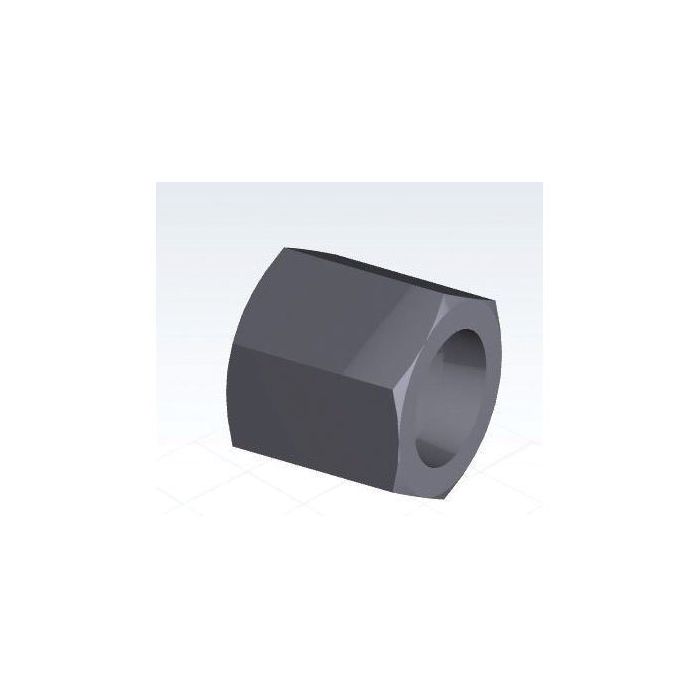

Stainless Steel Tube Fitting, 0.63 Inch Tube OD, Female JIC 37 deg Flare Nut

Description & Features

This SSP stainless steel tube fitting features a 0.63 inch tube OD and a female JIC 37 deg flare nut, designed for secure and reliable connections in hydraulic systems.

The fitting has a thread size of 7/8-14 and measures 0.97 inches in length. This Stainless Steel Tube Fitting, 0.63 Inch Tube OD, Female JIC 37 deg Flare Nut, ensures high performance and durability in demanding environments.

SKU: J10N

Supplier Part Number (MPN): J10N

Alternate Part Numbers: C1CZ16, MI-08750268, MINO-00766X89759

Specifications

Brand
SSP
Connection Type
Male JIC
Dimension Standards
ANSI/ASME B1.1, ASME B31.3, SAE J514
Fitting Type
Nut
Hex Size
1 x 1 in
Material
Stainless Steel
Material Construction
316 Stainless Steel
Series
J-N Series
Thread Size
7/8-14

Similar Products

Model Number Connection Size Price Action
Stainless Steel Tube Fitting, 1.25 Inch Tube OD, Female JIC 37 deg Flare Nut

J20N Stainless Steel Tube JIC Nut

Stainless Steel Tube Fitting, 0.38 Inch Tube OD, Female JIC 37 deg Flare Nut

J6N Stainless Steel Tube JIC Nut

Stainless Steel Tube Fitting, 0.75 Inch Tube OD, Female JIC 37 deg Flare Nut

J12N Stainless Steel Tube JIC Nut

Stainless Steel Tube Fitting, 0.19 Inch Tube OD, Female JIC 37 deg Flare Nut

J3N Stainless Steel Tube JIC Nut

Stainless Steel Tube Fitting, 0.25 Inch Tube OD, Female JIC 37 deg Flare Nut

J4N Stainless Steel Tube JIC Nut

Stainless Steel Tube Fitting, 0.31 Inch Tube OD, Female JIC 37 deg Flare Nut

J5N Stainless Steel Tube JIC Nut

Stainless Steel Tube Fitting, 1.00 Inch Tube OD, Female JIC 37 deg Flare Nut

J16N Stainless Steel Tube JIC Nut

Product Questions & Answers (4)

Question by: Glen C on Apr 4, 2025, 10:22 AM
got a 5/8 tube line i need to terminate with a JIC connection, will this nut work for that?
Answer by: Customer Support on Apr 5, 2025, 6:26 PM
For 5/8 inch OD tubing with a JIC 37 degree flare connection, yes this is the right piece. The J10N is a stainless steel flare nut built specifically for 0.63 inch tube OD and it threads onto a 7/8-14 JIC male fitting. Just make sure your tube end is properly flared to 37 degrees before assembly and you'll have a solid, leak-resistant connection.
Question by: Billy K on Jan 24, 2026, 8:38 AM
So, this here nut fits a 5/8" tube, right? Just want to make sure before I order a bunch.
Answer by: Customer Support on Jan 25, 2026, 10:21 AM
that's correct. This stainless steel tube fitting is designed for use with a 0.63 inch (5/8") tube OD.
Question by: Kent H on Apr 12, 2025, 8:30 PM
got a 5/8 inch stainless tube, is this the right nut for a 37 degree JIC flare setup?
Answer by: Customer Support on Apr 14, 2025, 6:36 AM
For a 0.63 inch tube OD, this is a stainless flare nut made for a female JIC 37 degree flare connection, so it matches a 5/8 inch tube size in that style.
Question by: Warren B on Apr 18, 2025, 6:19 PM
trying to figure out if this nut'll work with my 5/8 tube line, what size thread does it cut onto?
Answer by: Customer Support on Apr 20, 2025, 1:43 PM
The mating thread on this JIC nut is 7/8-14, which is the standard thread size paired with 5/8 inch OD tubing on 37 degree flare connections. If your fitting body or union is spec'd for 7/8-14, you're good to go.
