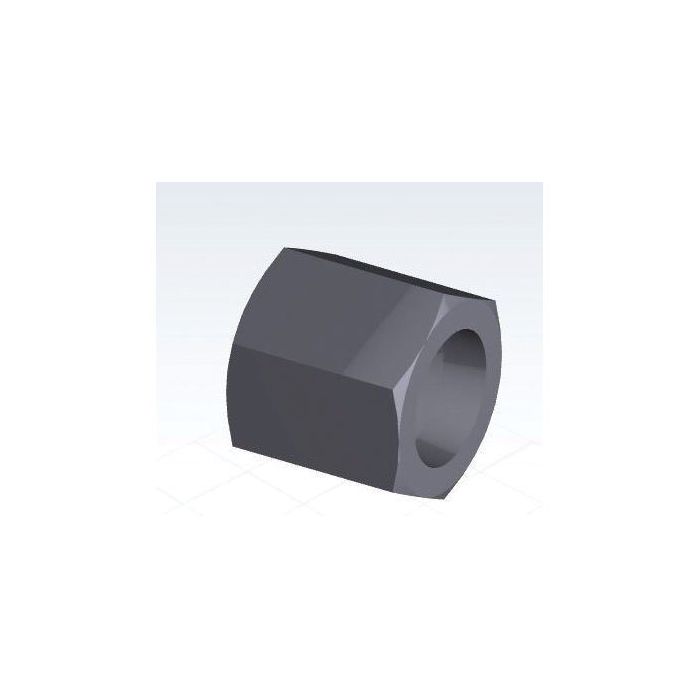

Stainless Steel Tube Fitting, 1.25 Inch Tube OD, Female JIC 37 deg Flare Nut

Description & Features

Manufactured from stainless steel for corrosion resistance in demanding hydraulic and fluid system environments, this Stainless Steel Tube Fitting, 1.25 Inch Tube OD, Female JIC 37 deg Flare Nut from SSP Fittings Corp is designed for use with 1.25-inch OD tubing and features a 1-5/8-12 thread. The 37-degree JIC flare design provides a reliable metal-to-metal seal commonly specified in high-pressure hydraulic lines and industrial fluid circuits.

With an overall length of 1.22 inches, this flare nut is a direct-connection component suited for applications where stainless steel construction is required for compatibility with aggressive media or elevated-temperature service conditions.

SKU: J20N

Supplier Part Number (MPN): J20N

Alternate Part Numbers: C1GM93, MI-08750295, MINO-00766X89786

Specifications

Brand Ssp Fittings Corp	Brand SSP Fittings Corp	Pack Size 1.00	UOM EA	L 1.22	Supplier Part Number J20N	Thread 2 1-5/8-12	Tube O.D. 1.25	Alternate Part Numbers Alternate Part Number C1GM93, Alternate Part Number MI-08750295, Alternate Part Number MINO-00766X89786	Tube O.D. 1.25	Product Weight 0.57 lbs

Similar Products

Model Number	Tube O.D.	Thread 2	L
J10N Stainless Steel Tube JIC Nut	0.63	7/8-14	0.97
J12N Stainless Steel Tube JIC Nut	0.75	1-1/16-12	1.02
J4N Stainless Steel Tube JIC Nut	0.25	7/16-20	0.61
J6N Stainless Steel Tube JIC Nut	0.38	9/16-18	0.72
J16N Stainless Steel Tube JIC Nut	1	1-5/16-12	1.12
J20N Stainless Steel Tube JIC Nut	1.25	1-5/8-12	1.22
J3N Stainless Steel Tube JIC Nut	0.19	3/8-24	0.6
J5N Stainless Steel Tube JIC Nut	0.31	1/2-20	0.67

Product Questions & Answers (2)

Question by: Patty S on Nov 17, 2025, 1:49 PM

Hey, I need a stainless fitting for some hydraulic lines. This here is just the nut, right?

Answer by: Customer Support on Nov 18, 2025, 5:12 PM

That's correct. This stainless steel fitting is just the female JIC 37-degree flare nut, designed for use with 1.25-inch OD tubing. You'll need the mating sleeve and fitting body to complete the connection.

Question by: Duane R on Aug 28, 2025, 7:41 PM

Got a 1-1/4 inch OD tube line I'm trying to cap off with a JIC fitting, this the right nut for that?

Answer by: Customer Support on Aug 30, 2025, 4:06 PM

For 1.25-inch OD tubing with a JIC connection, yeah, this is the one. It's a female JIC 37-degree flare nut built specifically for that tube size, and the thread is 1-5/8-12, which is standard for this tube OD in JIC applications. The 37-degree flare seats metal-to-metal, so you get a solid seal without relying on any gasket or extra sealing material.
