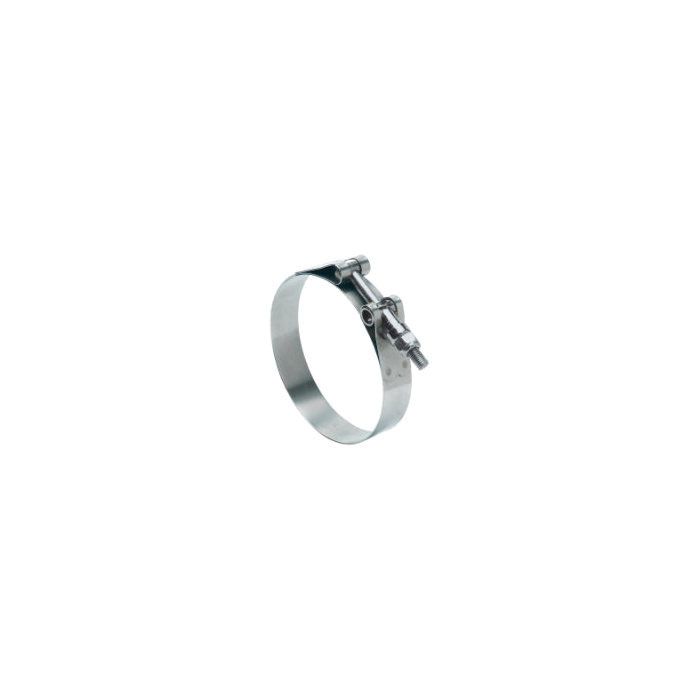

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 1.19 To 1.44 Inch Diameter

Ask A Question

Description & Features

The TBC Series Stainless Steel T-Bolt Band Clamp 0.75 Inch Width 1.19 To 1.44 Inch Diameter by Ideal Clamp Products is an indispensable component for industrial clamping requirements. This clamp features a durable 301 stainless steel band with a thickness of .025 inches and a robust carbon steel bolt equipped with a self-locking nut.

Utilizing a hexagon T-bolt for tightening it ensures exceptional torque capabilities with a maximum of 70 in. lbs. The 0.75-inch band width offers the right balance between strength and flexibility making it well-suited for a variety of industrial applications where reliable clamping is a priority.

With a minimum diameter of 1.1875 inches and a maximum diameter of 1.4375 inches it accommodates a wide range of hose and tube sizes providing the versatility and adaptability needed in diverse industrial settings.

MPN: 300500131051

Supplier Part Number: 300500131051

Specifications

Brand
Ideal Clamp Products
Brand
Ideal Clamp Products
Pack Size
1.00
UOM
EA
Maximum Diameter
1.44
Minimum Diameter
1.19
Supplier Part Number
300500131051
Product Weight
0.10 lbs
Alternate Part Numbers
Alternate Part Number 30050-0131, Alternate Part Number 30050-0131-051, Alternate Part Number C1GM46, Alternate Part Number MI-01826288, Alternate Part Number MINO-00240F21025

Similar Products

Model Number Width (in) Minimum Diameter Maximum Diameter Price Action
TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 1.28 To 1.59 Inch Diameter

TBC150 Stainless T-Bolt Band Clamp

0.75

1.2813

1.5938

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 1.53 To 1.84 Inch Diameter

TBC175 Stainless T-Bolt Band Clamp

0.75

1.5313

1.8438

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 1.66 To 1.97 Inch Diameter

TBC188 Stainless T-Bolt Band Clamp

0.75

1.6563

1.9688

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 1.78 To 2.09 Inch Diameter

TBC200 Stainless T-Bolt Band Clamp

0.75

1.7813

2.0938

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 2.28 To 2.59 Inch Diameter

TBC250 Stainless T-Bolt Band Clamp

0.75

2.2813

2.5938

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 2.91 To 3.22 Inch Diameter

TBC312 Stainless T-Bolt Band Clamp

0.75

2.9063

3.2188

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 1.19 To 1.44 Inch Diameter

TBC131 Stainless T-Bolt Band Clamp

0.75

1.1875

1.4375

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 2.03 To 2.34 Inch Diameter

TBC225 Stainless T-Bolt Band Clamp

0.75

2.0313

2.3438

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 2.16 To 2.47 Inch Diameter

TBC238 Stainless T-Bolt Band Clamp

0.75

2.1563

2.4688

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 2.34 To 2.66 Inch Diameter

TBC256 Stainless T-Bolt Band Clamp

0.75

2.3438

2.6563

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 2.41 To 2.72 Inch Diameter

TBC263 Stainless T-Bolt Band Clamp

0.75

2.4063

2.7188

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 2.53 To 2.84 Inch Diameter

TBC275 Stainless T-Bolt Band Clamp

0.75

2.5313

2.8438

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 2.66 To 2.97 Inch Diameter

TBC288 Stainless T-Bolt Band Clamp

0.75

2.6563

2.9688

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 2.78 To 3.09 Inch Diameter

TBC300 Stainless T-Bolt Band Clamp

0.75

2.7813

3.0938

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 3.03 To 3.34 Inch Diameter

TBC325 Stainless T-Bolt Band Clamp

0.75

3.0313

3.3438

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 3.28 To 3.59 Inch Diameter

TBC350 Stainless T-Bolt Band Clamp

0.75

3.2813

3.5938

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 3.53 To 3.84 Inch Diameter

TBC375 Stainless T-Bolt Band Clamp

0.75

3.5313

3.8438

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 3.78 To 4.09 Inch Diameter

TBC400 Stainless T-Bolt Band Clamp

0.75

3.7813

4.0938

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 4.03 To 4.34 Inch Diameter

TBC425 Stainless T-Bolt Band Clamp

0.75

4.0313

4.3438

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 4.28 To 4.59 Inch Diameter

TBC450 Stainless T-Bolt Band Clamp

0.75

4.2813

4.5938

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 4.53 To 4.84 Inch Diameter

TBC475 Stainless T-Bolt Band Clamp

0.75

4.5313

4.8438

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 4.78 To 5.06 Inch Diameter

TBC500 Stainless T-Bolt Band Clamp

0.75

4.7813

5.0625

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 5.28 To 5.59 Inch Diameter

TBC550 Stainless T-Bolt Band Clamp

0.75

5.2813

5.5938

Product Questions & Answers (3)

Question by: Dean L on Feb 7, 2026, 6:09 PM
What size hose will this clamp fit?
Answer by: Customer Support on Feb 8, 2026, 9:00 PM
This clamp is designed for hoses or tubes with an outside diameter between 1.19 and 1.44 inches.
Question by: Dustin R on Jul 11, 2025, 11:33 AM
i’ve got a hose that measures right around 1-1/4 inch on the outside. is this clamp in the right ballpark or am i gonna be fighting it
Answer by: Customer Support on Jul 13, 2025, 10:38 AM
This clamp covers a diameter range from 1.1875 inches up to 1.4375 inches, so a hose sitting around 1.25 inches OD is within its adjustment window.
Question by: Carl B on Aug 31, 2025, 8:32 PM
band's only .025 thick on this one -- that gonna hold up alright for clamping down on hose in a shop environment, or is that too light for real work?
Answer by: Customer Support on Sep 2, 2025, 7:22 AM
For most shop and industrial hose clamping jobs, that band thickness handles the load just fine. The 301 stainless steel construction gives it solid corrosion resistance and enough structural integrity to hold firm under normal operating conditions. Combined with the T-bolt tightening system and a self-locking nut, you get a clamp that stays put without backing off over time. The 70 in. lbs. max torque rating gives you a reasonable ceiling to work within, so as long as you're not exceeding that during installation, the band thickness isn't going to be your weak point.
