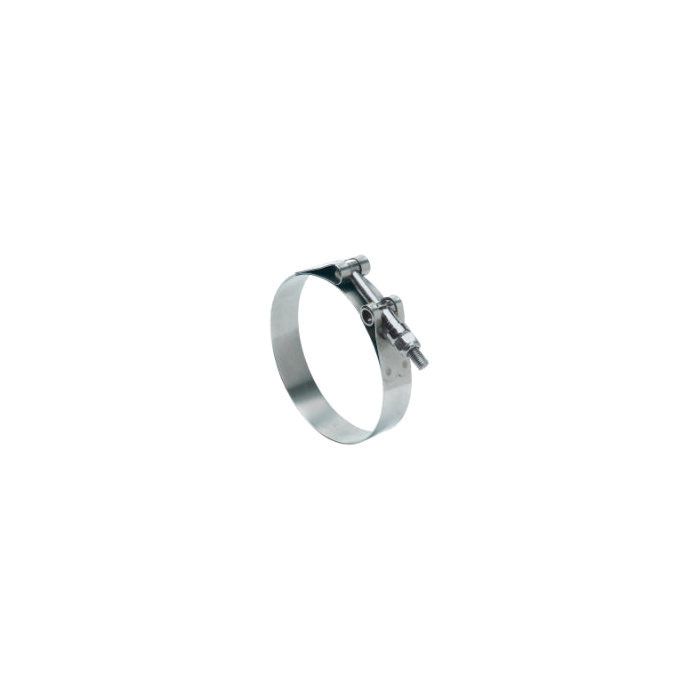

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 2.28 To 2.59 Inch Diameter

Ask A Question

Description & Features

The TBC Series Stainless Steel T-Bolt Band Clamp is designed for demanding industrial applications. With a 0.75 inch width and an adjustable diameter ranging from 2.28 to 2.59 inches this clamp offers robust performance and durability. Constructed from 301 stainless steel with a carbon steel bolt featuring a self-locking nut it ensures secure and reliable connections.

The tightening method utilizes a hexagon T-bolt allowing for a maximum recommended torque of 70 in. lbs. Ideal for various clamping requirements in demanding environments this product efficiently maintains its integrity under pressure.

Its precise engineering and material composition make it suitable for diverse industrial contexts. Whether used in automotive aerospace or commercial projects this clamp meets rigorous standards.

Supplier Part Number: 300500250051

MPN: C1DL95

Specifications

Brand
Ideal Clamp Products
Brand
Ideal Clamp Products
Pack Size
1.00
UOM
EA
Maximum Diameter
2.59
Minimum Diameter
2.28
Supplier Part Number
300500250051
Product Weight
0.14 lbs
Alternate Part Numbers
Alternate Part Number 20019949, Alternate Part Number 30050-0250, Alternate Part Number 30050-0250-051, Alternate Part Number C1DL95, Alternate Part Number MI-00347732, Alternate Part Number MINO-00240F82796

Similar Products

Model Number Width (in) Minimum Diameter Maximum Diameter Price Action
TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 1.28 To 1.59 Inch Diameter

TBC150 Stainless T-Bolt Band Clamp

0.75

1.2813

1.5938

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 1.53 To 1.84 Inch Diameter

TBC175 Stainless T-Bolt Band Clamp

0.75

1.5313

1.8438

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 1.66 To 1.97 Inch Diameter

TBC188 Stainless T-Bolt Band Clamp

0.75

1.6563

1.9688

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 1.78 To 2.09 Inch Diameter

TBC200 Stainless T-Bolt Band Clamp

0.75

1.7813

2.0938

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 2.28 To 2.59 Inch Diameter

TBC250 Stainless T-Bolt Band Clamp

0.75

2.2813

2.5938

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 2.91 To 3.22 Inch Diameter

TBC312 Stainless T-Bolt Band Clamp

0.75

2.9063

3.2188

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 1.19 To 1.44 Inch Diameter

TBC131 Stainless T-Bolt Band Clamp

0.75

1.1875

1.4375

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 2.03 To 2.34 Inch Diameter

TBC225 Stainless T-Bolt Band Clamp

0.75

2.0313

2.3438

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 2.16 To 2.47 Inch Diameter

TBC238 Stainless T-Bolt Band Clamp

0.75

2.1563

2.4688

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 2.34 To 2.66 Inch Diameter

TBC256 Stainless T-Bolt Band Clamp

0.75

2.3438

2.6563

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 2.41 To 2.72 Inch Diameter

TBC263 Stainless T-Bolt Band Clamp

0.75

2.4063

2.7188

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 2.53 To 2.84 Inch Diameter

TBC275 Stainless T-Bolt Band Clamp

0.75

2.5313

2.8438

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 2.66 To 2.97 Inch Diameter

TBC288 Stainless T-Bolt Band Clamp

0.75

2.6563

2.9688

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 2.78 To 3.09 Inch Diameter

TBC300 Stainless T-Bolt Band Clamp

0.75

2.7813

3.0938

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 3.03 To 3.34 Inch Diameter

TBC325 Stainless T-Bolt Band Clamp

0.75

3.0313

3.3438

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 3.28 To 3.59 Inch Diameter

TBC350 Stainless T-Bolt Band Clamp

0.75

3.2813

3.5938

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 3.53 To 3.84 Inch Diameter

TBC375 Stainless T-Bolt Band Clamp

0.75

3.5313

3.8438

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 3.78 To 4.09 Inch Diameter

TBC400 Stainless T-Bolt Band Clamp

0.75

3.7813

4.0938

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 4.03 To 4.34 Inch Diameter

TBC425 Stainless T-Bolt Band Clamp

0.75

4.0313

4.3438

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 4.28 To 4.59 Inch Diameter

TBC450 Stainless T-Bolt Band Clamp

0.75

4.2813

4.5938

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 4.53 To 4.84 Inch Diameter

TBC475 Stainless T-Bolt Band Clamp

0.75

4.5313

4.8438

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 4.78 To 5.06 Inch Diameter

TBC500 Stainless T-Bolt Band Clamp

0.75

4.7813

5.0625

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 5.28 To 5.59 Inch Diameter

TBC550 Stainless T-Bolt Band Clamp

0.75

5.2813

5.5938

Product Questions & Answers (2)

Question by: Hugh O on Mar 18, 2026, 1:23 PM
What size range does this clamp fit? Need to make sure it'll work for my application.
Answer by: Customer Support on Mar 19, 2026, 4:52 PM
These T-bolt band clamps are designed to fit diameters from 2.28 inches to 2.59 inches. Make sure your application falls within that range for a secure fit.
Question by: Cheryl M on Oct 15, 2025, 5:21 PM
clamp says 2.28 to 2.59 inch diameter range -- does that mean it'll fit a 2.5 inch hose without any issues?
Answer by: Customer Support on Oct 17, 2025, 6:33 AM
A 2.5 inch hose sits right in the middle of this clamp's adjustment range, which runs from 2.2813 up to 2.5938 inches. You'll have room on both ends to get a proper seat without maxing out the bolt travel. The 0.75 inch band width gives you decent coverage across the hose bead too, so it should clamp down evenly without distorting the hose end.
