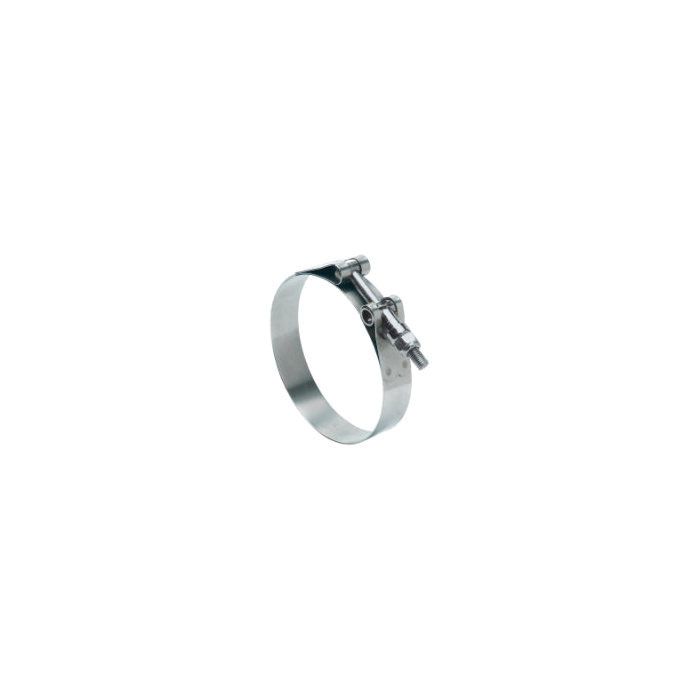

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 2.34 To 2.66 Inch Diameter

Description & Features

Crafted for versatile industrial applications this exceptional clamp offers a range of 2.34 to 2.66 inches in diameter with a width of 0.75 inches to ensure a secure and precise fit. Engineered from premium 301 stainless steel for the band coupled with a sturdy carbon steel bolt and a self-locking nut it promises durability in demanding conditions. Utilizing a hexagon T-bolt tightening method this clamp allows for efficient installation and a firm grip. Designed to withstand a maximum recommended torque of 70 in. lbs. it ensures stable and reliable clamping for high-performance requirements.

MPN: C1DL96

Supplier Part Number: 300500256051

Specifications

Brand Ideal Clamp Products	Brand Ideal Clamp Products	Pack Size 1.00	UOM EA	Maximum Diameter 2.66	Minimum Diameter 2.34	Supplier Part Number 300500256051	Product Weight 0.14 lbs	Alternate Part Numbers Alternate Part Number 20020042, Alternate Part Number 30050-0256, Alternate Part Number 30050-0256-051, Alternate Part Number 300500256-051, Alternate Part Number C1DL96

Similar Products

Model Number	Width (in)	Minimum Diameter	Maximum Diameter
TBC150 Stainless T-Bolt Band Clamp	0.75	1.2813	1.5938
TBC175 Stainless T-Bolt Band Clamp	0.75	1.5313	1.8438
TBC188 Stainless T-Bolt Band Clamp	0.75	1.6563	1.9688
TBC200 Stainless T-Bolt Band Clamp	0.75	1.7813	2.0938
TBC250 Stainless T-Bolt Band Clamp	0.75	2.2813	2.5938
TBC312 Stainless T-Bolt Band Clamp	0.75	2.9063	3.2188
TBC131 Stainless T-Bolt Band Clamp	0.75	1.1875	1.4375
TBC225 Stainless T-Bolt Band Clamp	0.75	2.0313	2.3438
TBC238 Stainless T-Bolt Band Clamp	0.75	2.1563	2.4688
TBC263 Stainless T-Bolt Band Clamp	0.75	2.4063	2.7188
TBC275 Stainless T-Bolt Band Clamp	0.75	2.5313	2.8438
TBC288 Stainless T-Bolt Band Clamp	0.75	2.6563	2.9688
TBC300 Stainless T-Bolt Band Clamp	0.75	2.7813	3.0938
TBC325 Stainless T-Bolt Band Clamp	0.75	3.0313	3.3438
TBC350 Stainless T-Bolt Band Clamp	0.75	3.2813	3.5938
TBC375 Stainless T-Bolt Band Clamp	0.75	3.5313	3.8438
TBC400 Stainless T-Bolt Band Clamp	0.75	3.7813	4.0938
TBC425 Stainless T-Bolt Band Clamp	0.75	4.0313	4.3438
TBC450 Stainless T-Bolt Band Clamp	0.75	4.2813	4.5938
TBC475 Stainless T-Bolt Band Clamp	0.75	4.5313	4.8438
TBC500 Stainless T-Bolt Band Clamp	0.75	4.7813	5.0625
TBC550 Stainless T-Bolt Band Clamp	0.75	5.2813	5.5938

Product Questions & Answers (1)

Question by: Troy B on Feb 14, 2026, 8:36 AM

got a hose that measures right around 2 1/2 inches OD, is this clamp in the right ballpark or am i off?

Answer by: Customer Support on Feb 15, 2026, 9:44 AM

Fit comes down to diameter range, and this one is made to clamp from 2.34 inches up to 2.66 inches. If your hose OD lands in that window, it is the correct size range for it.
