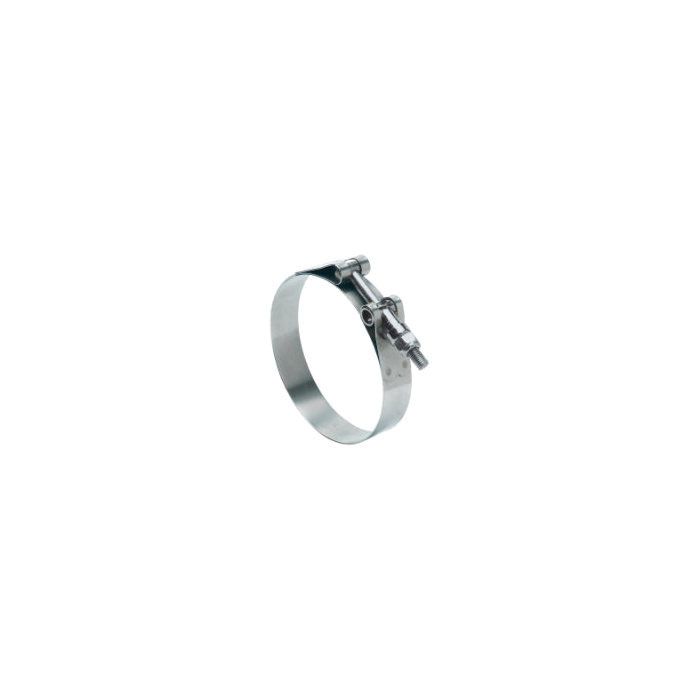

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 2.78 To 3.09 Inch Diameter

Ask A Question

Description & Features

This TBC Series Stainless Steel T-Bolt Band Clamp is engineered for robust performance in demanding environments. Crafted from 301 stainless steel with a carbon steel bolt it offers durability and a reliable clamping force.

Designed with a width of 0.75 inches and an adjustable diameter ranging from 2.78 inches to 3.09 inches this clamp is ideal for heavy-duty applications. The maximum recommended torque is 70 in. lbs tightened using a hexagon T-bolt. The thick stainless steel band ensures secure and consistent clamping making it suitable for securing hoses and ducts in industrial settings.

The self-locking nut enhances reliability ensuring a firm and stable grip under various conditions. With part number 300500300051 this clamp meets high standards for performance and durability.

Supplier Part Number: 300500300051

Specifications

Brand
Ideal Tridon®
Locking Style
Bolt
Material
Stainless Steel
Nominal Size
#03
Series
30050 Series

Similar Products

Model Number Width (in) Minimum Diameter Maximum Diameter Price Action
TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 1.28 To 1.59 Inch Diameter

TBC150 Stainless T-Bolt Band Clamp

0.75

1.2813

1.5938

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 1.53 To 1.84 Inch Diameter

TBC175 Stainless T-Bolt Band Clamp

0.75

1.5313

1.8438

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 1.66 To 1.97 Inch Diameter

TBC188 Stainless T-Bolt Band Clamp

0.75

1.6563

1.9688

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 1.78 To 2.09 Inch Diameter

TBC200 Stainless T-Bolt Band Clamp

0.75

1.7813

2.0938

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 2.28 To 2.59 Inch Diameter

TBC250 Stainless T-Bolt Band Clamp

0.75

2.2813

2.5938

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 2.91 To 3.22 Inch Diameter

TBC312 Stainless T-Bolt Band Clamp

0.75

2.9063

3.2188

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 1.19 To 1.44 Inch Diameter

TBC131 Stainless T-Bolt Band Clamp

0.75

1.1875

1.4375

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 2.03 To 2.34 Inch Diameter

TBC225 Stainless T-Bolt Band Clamp

0.75

2.0313

2.3438

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 2.16 To 2.47 Inch Diameter

TBC238 Stainless T-Bolt Band Clamp

0.75

2.1563

2.4688

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 2.34 To 2.66 Inch Diameter

TBC256 Stainless T-Bolt Band Clamp

0.75

2.3438

2.6563

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 2.41 To 2.72 Inch Diameter

TBC263 Stainless T-Bolt Band Clamp

0.75

2.4063

2.7188

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 2.53 To 2.84 Inch Diameter

TBC275 Stainless T-Bolt Band Clamp

0.75

2.5313

2.8438

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 2.66 To 2.97 Inch Diameter

TBC288 Stainless T-Bolt Band Clamp

0.75

2.6563

2.9688

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 3.03 To 3.34 Inch Diameter

TBC325 Stainless T-Bolt Band Clamp

0.75

3.0313

3.3438

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 3.28 To 3.59 Inch Diameter

TBC350 Stainless T-Bolt Band Clamp

0.75

3.2813

3.5938

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 3.53 To 3.84 Inch Diameter

TBC375 Stainless T-Bolt Band Clamp

0.75

3.5313

3.8438

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 3.78 To 4.09 Inch Diameter

TBC400 Stainless T-Bolt Band Clamp

0.75

3.7813

4.0938

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 4.03 To 4.34 Inch Diameter

TBC425 Stainless T-Bolt Band Clamp

0.75

4.0313

4.3438

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 4.28 To 4.59 Inch Diameter

TBC450 Stainless T-Bolt Band Clamp

0.75

4.2813

4.5938

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 4.53 To 4.84 Inch Diameter

TBC475 Stainless T-Bolt Band Clamp

0.75

4.5313

4.8438

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 4.78 To 5.06 Inch Diameter

TBC500 Stainless T-Bolt Band Clamp

0.75

4.7813

5.0625

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 5.28 To 5.59 Inch Diameter

TBC550 Stainless T-Bolt Band Clamp

0.75

5.2813

5.5938

Product Questions & Answers (3)

Question by: Bobby J on Jul 10, 2025, 7:42 AM
got a hose thats right around 3 inch, is this clamp gonna cover that or am i too close to the edge?
Answer by: Customer Support on Jul 11, 2025, 5:15 PM
It adjusts from 2.7813 inches up to 3.0938 inches in diameter, so a hose that measures about 3 inches falls inside the working range.
Question by: Hugh M on Nov 27, 2025, 10:35 AM
What's the torque I should be tightening this clamp down to, and what kind of tool does it take?
Answer by: Customer Support on Nov 29, 2025, 6:07 AM
Max recommended torque on this one is 70 in. lbs. It uses a hexagon T-bolt for tightening, so a standard hex socket or wrench is what you need. Don't crank past that 70 mark or you risk compromising the clamp and whatever you've got it seated on.
Question by: Kirk P on Jun 19, 2025, 11:18 AM
What size range does this clamp fit? I want to make sure it'll work on my application.
Answer by: Customer Support on Jun 21, 2025, 6:16 AM
It fits diameters from 2.78 inches to 3.09 inches. Make sure your hose or duct falls within that range for a secure fit.
