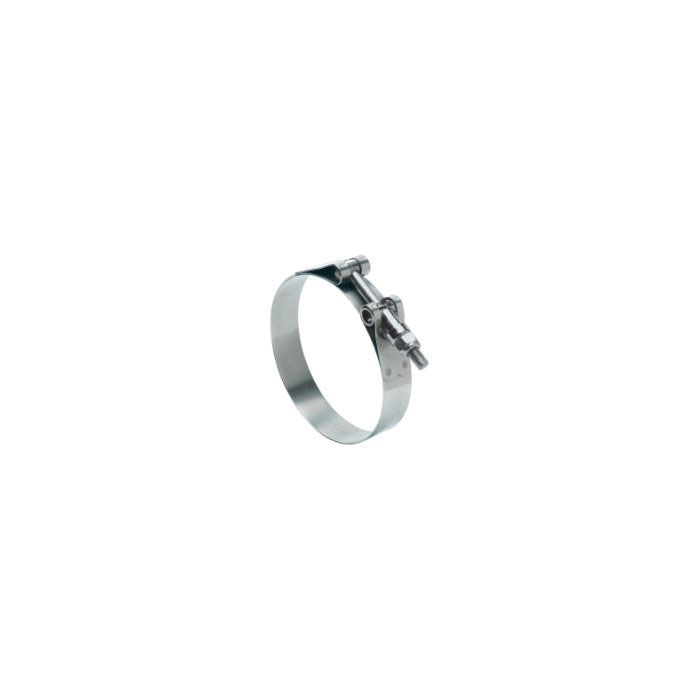

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 3.53 To 3.84 Inch Diameter

Ask A Question

Description & Features

The TBC Series Stainless Steel T-Bolt Band Clamp created by Ideal Clamp Products ensures dependable hose retention in rigorous settings. Designed with a band width of 0.75 inches it can fit diameters from 3.53 to 3.84 inches.

Its 301 stainless steel band with a thickness of .025 paired with a carbon steel bolt offers robust durability and corrosion resistance. The self-locking nut guarantees a secure hold while the hexagon T-bolt design allows optimal tightness with a maximum recommended torque of 70 in. lbs.

This clamp's capacity for precise adjustments within its diameter range makes it suitable for numerous industrial tasks.

MPN: C1DM15

Supplier Part Number: 300500375051

Specifications

Brand
Ideal Tridon®
Locking Style
Bolt
Material
Stainless Steel
Series
30050 Series

Similar Products

Model Number Width (in) Minimum Diameter Maximum Diameter Price Action
TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 1.28 To 1.59 Inch Diameter

TBC150 Stainless T-Bolt Band Clamp

0.75

1.2813

1.5938

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 1.53 To 1.84 Inch Diameter

TBC175 Stainless T-Bolt Band Clamp

0.75

1.5313

1.8438

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 1.66 To 1.97 Inch Diameter

TBC188 Stainless T-Bolt Band Clamp

0.75

1.6563

1.9688

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 1.78 To 2.09 Inch Diameter

TBC200 Stainless T-Bolt Band Clamp

0.75

1.7813

2.0938

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 2.28 To 2.59 Inch Diameter

TBC250 Stainless T-Bolt Band Clamp

0.75

2.2813

2.5938

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 2.91 To 3.22 Inch Diameter

TBC312 Stainless T-Bolt Band Clamp

0.75

2.9063

3.2188

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 1.19 To 1.44 Inch Diameter

TBC131 Stainless T-Bolt Band Clamp

0.75

1.1875

1.4375

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 2.03 To 2.34 Inch Diameter

TBC225 Stainless T-Bolt Band Clamp

0.75

2.0313

2.3438

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 2.16 To 2.47 Inch Diameter

TBC238 Stainless T-Bolt Band Clamp

0.75

2.1563

2.4688

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 2.34 To 2.66 Inch Diameter

TBC256 Stainless T-Bolt Band Clamp

0.75

2.3438

2.6563

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 2.41 To 2.72 Inch Diameter

TBC263 Stainless T-Bolt Band Clamp

0.75

2.4063

2.7188

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 2.53 To 2.84 Inch Diameter

TBC275 Stainless T-Bolt Band Clamp

0.75

2.5313

2.8438

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 2.66 To 2.97 Inch Diameter

TBC288 Stainless T-Bolt Band Clamp

0.75

2.6563

2.9688

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 2.78 To 3.09 Inch Diameter

TBC300 Stainless T-Bolt Band Clamp

0.75

2.7813

3.0938

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 3.03 To 3.34 Inch Diameter

TBC325 Stainless T-Bolt Band Clamp

0.75

3.0313

3.3438

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 3.28 To 3.59 Inch Diameter

TBC350 Stainless T-Bolt Band Clamp

0.75

3.2813

3.5938

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 3.78 To 4.09 Inch Diameter

TBC400 Stainless T-Bolt Band Clamp

0.75

3.7813

4.0938

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 4.03 To 4.34 Inch Diameter

TBC425 Stainless T-Bolt Band Clamp

0.75

4.0313

4.3438

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 4.28 To 4.59 Inch Diameter

TBC450 Stainless T-Bolt Band Clamp

0.75

4.2813

4.5938

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 4.53 To 4.84 Inch Diameter

TBC475 Stainless T-Bolt Band Clamp

0.75

4.5313

4.8438

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 4.78 To 5.06 Inch Diameter

TBC500 Stainless T-Bolt Band Clamp

0.75

4.7813

5.0625

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 5.28 To 5.59 Inch Diameter

TBC550 Stainless T-Bolt Band Clamp

0.75

5.2813

5.5938

Product Questions & Answers (2)

Question by: Joyce R on Sep 10, 2025, 6:25 PM
What size range of hose will this clamp fit? Just wanna make sure it's gonna work for what I need.
Answer by: Customer Support on Sep 12, 2025, 12:17 PM
It's designed for hoses with an outer diameter between 3.53 inches and 3.84 inches.
Question by: Larry T on Sep 19, 2025, 7:17 PM
got a hose that measures right around 3.7 inches across, is this clamp in the ballpark or am i gonna be fighting it
Answer by: Customer Support on Sep 21, 2025, 9:33 AM
It covers a diameter range from 3.53 inches up to 3.84 inches, so a 3.7 inch OD hose falls inside the adjustment window.
