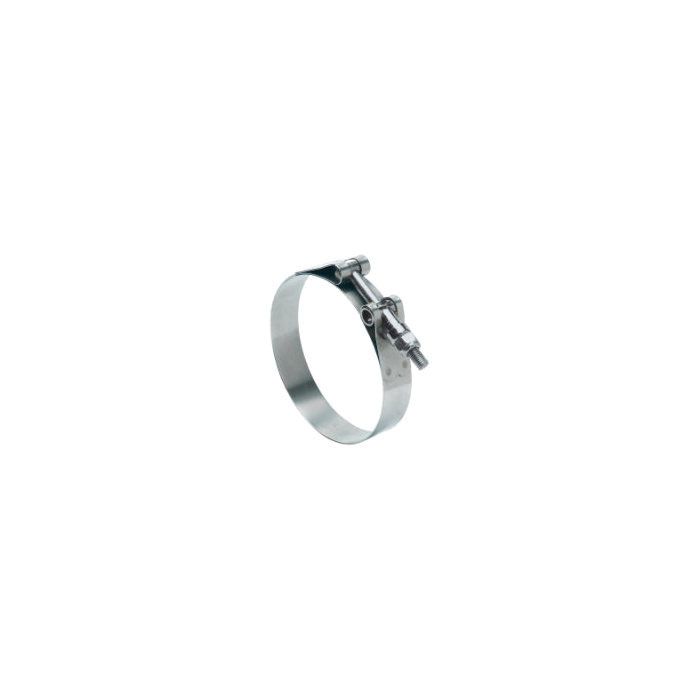

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 4.03 To 4.34 Inch Diameter

Ask A Question

Description & Features

Designed for applications that demand high clamping force and longevity this clamp ensures a secure and reliable fit. Featuring a 301 stainless steel band with a width of 0.75 inches and a carbon steel bolt with a self-locking nut its robust construction supports durability. The hexagon T-bolt tightening method facilitates easy installation and removal making it suitable for repeated use.

With a diameter range of 4.03 to 4.34 inches it is ideal for industrial hose connections. A maximum recommended torque of 70 in. lbs. ensures optimal pressure without compromising the clamp's structural integrity.

Under the category of Hose Clamps & Ferrules this clamp is engineered to meet demanding industrial standards. The TBC Series Stainless Steel T-Bolt Band Clamp 0.75 Inch Width 4.03 To 4.34 Inch Diameter is a reliable solution for heavy-duty applications.

MPN: 300500425051

Supplier Part Number: 300500425051

Specifications

Brand
Ideal Tridon®
Locking Style
Bolt
Material
Stainless Steel
Series
30050 Series

Similar Products

Model Number Width (in) Minimum Diameter Maximum Diameter Price Action
TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 1.28 To 1.59 Inch Diameter

TBC150 Stainless T-Bolt Band Clamp

0.75

1.2813

1.5938

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 1.53 To 1.84 Inch Diameter

TBC175 Stainless T-Bolt Band Clamp

0.75

1.5313

1.8438

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 1.66 To 1.97 Inch Diameter

TBC188 Stainless T-Bolt Band Clamp

0.75

1.6563

1.9688

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 1.78 To 2.09 Inch Diameter

TBC200 Stainless T-Bolt Band Clamp

0.75

1.7813

2.0938

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 2.28 To 2.59 Inch Diameter

TBC250 Stainless T-Bolt Band Clamp

0.75

2.2813

2.5938

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 2.91 To 3.22 Inch Diameter

TBC312 Stainless T-Bolt Band Clamp

0.75

2.9063

3.2188

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 1.19 To 1.44 Inch Diameter

TBC131 Stainless T-Bolt Band Clamp

0.75

1.1875

1.4375

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 2.03 To 2.34 Inch Diameter

TBC225 Stainless T-Bolt Band Clamp

0.75

2.0313

2.3438

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 2.16 To 2.47 Inch Diameter

TBC238 Stainless T-Bolt Band Clamp

0.75

2.1563

2.4688

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 2.34 To 2.66 Inch Diameter

TBC256 Stainless T-Bolt Band Clamp

0.75

2.3438

2.6563

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 2.41 To 2.72 Inch Diameter

TBC263 Stainless T-Bolt Band Clamp

0.75

2.4063

2.7188

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 2.53 To 2.84 Inch Diameter

TBC275 Stainless T-Bolt Band Clamp

0.75

2.5313

2.8438

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 2.66 To 2.97 Inch Diameter

TBC288 Stainless T-Bolt Band Clamp

0.75

2.6563

2.9688

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 2.78 To 3.09 Inch Diameter

TBC300 Stainless T-Bolt Band Clamp

0.75

2.7813

3.0938

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 3.03 To 3.34 Inch Diameter

TBC325 Stainless T-Bolt Band Clamp

0.75

3.0313

3.3438

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 3.28 To 3.59 Inch Diameter

TBC350 Stainless T-Bolt Band Clamp

0.75

3.2813

3.5938

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 3.53 To 3.84 Inch Diameter

TBC375 Stainless T-Bolt Band Clamp

0.75

3.5313

3.8438

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 3.78 To 4.09 Inch Diameter

TBC400 Stainless T-Bolt Band Clamp

0.75

3.7813

4.0938

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 4.28 To 4.59 Inch Diameter

TBC450 Stainless T-Bolt Band Clamp

0.75

4.2813

4.5938

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 4.53 To 4.84 Inch Diameter

TBC475 Stainless T-Bolt Band Clamp

0.75

4.5313

4.8438

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 4.78 To 5.06 Inch Diameter

TBC500 Stainless T-Bolt Band Clamp

0.75

4.7813

5.0625

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 5.28 To 5.59 Inch Diameter

TBC550 Stainless T-Bolt Band Clamp

0.75

5.2813

5.5938

Product Questions & Answers (3)

Question by: Rusty P on Jul 20, 2025, 10:52 AM
i’ve got a hose that measures right around 4.2 inches on the outside, is that in the sweet spot for this clamp?
Answer by: Customer Support on Jul 21, 2025, 4:54 PM
Fit comes down to the clamp’s diameter range, and this one adjusts from 4.03 to 4.34 inches. A 4.2 inch hose OD falls inside that window, so it’s within the intended clamping range.
Question by: Steve M on Jul 14, 2025, 3:42 PM
What size hose does this clamp fit best? I just want to make sure it's gonna work before I order.
Answer by: Customer Support on Jul 16, 2025, 7:01 AM
This T-bolt clamp is designed to work with hoses that have an outer diameter between 4.03 and 4.34 inches.
Question by: Merle T on May 24, 2025, 9:04 PM
Does the bolt and nut on this thing hold up or do they rust out on ya after a while?
Answer by: Customer Support on May 26, 2025, 12:23 PM
The band itself is 301 stainless steel, so corrosion resistance on that part is solid. The bolt is carbon steel, which is worth knowing upfront if you're running it somewhere with a lot of moisture or chemical exposure. The self-locking nut does help keep things from backing off under vibration, but that carbon steel bolt is the one component where you'd see wear faster in harsh wet environments.
