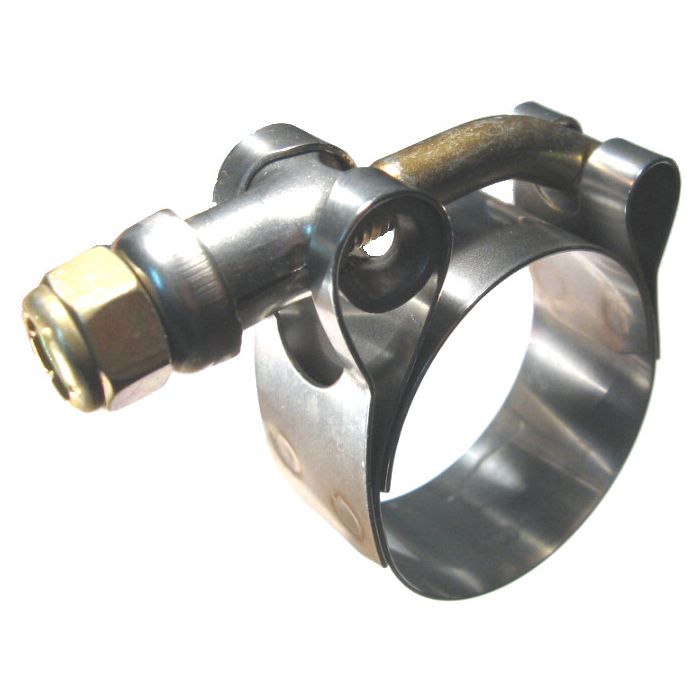

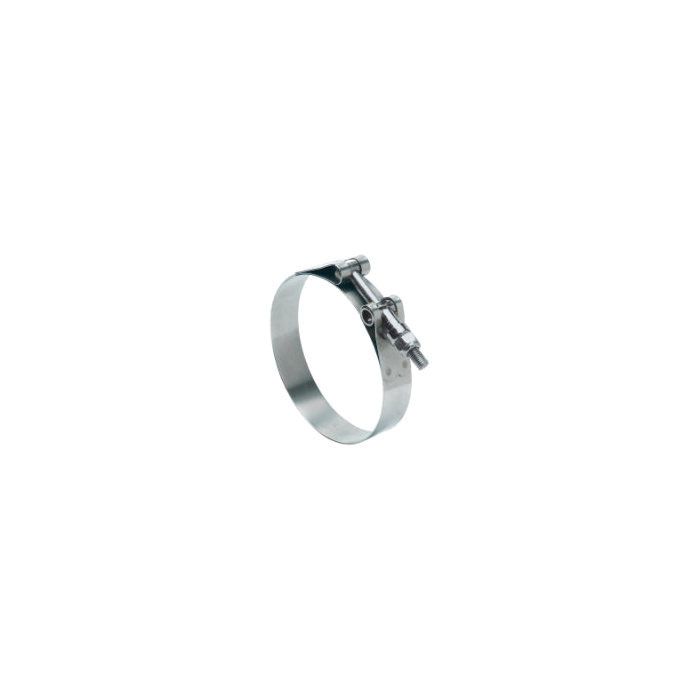

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 5.28 To 5.59 Inch Diameter

Ask A Question

Description & Features

Designed for secure, high-torque clamping in demanding industrial environments, the TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 5.28 To 5.59 Inch Diameter is built to handle hose and fitting connections where reliable clamping force is essential. Manufactured by Dixon Valve & Coupling under the Ideal Clamp Products brand, this clamp features a 301 stainless steel band at 0.025 inches thick, paired with a carbon steel T-bolt and self-locking nut for consistent, stable clamping under vibration and pressure.

The hexagon T-bolt tightening method allows for straightforward installation and adjustment, with a maximum recommended torque of 70 in. lbs. At 0.75 inches wide, the band spans a diameter range of 5.2813 to 5.5938 inches, making it well suited for hose assemblies and couplings in that size range. The stainless steel construction provides corrosion resistance for use in hydraulic, fluid transfer, and industrial process applications.

SKU: TBC550

Supplier Part Number (MPN): 300500550051

Alternate Part Numbers: 30050-0550, 30050-0550-051, C1DM20

Specifications

Brand
Ideal Clamp Products
Brand
Ideal Clamp Products
Pack Size
1.00
UOM
EA
Maximum Diameter
5.59
Minimum Diameter
5.28
Supplier Part Number
300500550051
Product Weight
0.19 lbs
Alternate Part Numbers
Alternate Part Number 30050-0550, Alternate Part Number 30050-0550-051, Alternate Part Number C1DM20

Similar Products

Model Number Width (in) Minimum Diameter Maximum Diameter Price Action
TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 1.28 To 1.59 Inch Diameter

TBC150 Stainless T-Bolt Band Clamp

0.75

1.2813

1.5938

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 1.53 To 1.84 Inch Diameter

TBC175 Stainless T-Bolt Band Clamp

0.75

1.5313

1.8438

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 1.66 To 1.97 Inch Diameter

TBC188 Stainless T-Bolt Band Clamp

0.75

1.6563

1.9688

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 1.78 To 2.09 Inch Diameter

TBC200 Stainless T-Bolt Band Clamp

0.75

1.7813

2.0938

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 2.28 To 2.59 Inch Diameter

TBC250 Stainless T-Bolt Band Clamp

0.75

2.2813

2.5938

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 2.91 To 3.22 Inch Diameter

TBC312 Stainless T-Bolt Band Clamp

0.75

2.9063

3.2188

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 1.19 To 1.44 Inch Diameter

TBC131 Stainless T-Bolt Band Clamp

0.75

1.1875

1.4375

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 2.03 To 2.34 Inch Diameter

TBC225 Stainless T-Bolt Band Clamp

0.75

2.0313

2.3438

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 2.16 To 2.47 Inch Diameter

TBC238 Stainless T-Bolt Band Clamp

0.75

2.1563

2.4688

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 2.34 To 2.66 Inch Diameter

TBC256 Stainless T-Bolt Band Clamp

0.75

2.3438

2.6563

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 2.41 To 2.72 Inch Diameter

TBC263 Stainless T-Bolt Band Clamp

0.75

2.4063

2.7188

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 2.53 To 2.84 Inch Diameter

TBC275 Stainless T-Bolt Band Clamp

0.75

2.5313

2.8438

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 2.66 To 2.97 Inch Diameter

TBC288 Stainless T-Bolt Band Clamp

0.75

2.6563

2.9688

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 2.78 To 3.09 Inch Diameter

TBC300 Stainless T-Bolt Band Clamp

0.75

2.7813

3.0938

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 3.03 To 3.34 Inch Diameter

TBC325 Stainless T-Bolt Band Clamp

0.75

3.0313

3.3438

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 3.28 To 3.59 Inch Diameter

TBC350 Stainless T-Bolt Band Clamp

0.75

3.2813

3.5938

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 3.53 To 3.84 Inch Diameter

TBC375 Stainless T-Bolt Band Clamp

0.75

3.5313

3.8438

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 3.78 To 4.09 Inch Diameter

TBC400 Stainless T-Bolt Band Clamp

0.75

3.7813

4.0938

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 4.03 To 4.34 Inch Diameter

TBC425 Stainless T-Bolt Band Clamp

0.75

4.0313

4.3438

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 4.28 To 4.59 Inch Diameter

TBC450 Stainless T-Bolt Band Clamp

0.75

4.2813

4.5938

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 4.53 To 4.84 Inch Diameter

TBC475 Stainless T-Bolt Band Clamp

0.75

4.5313

4.8438

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 4.78 To 5.06 Inch Diameter

TBC500 Stainless T-Bolt Band Clamp

0.75

4.7813

5.0625

TBC Series Stainless Steel T-Bolt Band Clamp, 0.75 Inch Width, 5.28 To 5.59 Inch Diameter

TBC550 Stainless T-Bolt Band Clamp

0.75

5.2813

5.5938

Product Questions & Answers (1)

Question by: Roger W on Mar 28, 2026, 7:35 PM
Will this clamp work on a 5 1/2 inch OD hose?
Answer by: Customer Support on Mar 30, 2026, 5:00 PM
Yes, this T-bolt clamp is designed to fit hoses with outer diameters ranging from 5.28 inches to 5.59 inches, so it should work just fine on your 5 1/2 inch hose.
