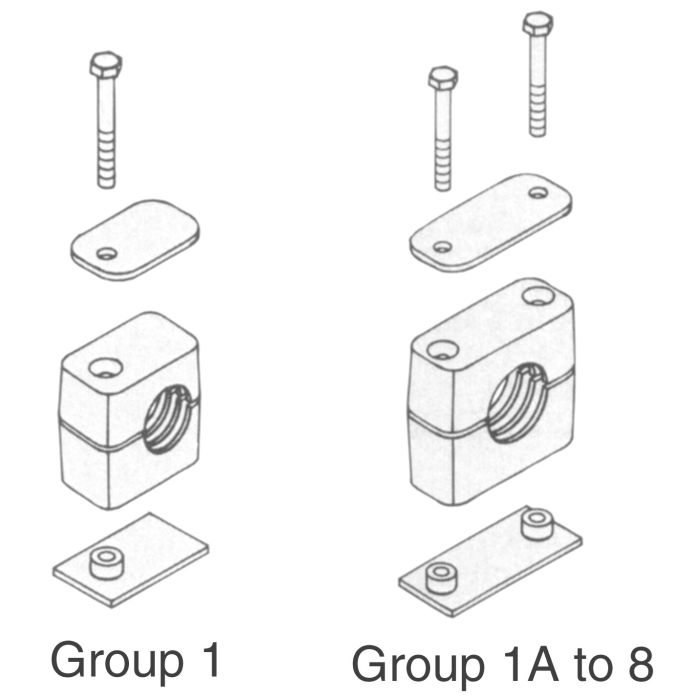

Standard Series Pipe & Tubing Polypropylene Support Clamp, Single Weld Plate, Hex Head Bolts With Cover Plate, 6.4 mm mm Size

Description & Features

The Standard Series Pipe & Tubing Polypropylene Support Clamp Single Weld Plate Hex Head Bolts With Cover Plate 6.4 mm mm Size is crafted with robust polypropylene for dependable performance. Suitable for securement of hoses and materials it accommodates outside diameters from 1/4" to 4".

This versatile product is available in a weld plate style for single clamps and supports rail mounting across all dimensions. The temperature tolerance for polypropylene ranges from -22deg;F to 194deg;F ensuring functionality in diverse industrial settings.

Material options include polypropylene polyamide and aluminum allowing for tailored solutions based on environmental factors. The body I.D. is profiled to maintain a solid hold adhering to industry standards for reliable usage.

Spacing recommendations for pipes and tubing vary with specifications ensuring maximum stability during installation enhancing overall performance.

Supplier Part Number: 6100081755

MPN: {{ecc_mpn}}

Specifications

B2 1.18	Body I.D. Profiled	Brand Stauff Corporation	Brand Stauff Corporation	Pack Size 1.00	UOM EA	Group 1	H1 1.06	H3 0.65	Materials Polypropylene	Package Qty. 1	Pipe Size 0.25	Size 6.4 mm	Supplier Part Number 6100081755	Thread Sealant No	Alternate Part Numbers Alternate Part Number C1EZ66, Alternate Part Number C1ML73, Alternate Part Number SP-106, Alternate Part Number 4-PP-DP-AS-U-W10#K, Alternate Part Number SP-106.4-PP-DP-AS-U-W10-K, Alternate Part Number SP1064PPDPASUW10#K, Alternate Part Number SP1064PPDPASUW10K, Alternate Part Number STNA11073	Product Weight 0.16 lbs

Similar Products

Model Number	Size	Tube Size	Pipe Size	Hose O.D.	Group	Materials	Body I.D.	Package Qty.	B2	H1	H3
SP5370PPHDPAS-K Standard Series Support Clamp	37.0 mm			1.46	5	Polypropylene	Smooth	1	1.18	2.28	1.25
SP6445PPHDPAS-K Standard Series Support Clamp	44.5 mm		1.75	1.75	6	Polypropylene	Smooth	1	1.18	2.59	1.42
6100081755 Standard Series Support Clamp	6.4 mm		0.25		1	Polypropylene	Profiled	1	1.18	1.06	0.65
6100081795 Standard Series Support Clamp	9.5 mm	0.25			1	Polypropylene	Profiled	1	1.18	1.06	0.65
STNA11119 Standard Series Support Clamp	16 mm	0.625			2	Polypropylene	Profiled	1	1.18	1.3	0.77
6100082100 Standard Series Support Clamp	21.3 mm		0.5		3	Polypropylene	Profiled	1	1.18	2.28	0.83
STNA11184 Standard Series Support Clamp	26.9 mm		0.75		4	Polypropylene	Profiled	1	1.18	1.65	0.94
STNA11217 Standard Series Support Clamp	38 mm	1.5			5	Polypropylene	Profiled	1	1.18	2.28	1.26

Product Questions & Answers (3)

Question by: Carl T on Mar 31, 2026, 9:00 PM

what size pipe or tubing does this clamp actually fit? got a 1/4 inch line I need to secure and wanna make sure before I order

Answer by: Customer Support on Apr 2, 2026, 6:54 AM

For a 1/4 inch line, this clamp fits right. The series covers outside diameters from 1/4 inch all the way up to 4 inches, and this particular unit is sized at 6.4 mm, which works out to right at 0.25 inches. The body I.D. is profiled, meaning it grips the pipe or tubing with a solid hold rather than a flat or smooth bore, so it should keep that line from shifting around once it's mounted up.

Question by: Warren W on May 10, 2025, 2:18 PM

got a 1/4 inch line im trying to clamp up, is this the right size or am i off?

Answer by: Customer Support on May 11, 2025, 3:42 PM

For a 1/4 inch pipe size, this clamp is the 6.4 mm size, which is the inch equivalent. It is part of the Standard Series support clamps meant to secure pipe, tubing, and hoses, with the clamp line covering outside diameters from 1/4 inch up to 4 inch.

Question by: Dale M on Jul 30, 2025, 1:36 PM

What size pipe does this clamp fit? I'm seeing a couple different numbers.

Answer by: Customer Support on Jul 31, 2025, 5:33 PM

It's designed for a 1/4 inch pipe, but it'll work with outside diameters from 1/4" to 4". Make sure you check the body I.D. to ensure a solid hold.
