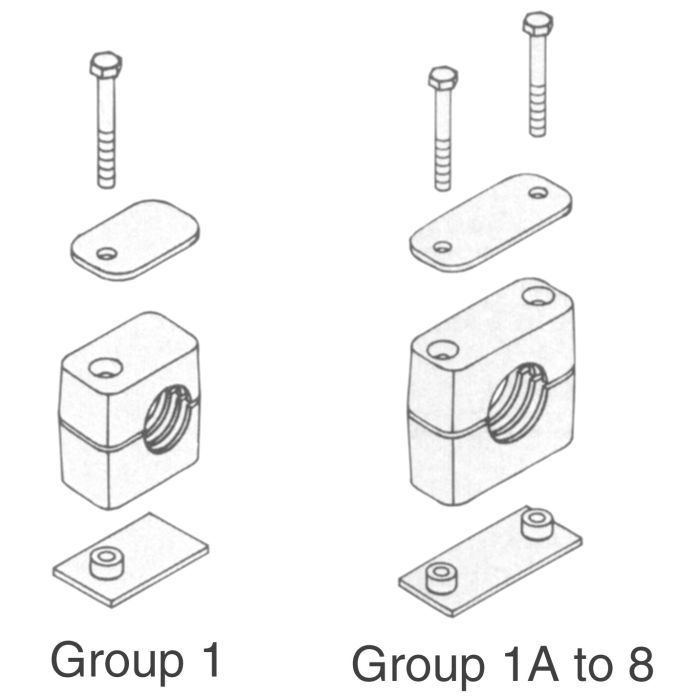

Standard Series Pipe & Tubing Polypropylene Support Clamp, Single Weld Plate, Hex Head Bolts With Cover Plate, 44.5 mm mm Size

Description & Features

The Standard Series Pipe & Tubing Polypropylene Support Clamp Single Weld Plate Hex Head Bolts With Cover Plate 44.5 mm mm Size by Stauff Corporation is designed for reliable support in industrial settings. Suitable for outside diameters from 1/4" to 4" this clamp is constructed from durable polypropylene performing optimally in temperatures ranging from -22deg;F to 194deg;F.

Designed with a smooth body I.D. of 2.59 and a hose O.D. of 1.75 it effectively accommodates pipe sizes up to 44.5 mm. The inclusion of a single weld plate and hex head bolts ensures stability and secure installation. For single clamps the weld plate style is highly practical while rail mounting is available for all sizes.

This support clamp also comes in polyamide and aluminum options to suit various application requirements. It maintains system integrity by securely clamping hoses using the smooth body I.D. style. Recommended spacing for pipes is 1/4in=3FT 3/8in=4FT 1/2in=4FT 3/4in=5FT 1in=7FT 1-1/4in=8FT 1-1/2in=9FT 2in=10FT 2-1/2in=11FT 3in=12FT and for tubing 1/4in-1/2in=3FT 5/8in-7/8in=4FT 1in=5FT 1-1/4in-1-1/2in=7FT.

Supplier Part Number: STNA11281

Specifications

B2 1.18	Body I.D. Smooth	Brand Stauff Corporation	Brand Stauff Corporation	Pack Size 1.00	UOM EA	Group 6	H1 2.59	H3 1.42	Hose O.D. 1.75	Materials Polypropylene	Package Qty. 1	Pipe Size 1.75	Size 44.5 mm	Supplier Part Number STNA11281	Thread Sealant No	Alternate Part Numbers Alternate Part Number C1JR29, Alternate Part Number MI-08752628, Alternate Part Number MINO-02491X93345, Alternate Part Number SP-644.5-PP-H-DP-AS-U-W10-K, Alternate Part Number SP6445PPHDPASUW10K, Alternate Part Number STNA11281	Product Weight 0.54 lbs

Similar Products

Model Number	Size	Tube Size	Pipe Size	Hose O.D.	Group	Materials	Body I.D.	Package Qty.	B2	H1	H3
SP5370PPHDPAS-K Standard Series Support Clamp	37.0 mm			1.46	5	Polypropylene	Smooth	1	1.18	2.28	1.25
SP6445PPHDPAS-K Standard Series Support Clamp	44.5 mm		1.75	1.75	6	Polypropylene	Smooth	1	1.18	2.59	1.42
6100081755 Standard Series Support Clamp	6.4 mm		0.25		1	Polypropylene	Profiled	1	1.18	1.06	0.65
6100081795 Standard Series Support Clamp	9.5 mm	0.25			1	Polypropylene	Profiled	1	1.18	1.06	0.65
STNA11119 Standard Series Support Clamp	16 mm	0.625			2	Polypropylene	Profiled	1	1.18	1.3	0.77
6100082100 Standard Series Support Clamp	21.3 mm		0.5		3	Polypropylene	Profiled	1	1.18	2.28	0.83
STNA11184 Standard Series Support Clamp	26.9 mm		0.75		4	Polypropylene	Profiled	1	1.18	1.65	0.94
STNA11217 Standard Series Support Clamp	38 mm	1.5			5	Polypropylene	Profiled	1	1.18	2.28	1.26

Product Questions & Answers (1)

Question by: Freddie R on Sep 8, 2025, 11:33 AM

i've got 44.5 mm line to clamp up, is this the right size or do i need to convert it to inches first?

Answer by: Customer Support on Sep 9, 2025, 9:28 PM

For this clamp, 44.5 mm is the size it is meant to fit. If you ever need to compare to an inch callout, the note provided is mm size x 0.03937 = inch size.
