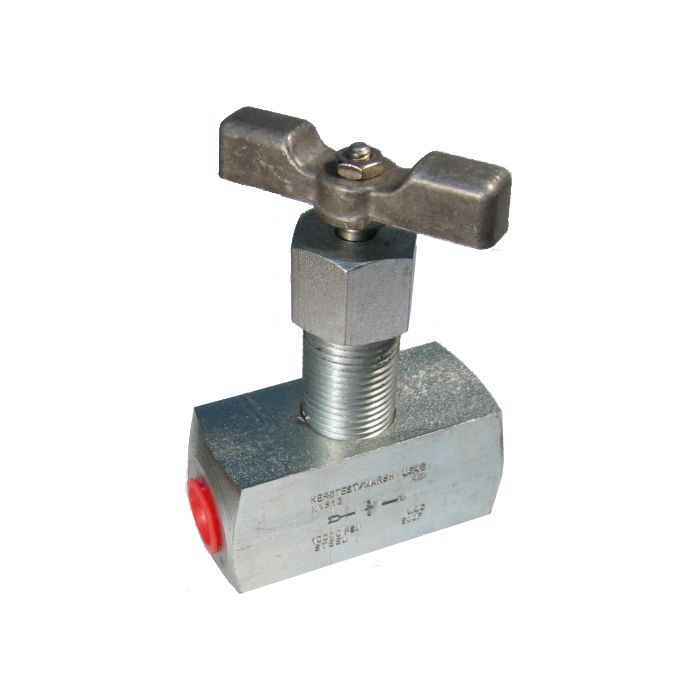

Steel Barstock Inline Needle Valves, Up To 10000 PSI
Description & Features
| Application | Controlled flow in both directions. |
| Features | Bar stock construction for reliable performance. Hard seats. Bonnet is threaded for optional panel mounting. |
| Materials | Zinc plated AISI 1213 alloy steel body & bonnet. 316 stainless steel hardened stem. Black polyethylene bonnet cap. Yellow cast aluminum handle (1/8 - 1/2 sizes). Yellow malleable iron handle (3/4-1 sizes). Grafiflex packing. |
| Maximum Operating Pressure | 10,000 PSI. (Minimum burst pressure is 20,000 PSI). |
| Temperature Range | -100°F to 500°F. |
Products
| Model Number | Size | Thread 1 | CV Factor | A | B | C | D | E | G | J | Price | Action |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
N1512 Steel Barstock Needle Valve |
1/4 |
1/4 NPT |
0.4000 |
3.06 |
1.03 |
2.06 |
2.5 |
1 |
0.38 |
0.78 |
|
|
N1513 Steel Barstock Needle Valve |
3/8 |
3/8 NPT |
0.9000 |
3.75 |
1.44 |
2.88 |
2.5 |
1.38 |
0.75 |
0.91 |
|
|
N1514 Steel Barstock Needle Valve |
1/2 |
1/2 NPT |
1.1000 |
3.75 |
1.44 |
2.88 |
2.5 |
1.38 |
0.75 |
0.91 |
|
