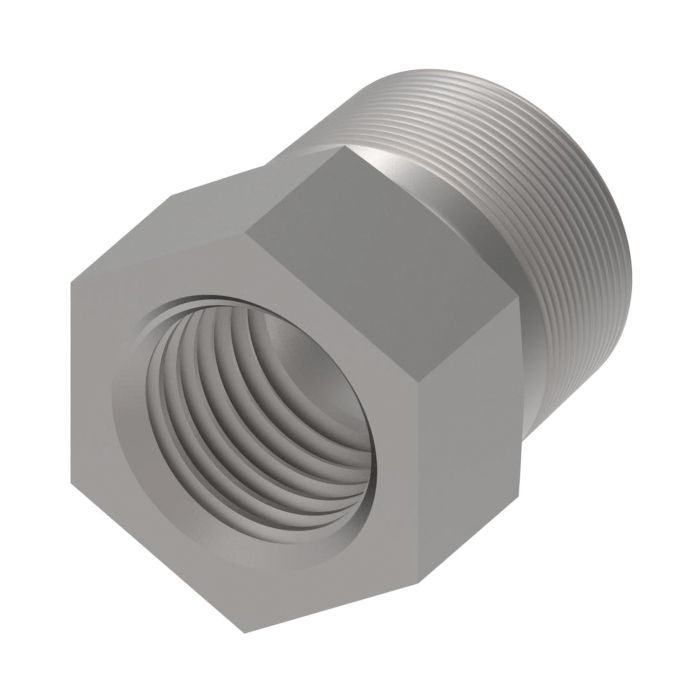

main product photo

Steel Adapter, 0.63 Braze Port To Male O-Ring Face Seal, Straight

Ask A Question

Description & Features

The Danfoss / Eaton FF1851T Series Straight Adapters ORS Braze offer precise connection solutions for Marine/Military Chemical Processing Pulp and Paper Industries Food and Beverage Processing and Off-Shore Drilling applications.

Constructed from high-grade steel this adapter ensures reliable performance in demanding environments. With a minimum working temperature of -40 degrees it maintains integrity under extreme conditions.

Designed with an ORS to Braze connection it features a 0.63-inch Tube O.D. a male O-Ring Face Seal and a 0.875-inch braze port. The adapter does not include a thread sealant but it maintains a secure fit with a 1-14 thread on the ORS end.

This specific adapter includes the FF9446-16 seal part ensuring leak-proof connections. As part of the Danfoss Power Solutions (II LLC Aeroquip) catalog it adheres to stringent quality standards.

ECCN: EAR99

Supplier Part Number: FF1851T1010S

MPN: FF1851T1010S

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
1.12 in
b Dimensions
0.38 in
Connection Type
Braze, Male ORFS
Connection Type 1
Male ORFS
Connection Type 2
Braze
Dash Size
10
Dimension Standards
SAE 520104/J1453
Dimensions
1.12 in L
f Dimensions
0.63 in
Finish
Dura-Kote™
Fitting Type
Adapter
Hex Size
1.06 in
Material
Steel
Material Construction
Carbon Steel
Operating Temperature
-40 to 250 deg F
Segment Code
C
Series
FF1851T Series
Thread Size
1-14S

Similar Products

Model Number Tube O.D. Thread Size A b Dimensions F Price Action
Steel Adapter, 0.38 Braze Port To Male O-Ring Face Seal, Straight

FF1851T0606S Steel Braze To Male ORS Adapter

0.38

11/16-16

0.83

1/4 in

0.38

Steel Adapter, 0.50 Braze Port To Male O-Ring Face Seal, Straight

FF1851T0808S Steel Braze To Male ORS Adapter

0.5

13/16-16

1.01

0.38 in

0.5

Steel Adapter, 0.75 Braze Port To Male O-Ring Face Seal, Straight

FF1851T1212S Steel Braze To Male ORS Adapter

0.75

1-3/16-12

1.21

0.38 in

0.75

Steel Adapter, 1.00 Braze Port To Male O-Ring Face Seal, Straight

FF1851T1616S Steel Braze To Male ORS Adapter

1

1-7/16-12

1.47

1/2 in

1

Product Questions & Answers (1)

Question by: Phil P on Jun 12, 2025, 12:35 PM
trying to hook up a 5/8 tube to an orfs fitting, is this the right adapter?
Answer by: Customer Support on Jun 14, 2025, 8:15 AM
For a 0.63 inch tube O.D. (5/8), this adapter matches that size and it’s built as a straight ORS (male O-Ring Face Seal) to braze connection. The braze port side is 0.875 inch, and the ORS end is 1-14 thread.
