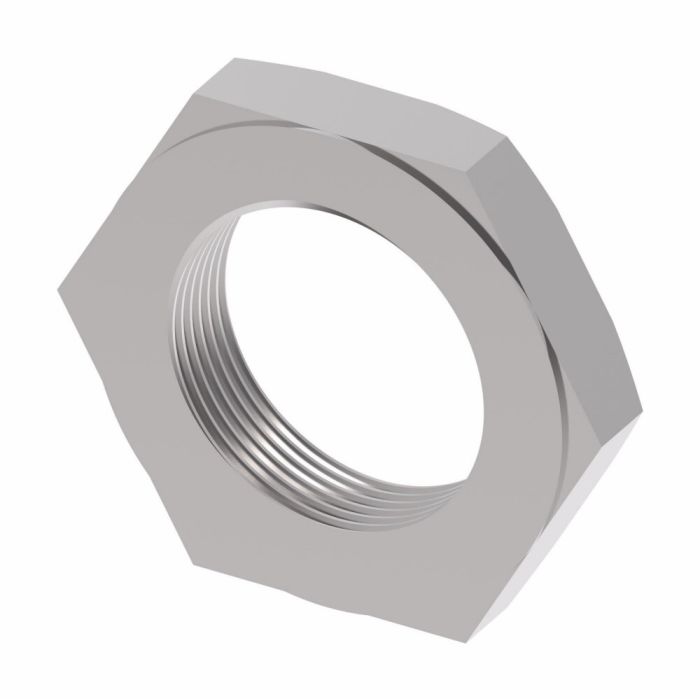

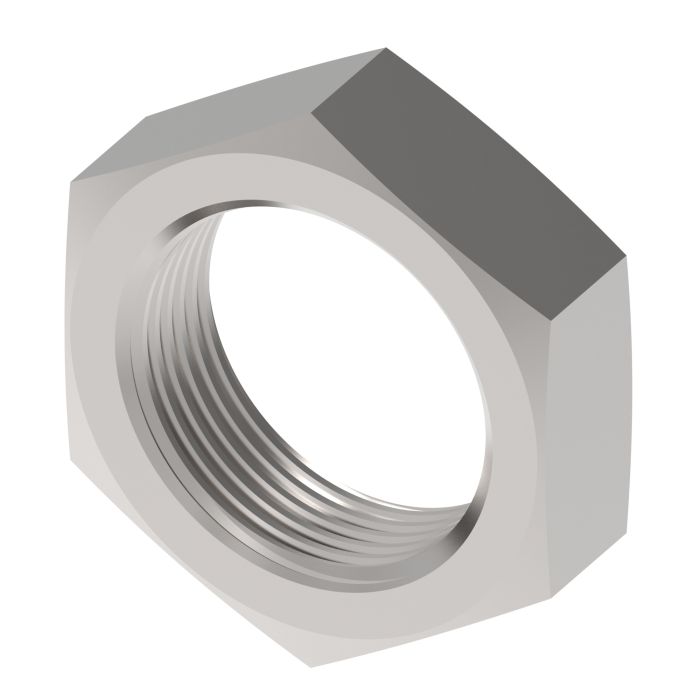

Steel Bulkhead Locknut, 9/16-18 Thread

Description & Features

Designed for use with Eaton Aeroquip 210212 Series fittings, this Steel Bulkhead Locknut, 9/16-18 Thread secures bulkhead-mounted hydraulic connections in panel or wall installations. With a 9/16-18 thread and a compact profile, A dimension 0.27 in., B dimension 0.81 in., it is suited for applications where space constraints require a low-profile locking solution.

Cataloged under Eaton Aeroquip part number C1BB84, this locknut is a genuine spare part intended to maintain the integrity of existing bulkhead fitting assemblies. Steel construction provides the durability expected in demanding hydraulic environments.

SKU: 210212-6S

Supplier Part Number (MPN): 210212-6S

Alternate Part Numbers: C1BB84, MI-00317856, MINO-00015F64775

Specifications

A 0.27	Alternate Part Numbers Alternate Part Number C1BB84, Alternate Part Number MI-00317856, Alternate Part Number MINO-00015F64775, Alternate Part Number MINO-00402X01913	B 0.81	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	Finish None	Materials Carbon steel	Series 210212	Supplier Part Number 210212-6S	Thread 2 9/16-18	Thread Sealant No	Tube O.D. 0.38	Tube O.D. 0.38	Type Locknut	Product Weight 0.02 lbs

Similar Products

Model Number	Tube O.D.	Thread 2	A	B
210212-5S Steel Bulkhead Locknut	0.31	1/2-20	0.25	0.75
210212-6S Steel Bulkhead Locknut	0.38	9/16-18	0.27	0.81
210212-8S Steel Bulkhead Locknut	0.5	3/4-16	0.31	1
0306-32 Steel Bulkhead Locknut	2	2-1/2 - 12	0.22	0.63
210212-10S Steel Bulkhead Locknut	0.63	7/8-14	0.36	1.12
210212-12S Steel Bulkhead Locknut	0.75	1-1/16 - 12	0.41	1.38
210212-4S Steel Bulkhead Locknut	0.25	7/16-20	0.25	0.69
