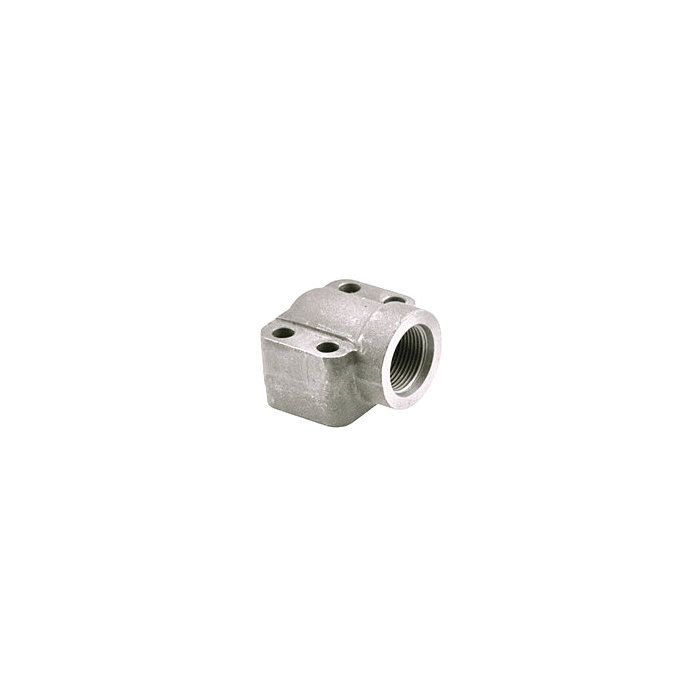

Steel 4-Bolt Flange Adapter, 1.50 Inch Code 61 Flange, O-Ring Half To 1.50 Inch Female NPT, 90 deg Elbow

Description & Features

Designed for 90-degree directional changes in hydraulic lines, this Steel 4-Bolt Flange Adapter, 1.50 Inch Code 61 Flange, O-Ring Half To 1.50 Inch Female NPT, 90 deg Elbow connects a SAE Code 61 four-bolt flange port to a 1-1/2-11-1/2 female NPT thread. Manufactured in steel by Anchor Fluid Power, it is suited for medium- to high-pressure hydraulic systems where a compact 90-degree transition is required.

The adapter ships complete with mounting bolts, lock washers, and a Buna-N O-ring, providing everything needed for a sealed flange connection without sourcing additional hardware. The 1.5-inch pad size and 1.5-inch pipe size make it a straightforward match for equally sized Code 61 flange ports and NPT-threaded components.

SKU: W168-24-24U

Supplier Part Number (MPN): W168-24-24U

Alternate Part Numbers: C1ER62, W168-24-24U-HSC

Specifications

A 2.56	C 1.41	D 1.75	Brand Anchor Fluid Power	Brand Anchor Fluid Power	Pack Size 1.00	UOM EA	H 1.5 in	Includes Mounting bolts, lock washers and Buna-N O-Ring	K 0.53	M 2.12	Pad Size 1.50	Pipe Size 1.50	Supplier Part Number W168-24-24U	Thread 1 1-1/2-11-1/2	Thread Sealant No	Alternate Part Numbers Alternate Part Number C1ER62, Alternate Part Number W168-24-24U-HSC	Product Weight 4.71 lbs

Similar Products

Model Number	Includes	Pipe Size	Pad Size	A	C	D	Thread 1	H	M	K	Price	Action
W168-24-24U Steel Code 61 To Female NPT 90 Elbow	Mounting bolts, lock washers and Buna-N O-Ring	1.5	1.5	2.56	1.406	1.75	1-1/2-11-1/2	1.5 in	2.12	0.531

Product Questions & Answers (2)

Question by: Johnny G on Sep 20, 2025, 2:16 PM

Does this thing come with everything I need to bolt it up, or do I gotta track down the hardware separate?

Answer by: Customer Support on Sep 22, 2025, 6:06 AM

It ships with the mounting bolts, lock washers, and a Buna-N O-ring all included. Nothing extra to source before you can make the connection. The flange side is SAE Code 61 four-bolt, and the other end is a 1-1/2 inch female NPT thread, so as long as your port and pipe sizes match up, you're ready to go straight out of the box.

Question by: Terry W on Nov 14, 2025, 8:23 PM

got a 1-1/2 Code 61 4-bolt port and need to turn 90 degrees into female NPT. is this the right adapter?

Answer by: Customer Support on Nov 16, 2025, 6:27 PM

For that hookup, it matches up clean. One end is a 1.50 inch SAE Code 61 four-bolt flange pad with an O-ring seal, and the other end is a 1-1/2-11-1/2 female NPT thread, built as a 90 degree elbow.
