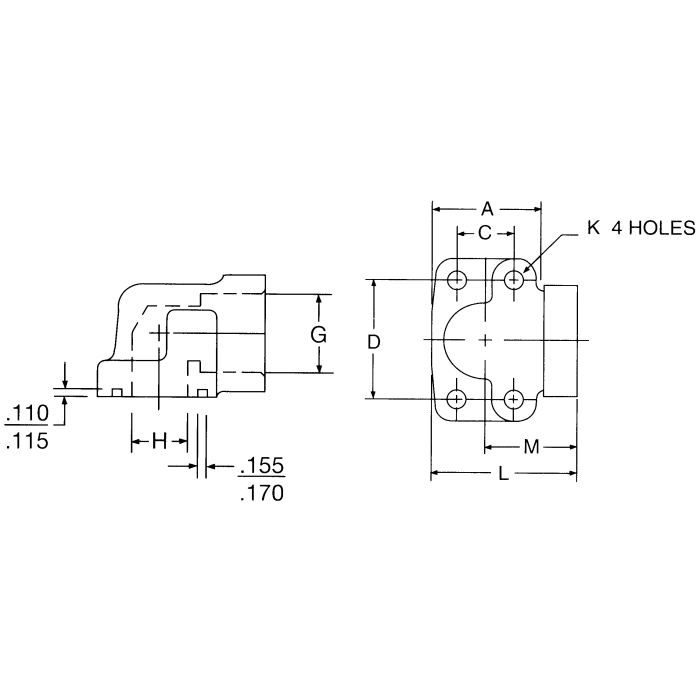

Steel 4-Bolt Flange Adapter, Inch Code 61 Flange, O-Ring Half To Inch Female NPT, 90 deg Elbow
Description & Features
Products
| Model Number | Includes | Pipe Size | Pad Size | A | C | D | Thread 1 | H | M | K | Price | Action |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
W168-24-24U Steel Code 61 To Female NPT 90 Elbow |
Mounting bolts, lock washers and Buna-N O-Ring |
1.5 |
1.5 |
2.56 |
1.406 |
1.75 |
1-1/2-11-1/2 |
1.5 in |
2.12 |
0.531 |
|
Product Questions & Answers (1)
Question by: Troy P on Dec 13, 2025, 2:25 PM
Will this adapter handle high-pressure situations in hydraulic systems, or should I look for something else?
Answer by: Customer Support on Dec 14, 2025, 4:44 PM
Designed for high-pressure hydraulic circuits, this adapter provides a reliable connection between Code 61 flange and female NPT thread interfaces.
