Steel 4-Bolt Flange Adapter, 1.50 Inch Code 61 Flange, O-Ring Half To 1.50 Inch Female NPT, Straight

Ask A Question

Description & Features

This steel 4-bolt flange adapter features a 1.50 inch Code 61 flange, O-ring half to 1.50 inch female NPT, in a straight configuration. Includes mounting bolts, lock washers, and a Buna-N O-ring.

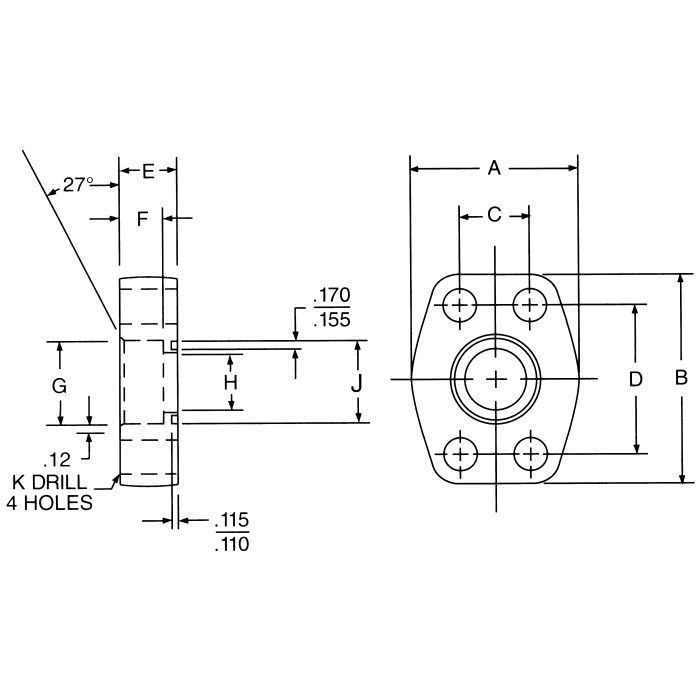

The Anchor Fluid Power flange adapter has dimensions of A: 3.25, B: 3.688, C: 1.406, D: 2.75, E: 1.19, F: 0.75, G: 1.922, H: 1.5 in, and K: 0.531.

SKU: W4-24-24U

Supplier Part Number (MPN): W4-24-24U

Alternate Part Numbers: C1DS78

Specifications

A
3.25
B
3.69
C
1.41
D
2.75
E
1.19
Brand
Anchor Fluid Power
Brand
Anchor Fluid Power
Pack Size
1.00
UOM
EA
F
0.75
G
1.92
H
1.5 in
Includes
Mounting bolts, lock washers and Buna-N O-Ring
K
0.53
Pad Size
1.50
Pipe Size
1.50
Supplier Part Number
W4-24-24U
Thread Sealant
No
Alternate Part Numbers
Alternate Part Number C1DS78
Product Weight
2.96 lbs

Similar Products

Model Number Includes Pipe Size Pad Size A B C D E F G H K Price Action
Steel 4-Bolt Flange Adapter, 1.25 Inch Code 61 Flange, O-Ring Half To 1.25 Inch Female NPT, Straight

W4-20-20 Steel Code 61 To Female NPT Adapter

None

1.25

1.25

2.875

3.125

1.188

2.313

0.94

0.69

1.672

1.25 in

0.469

Steel 4-Bolt Flange Adapter, 1.50 Inch Code 61 Flange, O-Ring Half To 1.50 Inch Female NPT, Straight

W4-24-24U Steel Code 61 To Female NPT Adapter

Mounting bolts, lock washers and Buna-N O-Ring

1.5

1.5

3.25

3.688

1.406

2.75

1.19

0.75

1.922

1.5 in

0.531

Steel 4-Bolt Flange Adapter, 2.00 Inch Code 61 Flange, O-Ring Half To 2.00 Inch Female NPT, Straight

W4-32-32U Steel Code 61 To Female NPT Adapter

Mounting bolts, lock washers and Buna-N O-Ring

2

2

3.813

4

1.688

3.063

1.38

0.875

2.406

2 in

0.531

Product Questions & Answers (2)

Question by: Wayne H on May 12, 2025, 6:31 AM
What all comes with this flange adapter when it ships, or do I need to track down hardware separate?
Answer by: Customer Support on May 13, 2025, 4:54 PM
Hardware's included right in the box. You get the mounting bolts, lock washers, and a Buna-N O-ring, so you're not scrambling for fasteners before you can get it installed.
Question by: Sheila M on Apr 21, 2025, 7:54 PM
Will this flange adapter work with standard NPT fittings?
Answer by: Customer Support on Apr 23, 2025, 5:29 PM
Yes, this steel 4-bolt flange adapter is designed with a 1.50 inch female NPT, which should work with standard NPT fittings of the same size.
