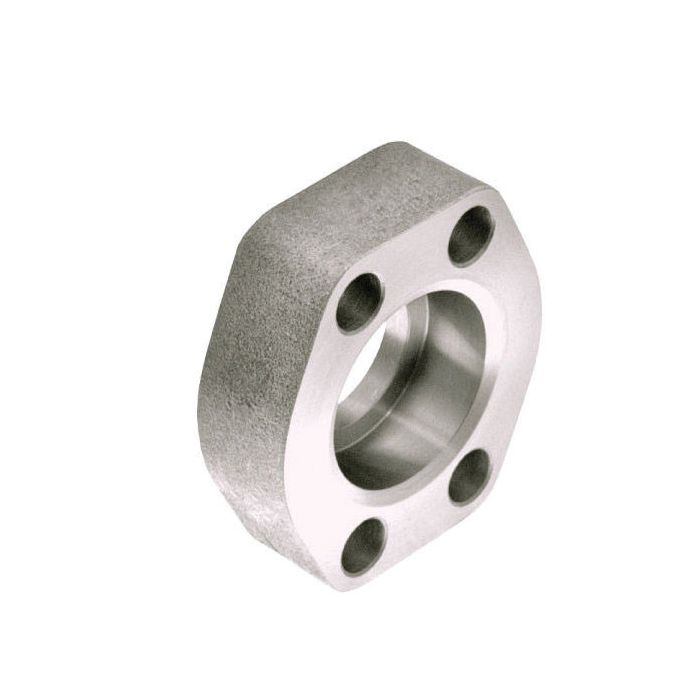

Steel 4-Bolt Flange Adapter, 3.00 Inch Code 61 Flange, O-Ring Half To 3.00 Inch Female NPT, Straight

Ask A Question

Description & Features

This straight steel 4-Bolt Flange Adapter features a 3.00 Inch Code 61 Flange, O-Ring half to 3.00 Inch Female NPT.

The Anchor Fluid Power flange, catalog number C1JQ98, includes mounting bolts, lock washers, and a Buna-N O-Ring. It has a pad size of 3 and an H dimension of 3.002 inches.

SKU: W4-48-48USH3.0

Supplier Part Number (MPN): W4-48-48USH3.0

Alternate Part Numbers: C1JQ98

Specifications

Brand
ANCHOR FLUID POWER

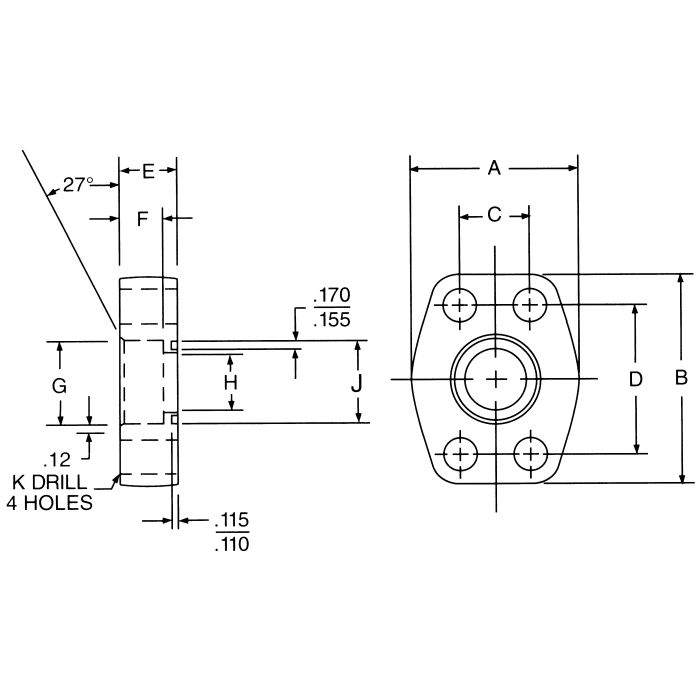

c Dimensions
2.438 in
Connection Size 1
3 in
Connection Size 2
3 in
Connection Type
Flanged, FNPT
Connection Type 1
Female NPT
Connection Type 2
SAE Code 61 Flange
d Dimensions
4.188 in
Dimensions
5.313 in H x 5.156 in W x 2.12 in D
f Dimensions
1-1/4 in
Fitting Type
Adapter
g Dimensions
3.615 in
h Dimensions
3.002 in
k Dimensions
0.656 in
Material
Carbon Steel
Material Construction
Carbon Steel
Maximum Operating Pressure
500 psi
Thread Size
5/8-11

Product Questions & Answers (1)

Question by: Jimmy W on Jan 26, 2026, 1:04 PM
What size bolts does this use to mount up?
Answer by: Customer Support on Jan 27, 2026, 8:38 PM
Mounting bolts and lock washers are included with the flange adapter, so you don't have to source them separately.
