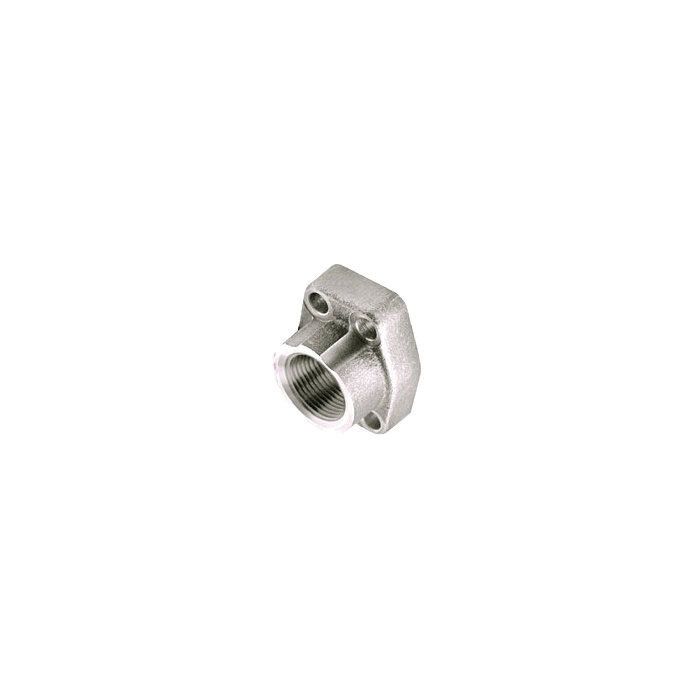

Steel 4-Bolt Flange Adapter, 1.00 Inch Code 61 Flange, O-Ring Half To 1.00 Inch Female NPT, Straight with Counterbore

Description & Features

The Steel 4-Bolt Flange Adapter 1.00 Inch Code 61 Flange O-Ring Half To 1.00 Inch Female NPT Straight with Counterbore by Anchor Fluid Power is engineered for seamless integration in industrial fluid systems. Crafted from high-quality steel this adapter ensures durability and reliability in high-pressure environments up to 3000 PSI.

Featuring a 1.00 inch Code 61 flange and a 1.00 inch female NPT connection it is designed to facilitate efficient fluid transfer. The inclusion of mounting bolts lock washers and a Buna-N O-ring enhances its secure and leak-free performance.

The straight configuration with counterbore enables precise alignment and installation making it a critical component in various industrial applications. This adapter is tailored for systems requiring robust and efficient fluid connectivity and is optimized for performance in demanding conditions.

SKU: W43-16-16U

Supplier Part Number (MPN): W43-16-16U

Alternate Part Numbers: C1DS85, C1JD96, W43-16-16U-CB

Specifications

A 2.31	B 2.75	C 1.03	D 2.06	E 1.38	Brand Anchor Fluid Power	Brand Anchor Fluid Power	Pack Size 1.00	UOM EA	F 0.97	H 1 in	Includes Mounting bolts, lock washers and Buna-N O-Ring	K 0.41	Pad Size 1	Pipe Size 1	Supplier Part Number W43-16-16U	Thread 1 1-11-1/2	Thread Sealant No	Alternate Part Numbers Alternate Part Number C1DS85, Alternate Part Number C1JD96, Alternate Part Number W43-16-16U-CB	Product Weight 1.35 lbs

Similar Products

Model Number	Includes	Pipe Size	Pad Size	A	B	C	D	E	F	Thread 1	H	K
W43-12-12U Steel Code 61 To Female NPT Adapter	Mounting bolts, lock washers and Buna-N O-Ring	0.75	0.75	2.06	2.56	0.875	1.875	1.25	0.84	3/4-14	0.75 in	0.406
W43-24-24U Steel Code 61 To Female NPT Adapter	Mounting bolts, lock washers and Buna-N O-Ring	1.5	1.5	3.25	3.69	1.406	2.75	1.62	1.09	1-1/2-11-1/2	1.5 in	0.531
W43-20-20U Steel Code 61 To Female NPT Adapter	Mounting bolts, lock washers and Buna-N O-Ring	1.25	1.25	2.88	3.12	1.188	2.312	1.5	1.03	1-1/4-11-1/2	1.25 in	0.469
W43-32-32U Steel Code 61 To Female NPT Adapter	Mounting bolts, lock washers and Buna-N O-Ring	2	2	3.81	4	1.688	3.062	1.62	1.09	2-11-1/2	2 in	0.531

Product Questions & Answers (2)

Question by: Debbie W on Oct 19, 2025, 12:19 PM

What pressure is this flange adapter rated for?

Answer by: Customer Support on Oct 20, 2025, 7:02 PM

It's good for systems running up to 3000 PSI.

Question by: Ray A on Apr 14, 2025, 10:54 AM

does this thing come with the o-ring and bolts, or do i gotta source those separate?

Answer by: Customer Support on Apr 15, 2025, 4:46 PM

Everything you need to make the connection comes in the box. Mounting bolts, lock washers, and a Buna-N O-ring are all included with the adapter, so you're not hunting down hardware before you can get it installed.
